SMT equipment manufacture for dozen years ,provide SMT solutions world widely

ABOUT QIHE

QiHe Electrical Technology Co.,LTD is a high-tech company,which located in Economic Development Zone, Yueqing,China. We professional designing and producing  all kinds of , pick and place machine,reflow oven,stencil printer, We also providing SMT solutions .Our Products playing a leading role in SMT industry. We have set a long lasting cooperation and partnership with global customers .Warmly welcome you to visit our company for friendship and cooperation.

pnp machine,chip mounter,smt line,pick and place machine,pick and place robot,desktop pick and place machine,used pick and place machine,small pick and place machine,chip shooter,smt equipment,smt machine,openpnp,pcb printer,reflow oven,smt pick and place machine, stock in eu,feeder,smt assembly,pcb assembly,smd chip shooter,tvm802a,tvm802b,tvm802ax,tvm802bx,tvm802c,tvm802d, tvm802a s,tvm802b s,ql41,qm41,tvm925,tvm926,qm61,qm81,qm10 qhsmt
pnp machine,chip mounter,smt line,pick and place machine,pick and place robot,desktop pick and place machine,used pick and place machine,small pick and place machine,chip shooter,smt equipment,smt machine,openpnp,pcb printer,reflow oven,smt pick and place machine, stock in eu,feeder,smt assembly,pcb assembly,smd chip shooter,tvm802a,tvm802b,tvm802ax,tvm802bx,tvm802c,tvm802d, tvm802a s,tvm802b s,ql41,qm41,tvm925,tvm926,qm61,qm81,qm10 qhsmt

Our products

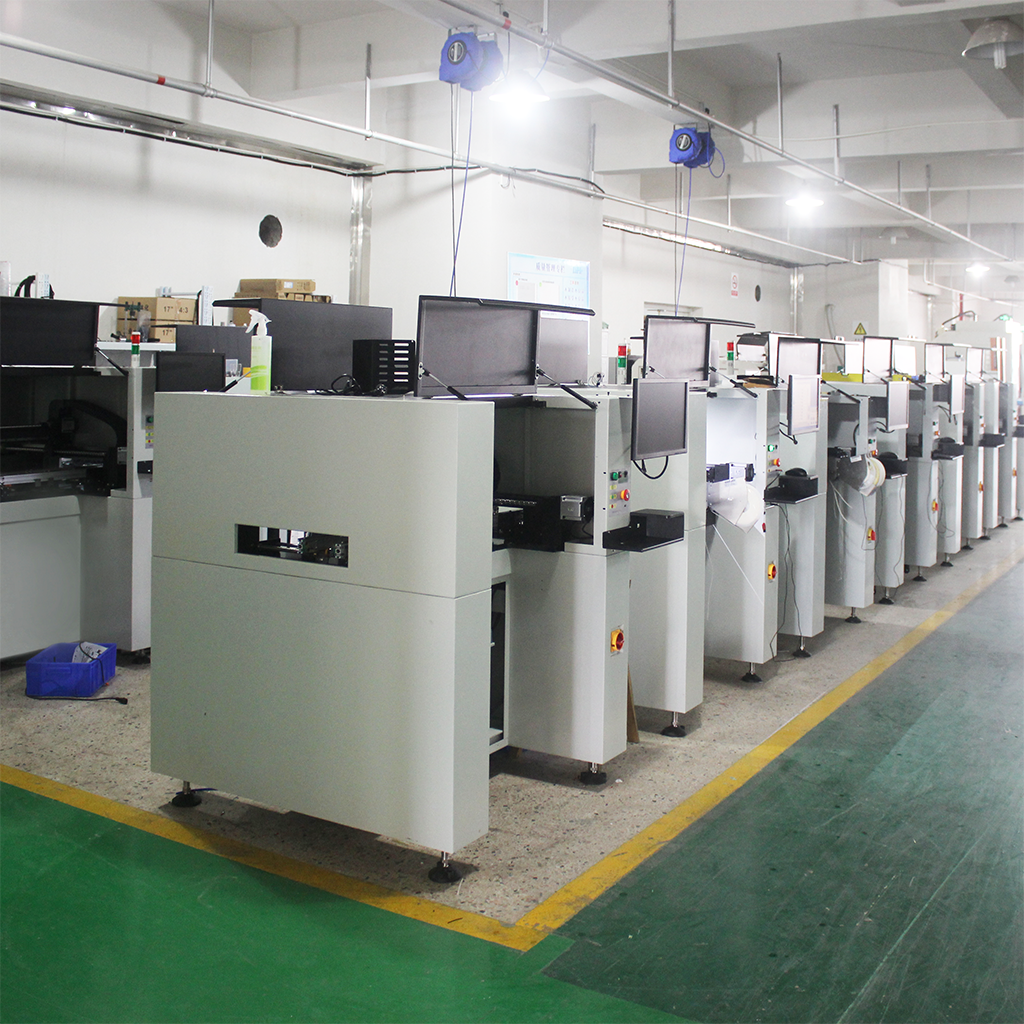

We do more than 10 years experience in original designing and producing small desktop PnP machine,benchtop PnP machine and vertical type PnP machine. All of them are widely applied for all levels of PCB and LED assembly  . https://www.qhsmt.com/porducts/

Our services

Our business core scope is factories in SMT industry . Customer managers provide professional response for you anytime . Appropriate machines, best quotations,safety&fast delivery ways.
https://www.facebook.com/Qihesmt/

Our support

Qihe team provides software technical for smt setup, and as well as share technical ideas with partners.Reliable and trustworthy engineers can offer you the best way to solve your problems when using machines.
https://www.qhsmt.com/support/

What is smt equipment used for?

Surface mount technology is a part of the electronic assembly that deals with the mounting of electronic components to the surface of a PCB. Electronic components mounted this way are called surface-mounted devices (SMD). SMT was developed to minimize manufacturing costs while making efficient use of board space.Qihe SMT company develops and produces all kinds of SMT equipment suitable for world wide market, including and other products.Small desktop pick and place machine TVM802A,TVM802B,TVM802AX,TVM802BX series suitable for beginners, for hobbiest or low vol usag.
Advanced level 4-head LED strip placement QL41 led machines and with rail universal series TVM925S,TVM926S,
Fully automatic 6-10-head placement QM61,QM62,QM81,QM10,machines, which are suitable for high volume mass production in factories.

What is basic smt process

There are mainly three steps in SMT assembly line process flow: solder paste printing, components placement and reflow soldering.

1. Solder Paste Printing
Its function in SMT line process is to print the solder-free paste on the pads of the PCB to prepare for the soldering of the components. The equipment used is a screen printing machine, located at the forefront of the SMT production line.

2. Components Placement
Its function is to accurately install the surface mount components on the fixed position of the PCB. The equipment used is a placement machine, located behind the screen printing machine in the SMT production line.

3. Reflow Soldering
Its function in SMT manufacturing line is to melt the solder paste so that the surface mount components and the PCB board are firmly bonded together. The equipment used is a reflow oven, located behind the placement machine in the fully automatic SMT production line.

What is smt assembly line?

With the development of technology, future electronic products will be lighter, smaller and thinner. Traditional assembly technology can no longer meet the requirements of high-precision and high-density assembly. A new type of PCB assembly technology-SMT (Surface Mount Technology) has emerged. SMT Assembly is the use of automated machines to assemble electronic components on the surface of the circuit board. Its density, high speed, standardization and other characteristics occupies an absolute advantage in the field of circuit assembly technology. In addition, SMT assembly has a wide range of uses.

How to choose the right smt pick and place machine?

SMT Pick and place machine can execute virtually all smd material handling operations both cost-efficiently and effectively — With several designs and configurations available in the market, it can be challenging to pick one that suits your operational needs. To help you make the right decision, some factors and features you should look out for when purchasing a pick and place robot.The most important thing is the operating system, then the hardware configuration, the types of components supported, and the speed of operation, the accuracy of placement, and the smt setup cost of the entire smt line .Qihe smt pick&place machine is a professional operating system independently developed. It has more than ten years of user experience, combined with the algorithm improvement of world-renowned colleges, and the most advanced flying camera and motion system. It is your best choice. The system is friendly for beginners and professionals.
