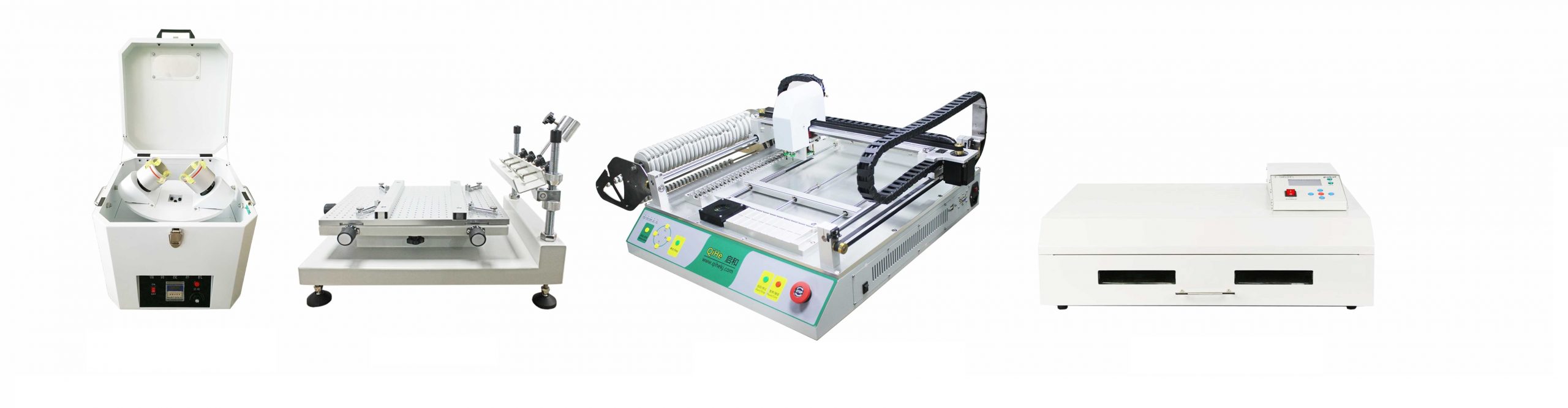

TVM802 desktop SMT production line Standard edition

We can provide low volume SMT line for small batch production for the start ups & R &D . 2 head Pick and place machines available. There are two models(29 slots or 46 slots) for you to choose from . Desktop SMT line also including automatic solder paste mixer,manual printer and tabletop reflow oven .Can handling smallest package size:0402 inch and up to largest size:TQFP100.

pnp machine,chip mounter,smt line,pick and place machine,pick and place robot,desktop pick and place machine,used pick and place machine,small pick and place machine,chip shooter,smt equipment,smt machine,openpnp,pcb printer,reflow oven,smt pick and place machine, stock in eu,feeder,smt assembly,pcb assembly,smd chip shooter,tvm802a,tvm802b,tvm802ax,tvm802bx,tvm802c,tvm802d, tvm802a s,tvm802b s,ql41,qm41,tvm925,tvm926,qm61,qm81,qm10 qhsmt

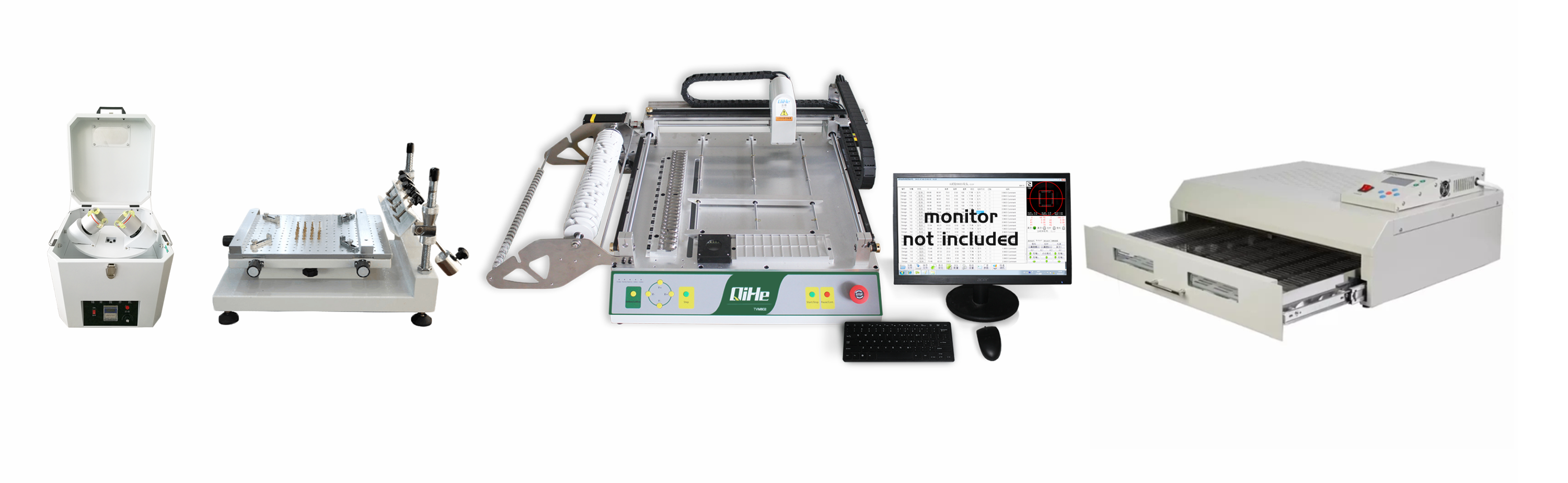

TVM802 desktop SMT production line Deluxe edition

We can provide low volume SMT line for small batch production for the start ups & R &D . 2 head Pick and place machines available. There are two models(29 slots or 46 slots) for you to choose from . Desktop SMT line also including automatic solder paste mixer,manual printer and tabletop reflow oven .Can handling smallest package size:0402 inch and up to largest size:TQFP100.

pnp machine,chip mounter,smt line,pick and place machine,pick and place robot,desktop pick and place machine,used pick and place machine,small pick and place machine,chip shooter,smt equipment,smt machine,openpnp,pcb printer,reflow oven,smt pick and place machine, stock in eu,feeder,smt assembly,pcb assembly,smd chip shooter,tvm802a,tvm802b,tvm802ax,tvm802bx,tvm802c,tvm802d, tvm802a s,tvm802b s,ql41,qm41,tvm925,tvm926,qm61,qm81,qm10 qhsmt

WHAT IS SMT ASSEMBLY LINE?

With the development of technology, future electronic products will be lighter, smaller and thinner. Traditional assembly technology can no longer meet the requirements of high-precision and high-density assembly. A new type of PCB assembly technology-SMT (Surface Mount Technology) has emerged. SMT Assembly is the use of automated machines to assemble electronic components on the surface of the circuit board. Its density, high speed, standardization and other characteristics occupies an absolute advantage in the field of circuit assembly technology. In addition, SMT assembly has a wide range of uses.

WHAT IS SMT MACHINE?

SMT (Surface Mounted Technology) is a comprehensive system engineering technology, which covers substrates, design, equipment, components, assembly processes, production accessories and management. When it comes to SMT machines, the automatic SMT production line requires automatic loading and unloading machine, automatic solder paste printing machine, placement machine, reflow soldering machine, AOI inspection equipment, connecting table, etc. For these SMT assembly line equipment, Qihe smt can offer you machines in prototype SMT line, small SMT production line, mass production SMT line at low SMT line cost. Contact us now if you are interested.

WHAT IS SMT PROCESS ?

There are mainly three steps in SMT assembly line process flow: solder paste printing, components placement and reflow soldering.

1. Solder Paste Printing

Its function in SMT line process is to print the solder-free paste on the pads of the PCB to prepare for the soldering of the components. The equipment used is a screen printing machine, located at the forefront of the SMT production line.

2. Components Placement

Its function is to accurately install the surface mount components on the fixed position of the PCB. The equipment used is a placement machine, located behind the screen printing machine in the SMT production line.

3. Reflow Soldering

Its function in SMT manufacturing line is to melt the solder paste so that the surface mount components and the PCB board are firmly bonded together. The equipment used is a reflow oven, located behind the placement machine in the fully automatic SMT production line.
