This time we bring you a new phase of SMT equipment and customer sharing cases：
The company is located in Jiangsu Province, China is a state-recognized high-level military enterprises are mainly engaged in the scope of operations include microwave integrated circuits, electronic components, electronic products, communications systems equipment, computer hardware and software research, development, production, sales and maintenance services; systems integration, network engineering, electronic systems design, development, Construction, technical consulting, technical services, technology transfer and engineering installation and commissioning and equipment installation and commissioning of the above projects.

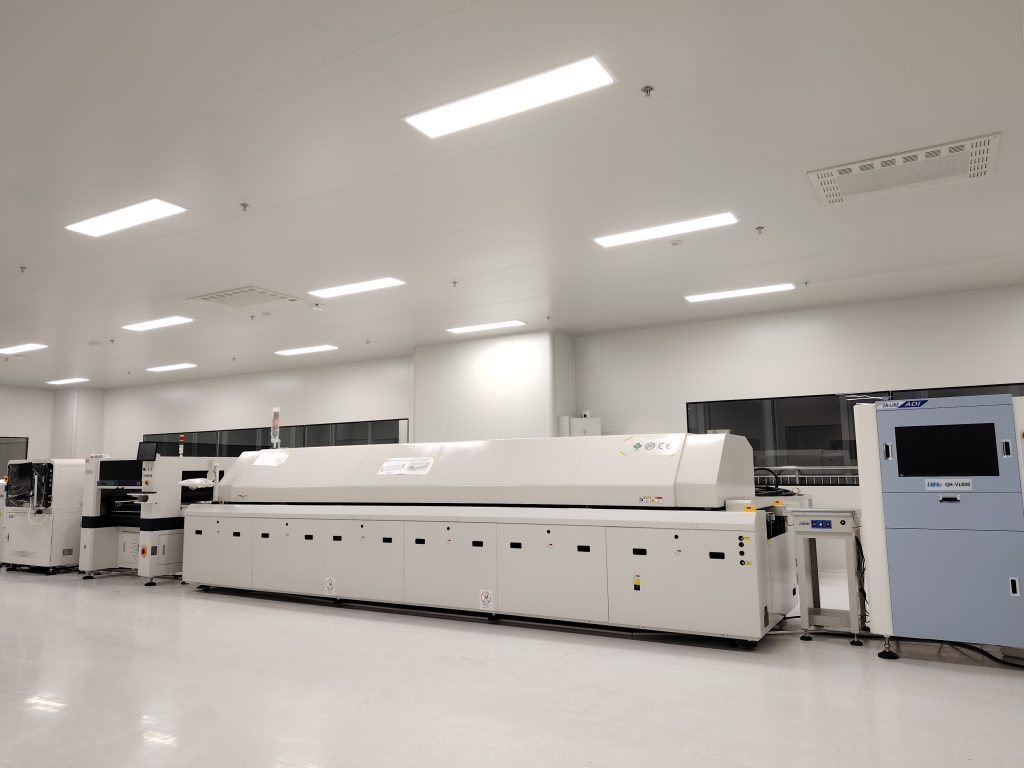

Machine ：Fully automatic PCB loader machine, Automatic Printing Machine, Eight-head visual pick and place machine , and multi-temperature zone reflow soldering equipment built by the customer.

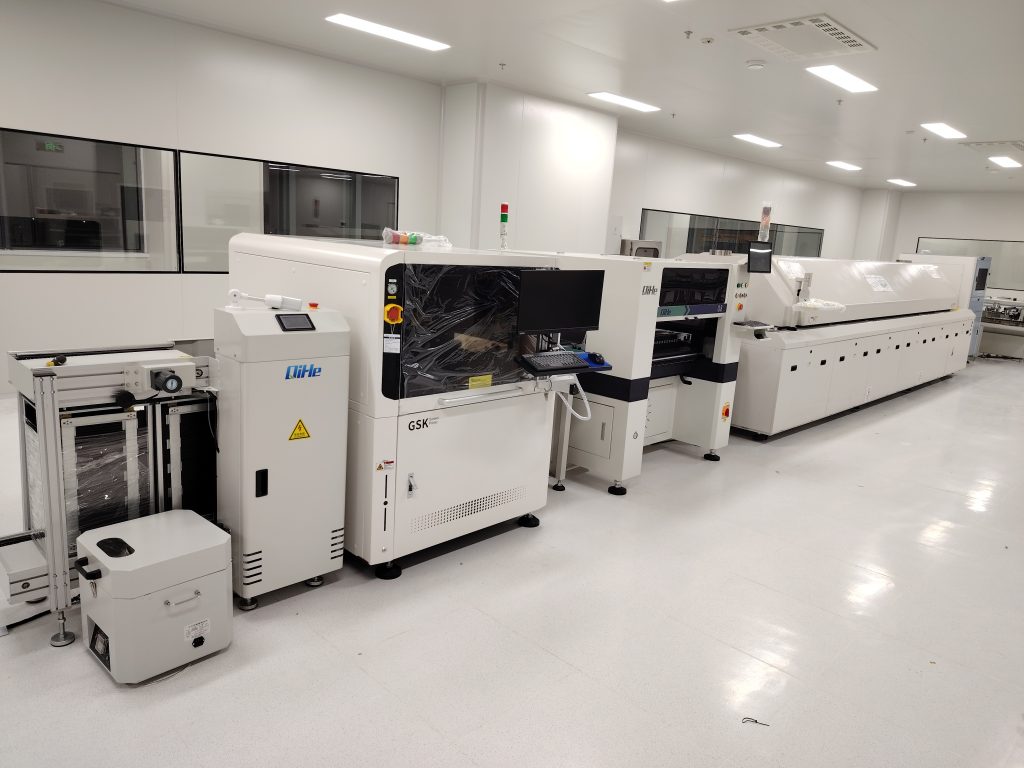

SMT QM81 produce line :
Solder paste mix machine: QH3502 :
The solder paste mixer is used to mix the various ingredients in the solder paste evenly, so that the solder paste can restore good properties, such as appropriate viscosity and thixotropy, to ensure that the solder paste can be accurately printed on the PCB board in SMT production, laying the foundation for high-quality welding.
Fully automatic PCB loader machine: QUL350 :
The function of the PCB loading machine is to automatically transport the PCB boards one by one to the designated position of the SMT production line, realize the automation of PCB board loading, improve production efficiency, reduce the error and labor intensity of manual loading, and ensure that the PCB boards enter the subsequent processing flow accurately and stably.
Automatic Printing Machine: R5:
The role of the automatic printer in the SMT production line is to accurately print solder paste or glue on the designated position of the PCB board. It realizes the automation of the printing process through precise mechanical transmission and control systems, ensures the accuracy and consistency of printing, and improves production efficiency and product quality.
0.6 Conveyor ：QJB060
The function of the docking station is to connect different equipment in the SMT production line, and to play the role of buffering, temporarily storing and transmitting PCB boards, so that the production rhythm between various equipment can be coordinated and the smooth operation of the production line can be ensured.
Eight-head visual pick and place machine : QM81
The placement machine is a key equipment in the SMT production line. Its main function is to accurately and quickly place surface mount components on the corresponding positions of the PCB board printed with solder paste, so as to achieve precise assembly of electronic components and PCB boards.
Reflow oven ：QRF2030
The placement machine is a key equipment in the SMT production line. Its main function is to accurately and quickly place surface mount components on the corresponding positions of the PCB board printed with solder paste, so as to achieve precise assembly of electronic components and PCB boards.
AOI: QH-VL800
The equipment used to detect the quality of component placement and welding on PCB boards on SMT production lines. It collects images through optical cameras and compares and analyzes them with preset standard images. It can automatically detect various defects such as component missing, offset, polarity error, welding short circuit, cold solder joint, etc., thereby improving product quality and reducing defective product rate.
