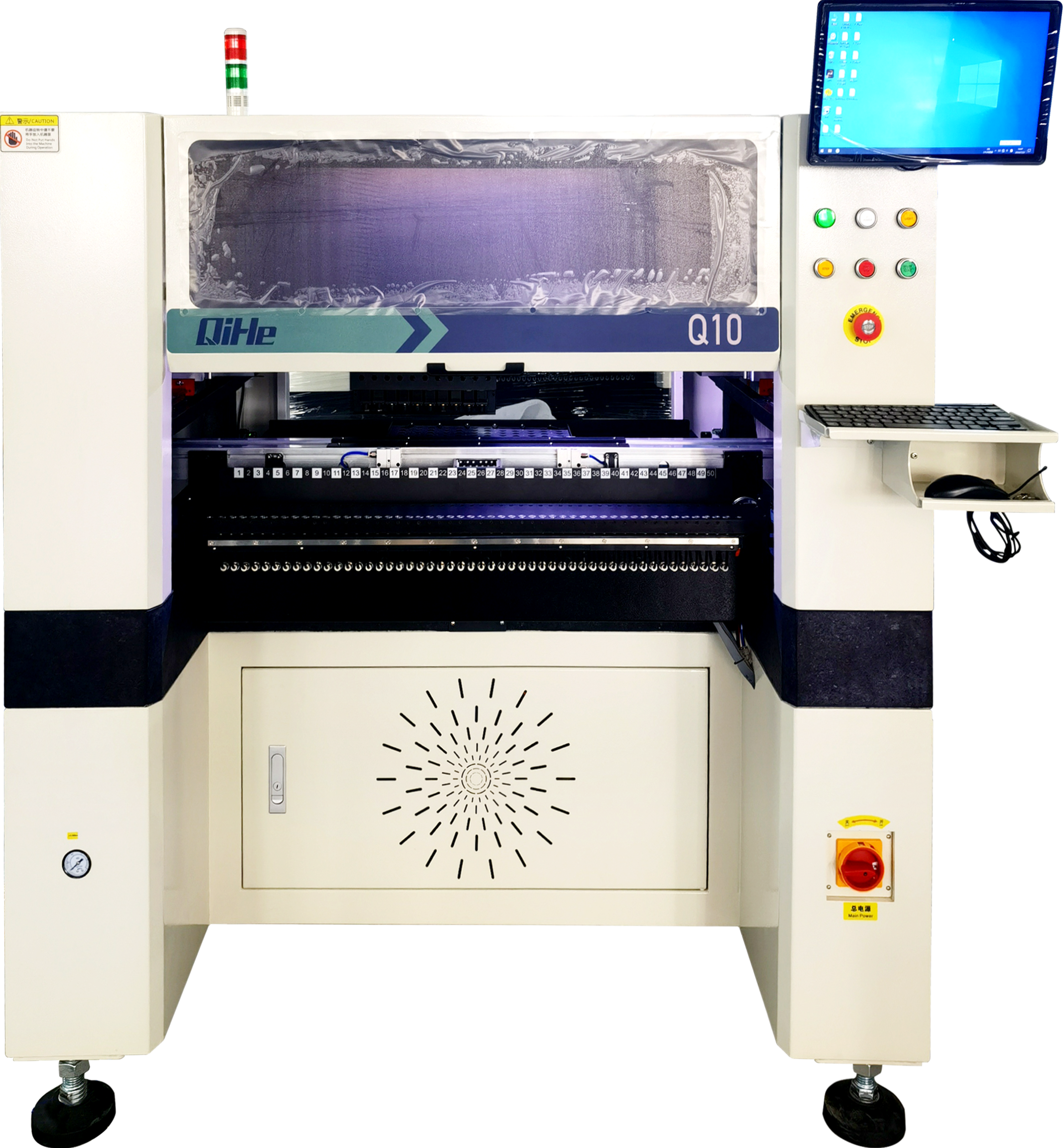

Revolutionize Your SMT Line: Meet the Q10 Pick and Place Machine

In the fast-paced world of electronics manufacturing, precision, speed, and flexibility are not just advantages—they are necessities. If you’re battling with accuracy issues, slow changeover times, or the high cost of imported equipment, there’s a smarter solution. Discover the Qihe Q10+ Pick and Place Machine, an innovative platform designed to deliver exceptional performance and intelligent automation without the premium price tag.

Tired of Compromises? The Q10+ is Designed Differently.

Many SMT manufacturers face a difficult choice: invest in prohibitively expensive high-end machinery or struggle with the limitations of basic equipment. The Qihe Q10+ shatters this compromise by integrating robust hardware with sophisticated software, offering a feature set that competes with global brands.

1. Unshakable Foundation: The 550KG Granite Marble Platform
   Precision starts with stability. Unlike machines with traditional aluminum bases, the Q10+ is built on a solid 550KG granite marble platform. This massive foundation absorbs vibrations and prevents shifting during high-speed operation, ensuring consistent, micron-level accuracy and significantly extending the lifespan of critical components like screw guide rails.
2. Unmatched Synchronization: Y-Axis Dual Servo Control System
   For flawless, high-speed movement, the Q10+ employs a Y-axis dual servo control system. The two motors work in perfect harmony, achieving extremely high synchronization accuracy and allowing for real-time adjustments. This results in exceptional motion stability under various workloads, eliminating vibration and guaranteeing smooth, reliable operation with characteristics of high precision, high efficiency, and strong adaptability.
3. Intelligent and Adaptive: Smart Software at Your Service
   The Q10+ is more than just a machine; it’s a smart manufacturing partner.

· AI-Powered Optimization: Our intelligent system automatically arranges the optimal placement order and sequence based on your PCB design. It logically plans the pick-and-place path, allocates the correct nozzles for each component, and creates the most efficient cycle sequence for maximum throughput.
· Vast Component Library: Get up and running in record time. The Q10+ comes with an extensive built-in component library, rivaling those found in imported machines. It includes size data, shape features, and pre-configured settings for graphic recognition, nozzle allocation, and feeder matching, making programming quick and effortless.
· Rapid “Flying” Vision Recognition: Equipped with a high-pixel, high-precision “flying” camera, the Q10+ can identify and place complex components at lightning speed. It excels at handling multi-pin large chips, with a capability of up to 176 pins, ensuring accuracy for even the most demanding designs.

Key Features for Enhanced Productivity:

· 10 Independent Servo Z-Axes (Optional): Each of the 10 nozzles is driven by its own servo motor, enabling closed-loop control over position, speed, and torque. This allows for incredibly precise placement and faster mounting speeds, with motors capable of 3000 RPM or more.
· Automatic Calibration: The system automatically calibrates the nozzle center to the camera center, calculating and correcting any offset values. This “set-and-forget” functionality enhances accuracy and simplifies operation.
· Quick CSV Import: Streamline your workflow by quickly importing CSV files to generate mounting coordinates with a single click, drastically reducing programming time.

Ready to Elevate Your Manufacturing Capability?

The Qihe Q10+ Universal SMT Machine is more than just an equipment purchase—it’s an investment in smarter, more reliable, and more profitable production. It represents the perfect balance of rugged engineering and intelligent software, designed to give small and medium-sized enterprises a competitive edge in a global market.
