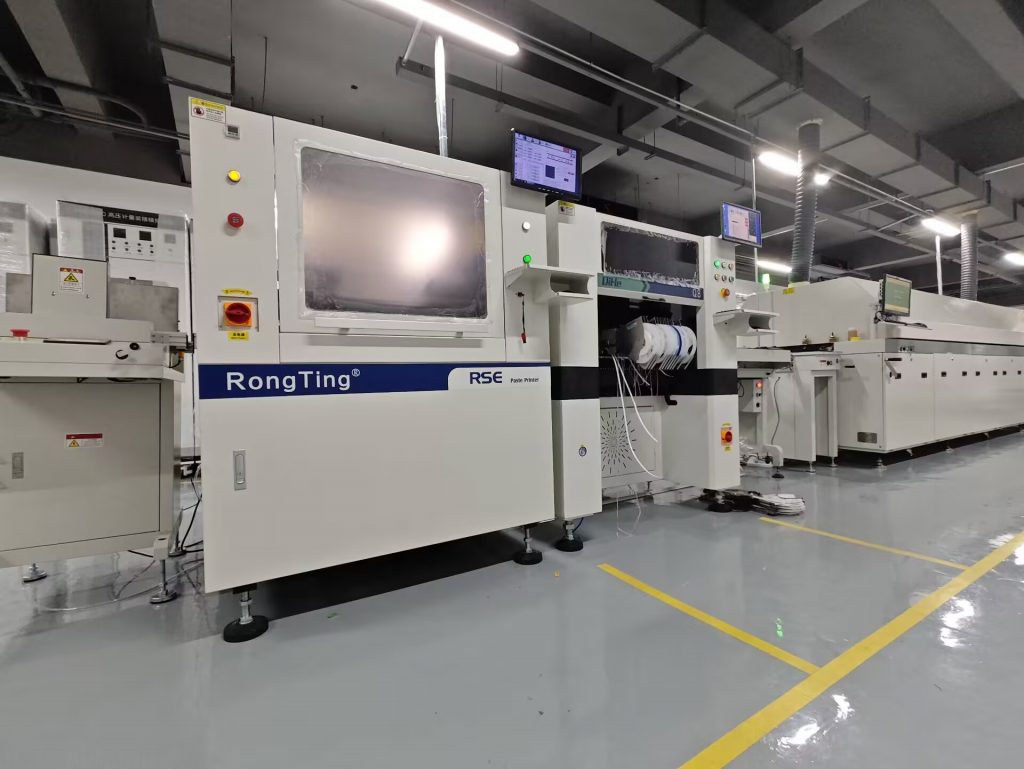

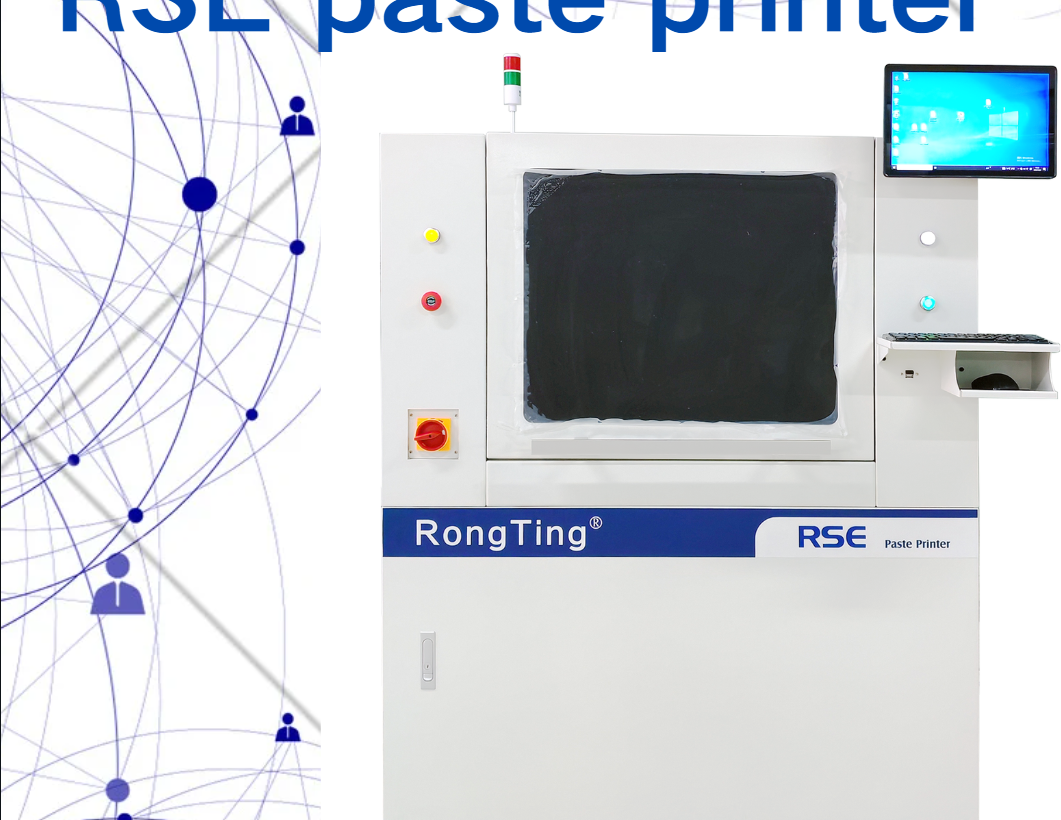

In the fast-paced world of PCB manufacturing, precision, speed, and reliability are the cornerstones of success. Finding equipment that seamlessly integrates into production lines while consistently delivering high-quality output is no easy feat. Today, we’re excited to introduce the RongTing RSE Paste Printer — a cutting-edge solution designed to elevate your manufacturing process to new heights. Let’s dive into what makes this printer a must-have for electronics manufacturers.
Unmatched Precision: The Core of Reliable PCB Printing
The RongTing RSE Paste Printer is built around advanced positioning systems for pinpoint accuracy.Its Stencil Positioning System is ergonomically designed for large stencils, boasting great stability and practicality. The automatic alignment function cuts out manual adjustments, saving time and boosting overall efficiency.Paired with it is the Accurate Optical Positioning System, which can identify various Mark points, solder joints, and PCBs of different colors and materials (including FPC, plated and gold-plated types). With a repeat positioning accuracy of ±0.02mm and printing accuracy of ±0.03mm, the RSE Printer ensures every solder paste deposit is precise, consistent and up to top quality standards — a must for manufacturing complex PCBs used in consumer electronics, automotive components and industrial equipment.
Versatility to Adapt to Your Production Needs
One of the standout features of the RongTing RSE Paste Printer is its exceptional versatility. It can handle a wide range of PCB and stencil sizes, making it suitable for diverse production requirements:
- PCB Size Range: From a minimum of 50×50mm to a maximum of 400×350mm, catering to both small-scale prototypes and large-volume production runs.
- PCB Thickness: Accommodates boards between 0.4mm and 9mm, with a warpage tolerance of less than 1%.
- Stencil Compatibility: Works with stencils of varying sizes (minimum and maximum dimensions available) and thicknesses, offering flexibility for different printing processes.
The RongTing RSE Paste Printer flexibly fits into your existing production line, supporting four transmission directions (Left-Right, Right-Left, Left-Left, Right-Right) and a transport height of 90±40mm. It handles both high-density and standard PCBs with ease.
Time is money in manufacturing, and this printer is built to maximize efficiency: it delivers a fast printing cycle (under 10 seconds, excluding printing and cleaning) and rapid product changeovers (less than 5 minutes), cutting downtime and boosting overall throughput.
Efficient Performance: Save Time and Reduce Costs
The dual independent motor-driven print heads deliver smooth, consistent printing, with adjustable squeegee speed (5-200mm/sec), pressure (0.5-10Kg), and angles (60°/55°/45°) to match different printing processes. The programmable stencil separation speed (0.1-20mm/sec) and flexible cleaning options (dry/wet/manual) further enhance process control, ensuring clean, high-quality prints every time.
Robust Design and User-Friendly Operation
The RongTing RSE Paste Printer is built tough for long-lasting performance, with a sturdy 600Kg net weight (820Kg gross) and compact 1190×1370×1500mm dimensions that fit most factory floors.Its PC-based control system comes with an intuitive interface for easy operation and monitoring. The U.V.W three-axis Special Platform Calibration System delivers high dynamic performance for quick PCB offset adjustments, while the magnetic-thimble-equipped PCB transport and clamping system (with adjustable lifting platforms and manual supports) ensures stable, secure PCB handling during printing.
Why Choose RongTing RSE Paste Printer?
- Precision You Can Trust: Advanced positioning systems ensure consistent, high-accuracy printing.
- Versatility for Every Project: Handles a wide range of PCB and stencil sizes, adapting to diverse production needs.
- Maximum Efficiency: Fast cycle times and quick changeovers reduce downtime and boost productivity.
- Durable and Reliable: Robust design built for long-term, heavy-duty use.
- User-Friendly Operation: Intuitive PC control system simplifies setup and monitoring.
RongTing Technology, based in Wenzhou, China, is committed to delivering high-quality SMT equipment that meets the evolving needs of the electronics manufacturing industry. With the RSE Paste Printer, they’ve combined innovation, precision, and efficiency to create a solution that helps manufacturers stay ahead of the competition.
