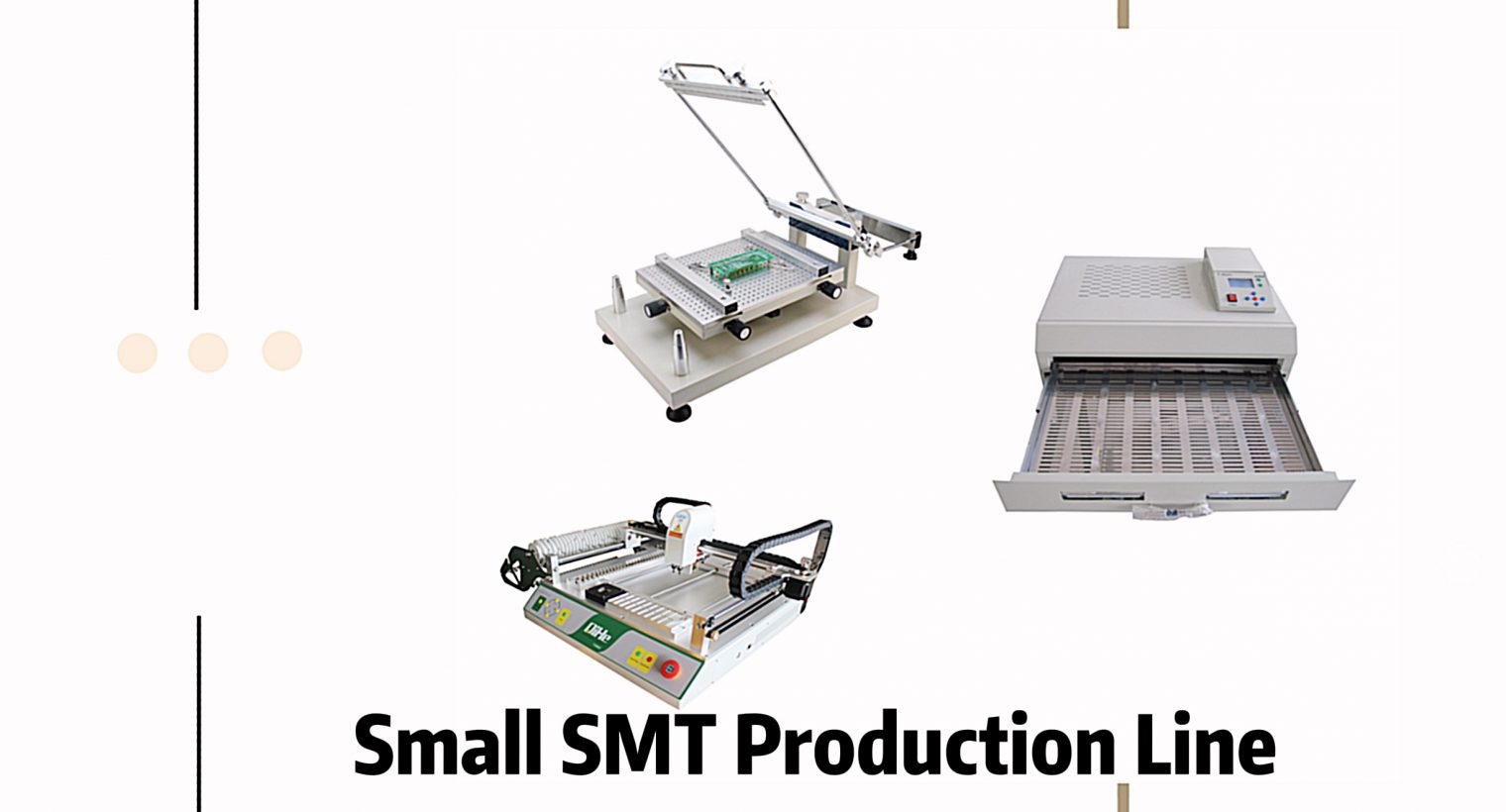

For startups, research labs, and small-scale manufacturers, building an efficient yet affordable SMT production line remains a critical challenge. The combination of TVM802A Pick and Place Machine, Frameless Solder Paste Printer, and T962C Reflow Oven offers a compact, reliable solution tailored to low-volume production needs.
Core Equipment Overview
The TVM802A stands out with its dual-head design and vision alignment system, capable of placing components from 0402 chips to QFN packages with ±0.025mm accuracy. Supporting PCBs up to 340×340mm, it balances speed (5500 CPH with vision) and precision for prototyping and small-batch runs.
A Frameless Solder Paste Printer simplifies stencil setup without outer frames, allowing quick changeovers between different PCB sizes. This flexibility is invaluable for handling multiple product variants in limited spaces.
The T-962C Reflow Oven completes the line with a 400×600mm heating area and precise temperature control up to 280°C. Its compact design suits small workshops while ensuring consistent soldering results.
Why This Combination Works
This setup is ideal for:
· R&D and prototyping: Fast iteration from design to physical boards.
· Low-volume production: Cost-effective manufacturing for niche products.
· Educational use: Hands-on SMT training with industrial-grade equipment.
· Maintenance and repair: Producing replacement components on demand.
Optimization Tips
- Arrange equipment linearly to minimize handling.
- Calibrate the printer and oven regularly for consistent results.
- Use TVM802A’s vacuum detection to avoid placement errors.
Conclusion
The TVM802A, frameless printer, and T-962C together lower entry barriers into SMT manufacturing. By offering professional capabilities at a manageable scale, this line empowers innovators to turn ideas into reality efficiently and reliably.
