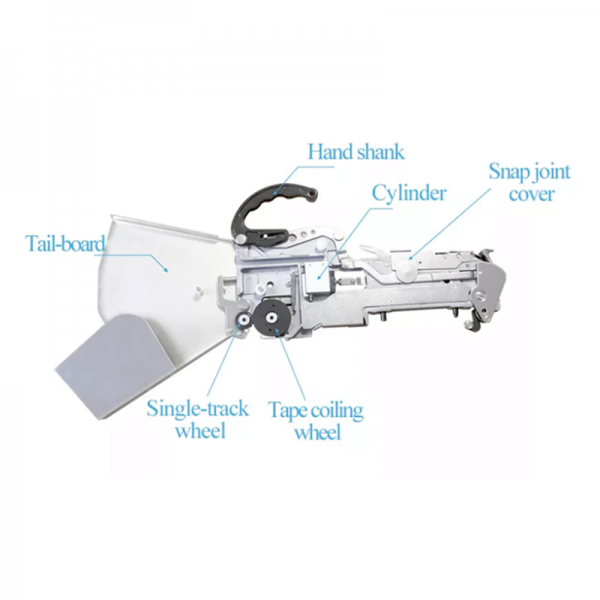

CL Pneumatic Feeder for smt pick and place machine


Simple structure in linear type ,easy in installation and maintation. Adopting advanced components in pneumatic parts ,electric parts and operation parts. High pressure double crank to control the die opening and closing. Running in a high automatization and intellectualization,no pollution .Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

Pneumatic Feeder SizeSuitable for

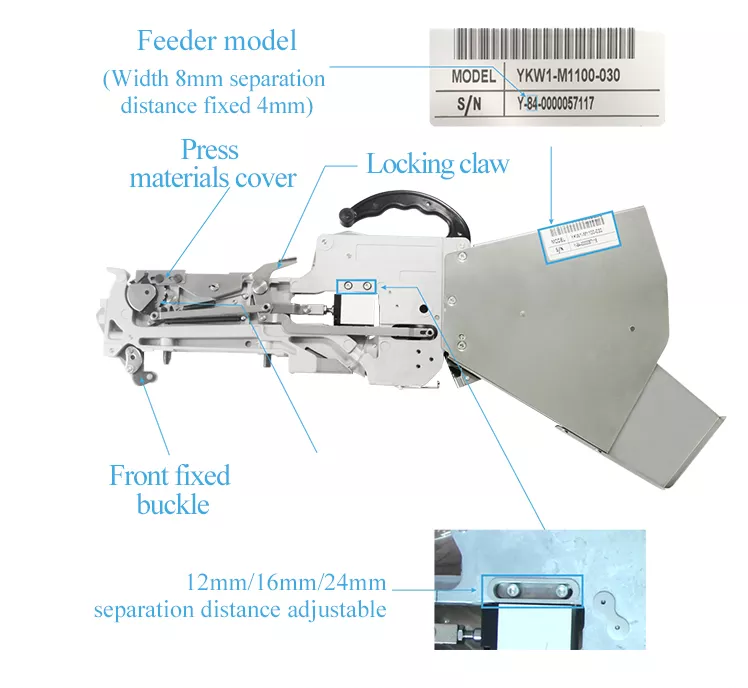

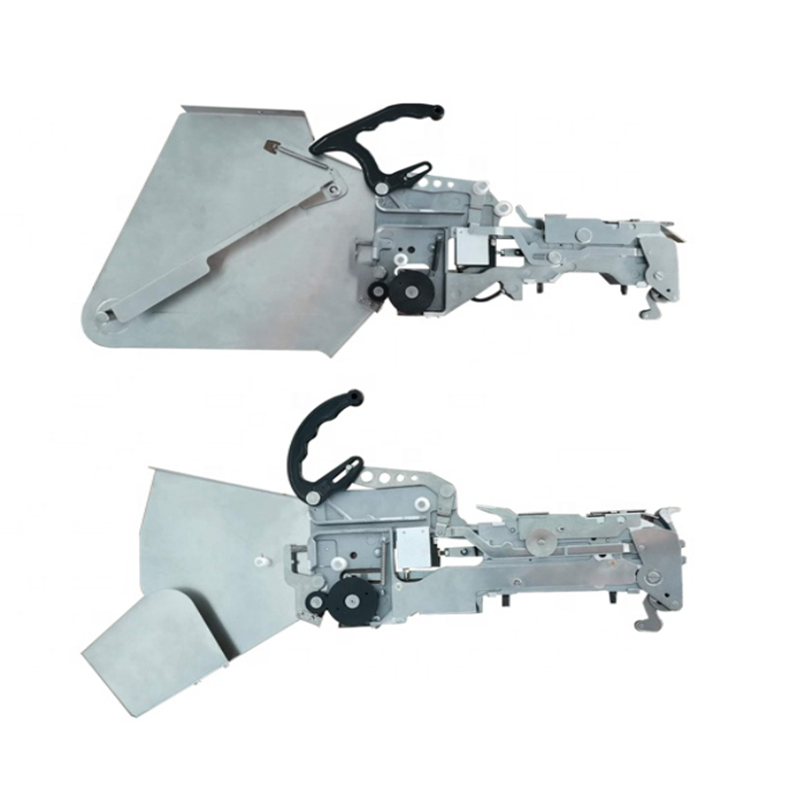

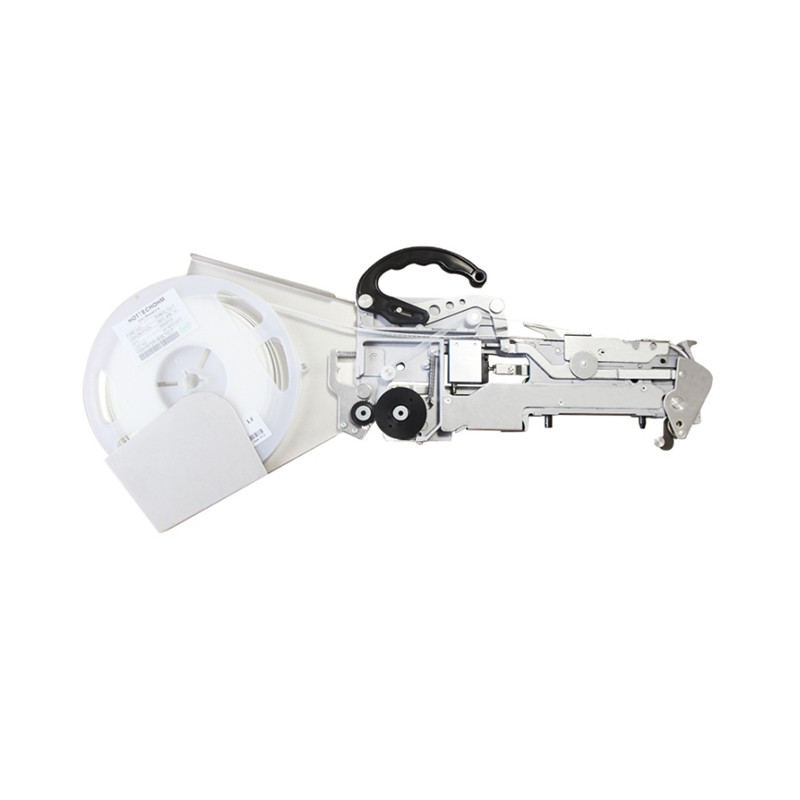

CL8*4MM  Pneumatic Feeder  belt width is 8mm, 0603, 1206, 0805, 3014, 3528, 4148,
SOT23 and other using less SMD components, 1210 resistance.

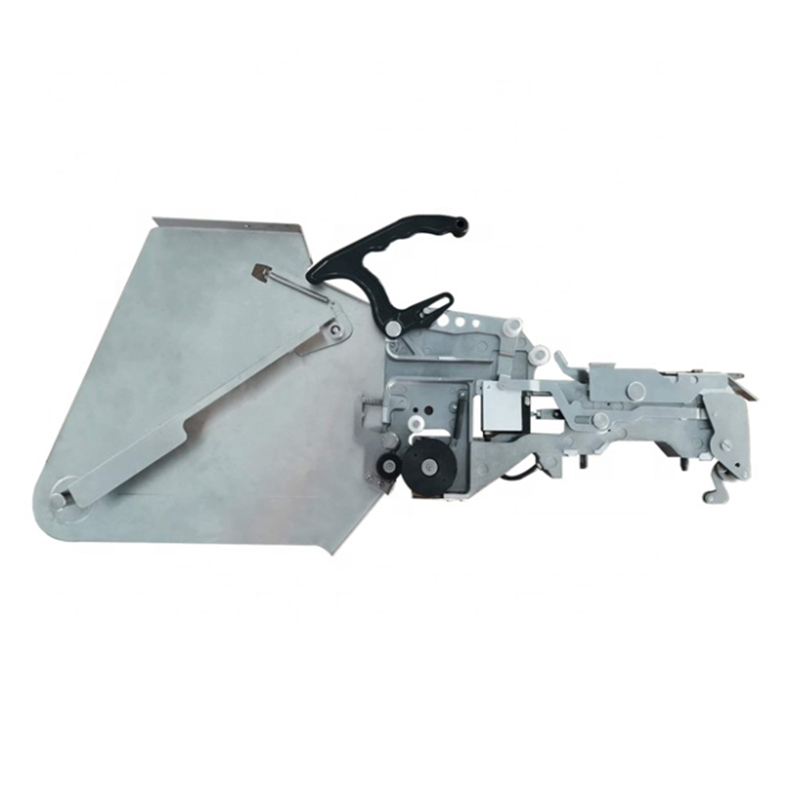

CL12MM  Pneumatic Feeder belt width is 12mm, LED pick and place machine,
5050 lamp beads, 5730 lamp beads, 5630, 4014.

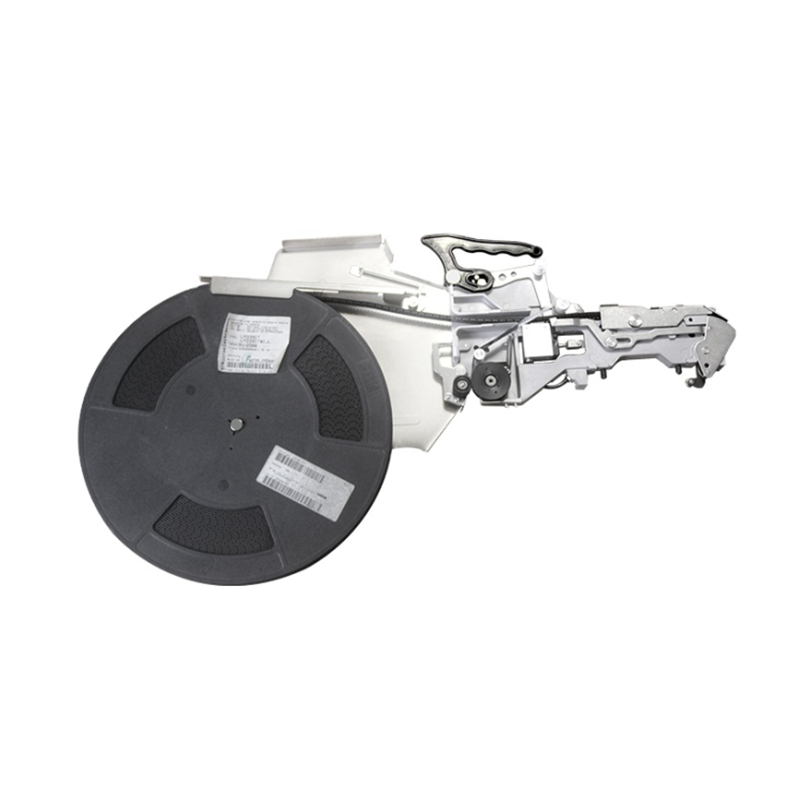

CL16MM Pneumatic Feeder belt width is 16mm, two-terminal and 16mm wide
tape packaged components.
CL24MM Pneumatic Feederbelt width is 24mm, two-terminal and 24mm wide
tape packaged components.
