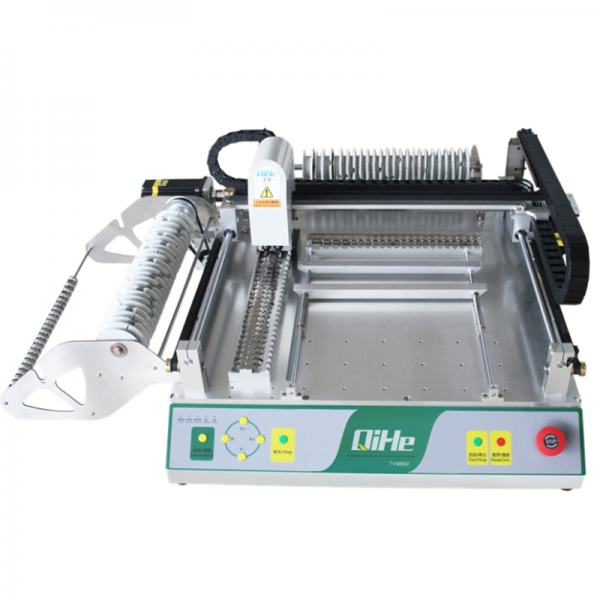

TVM802B SMT pick and place machine 2heads 46slots desktop Pick&Place Machine standard edition

Categories: , Tags: , , , , , , , , ,

Description

TVM802B liteplacer (desktop pnp mounter,desktop smt pick and place machine) . There are 46 slots（8mm=38,12mm=6,12mm=2）,2 placement heads.

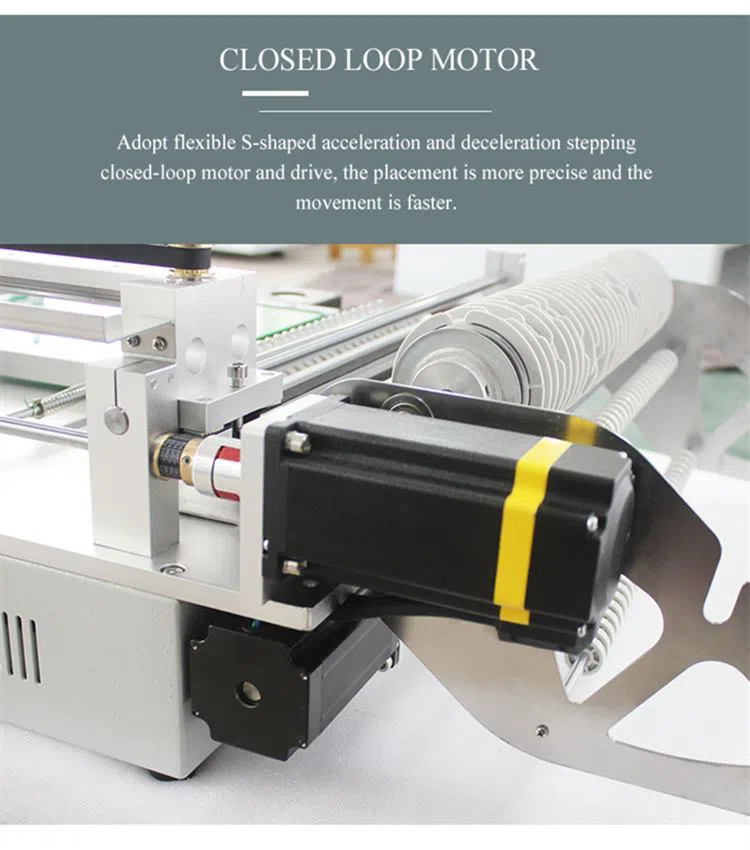

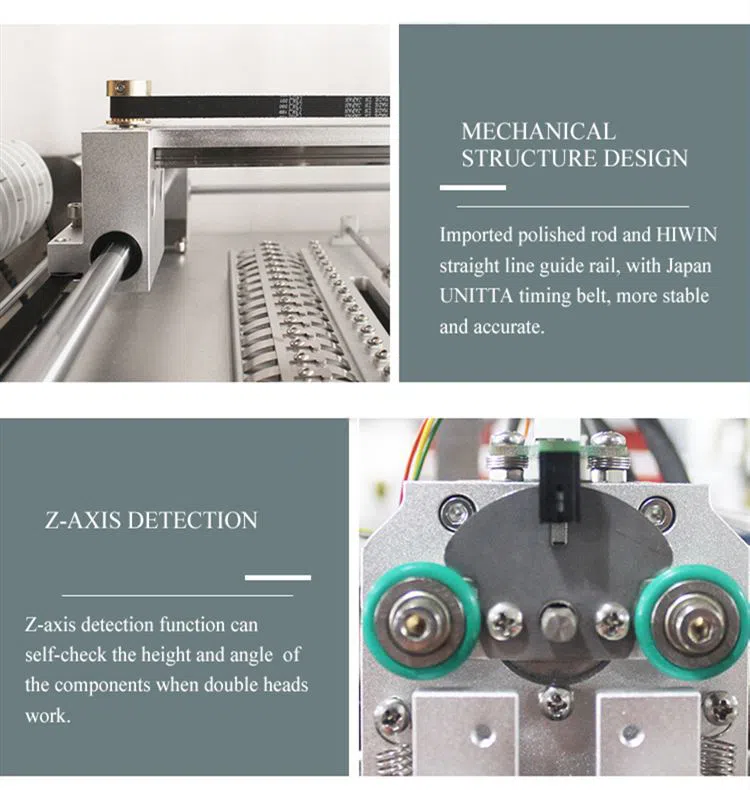

Can handling smallest package size:0402 inch and up to largest size:TQFP100.The external dimensions of TVM802B are 940mm*940mm*320mm.Standard editionis mainly composed of working head, dual vision system, operation platform, patented feeding rack, main controller system, closed-loop motor drive system, internal vacumm pump,etc. Voltage AC220V or AC110V, power 150W.

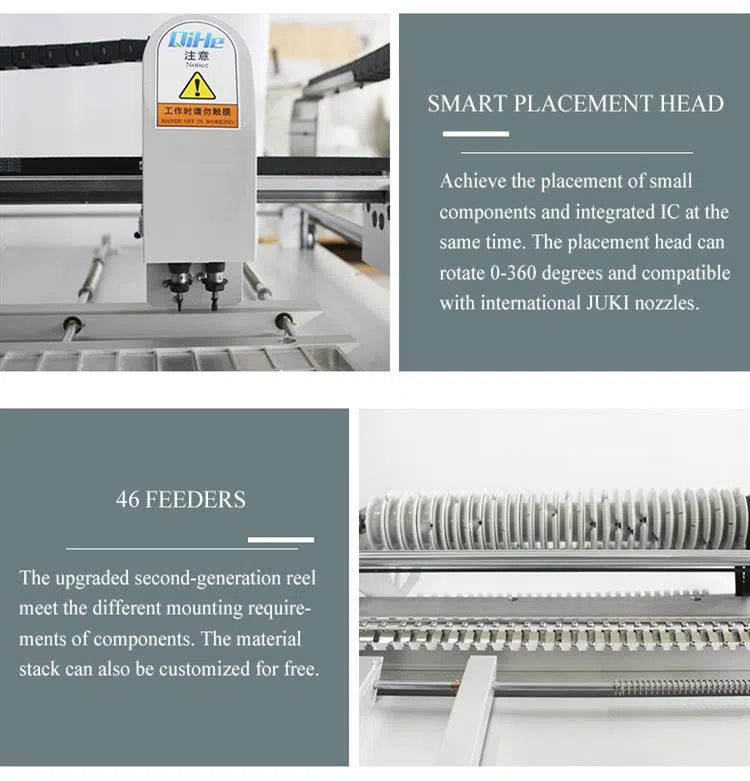

TVM802 series desktop pick and place machine (tvm802a,tvm802b,tvm802ax,tvm802bx) has 2 suction nozzle heads, unique tray feeding mechanism, no need to buy additional feeder, also very convenient to carry and transport.

ModelTVM802B

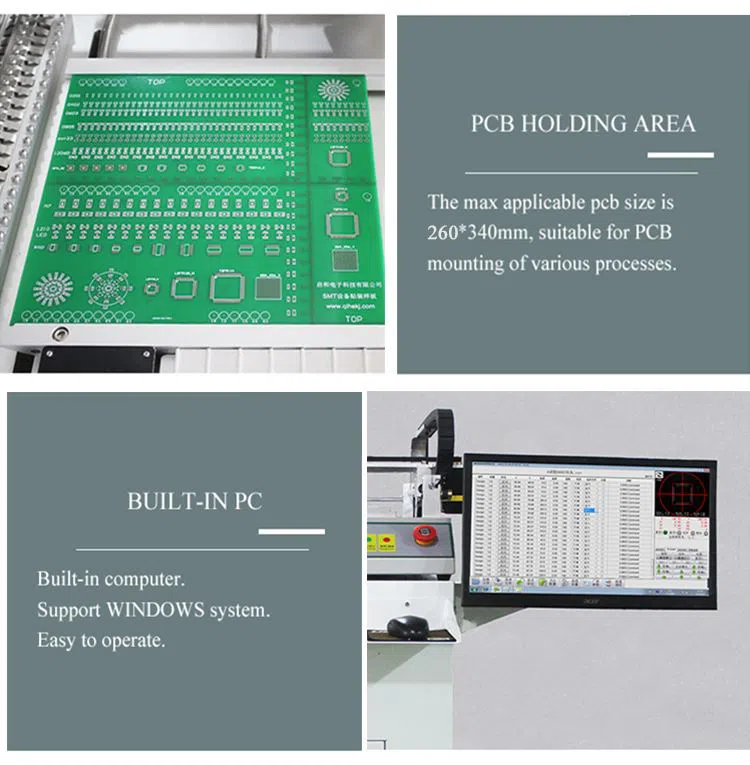

Max applicable PCB size250*330mm
Max xy moving range395*430mm
Max z moving range12.5mm
Placement head quantity2
Max mounting capabilityVision on: 5500pcs/h
Vision off: 6500pcs/h
Feeder slots & Tape width46 slots, （8mm=38, 12mm=6,16mm=2）

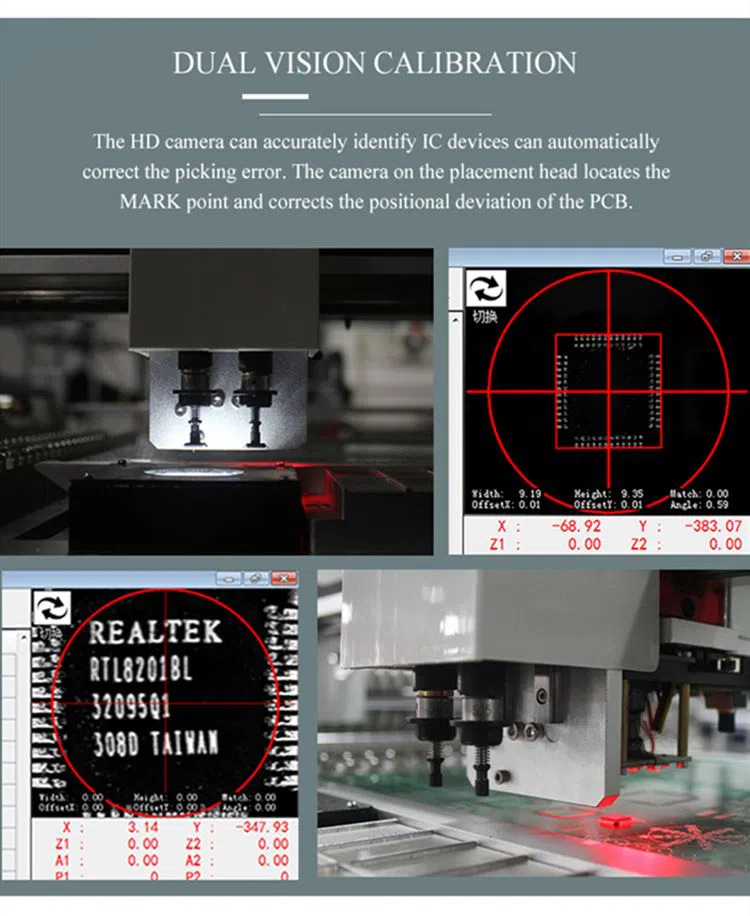

Visual camera2 HD CCD cameras
Applicable component Smallest size:0402inch
Largest size:TQFP100
Power supply220V/110V
Net weight43kg
Gross weight66kg
Machine Dimension94*64*33cm
Packing size107*77*42cm
Volume0.35CBM
