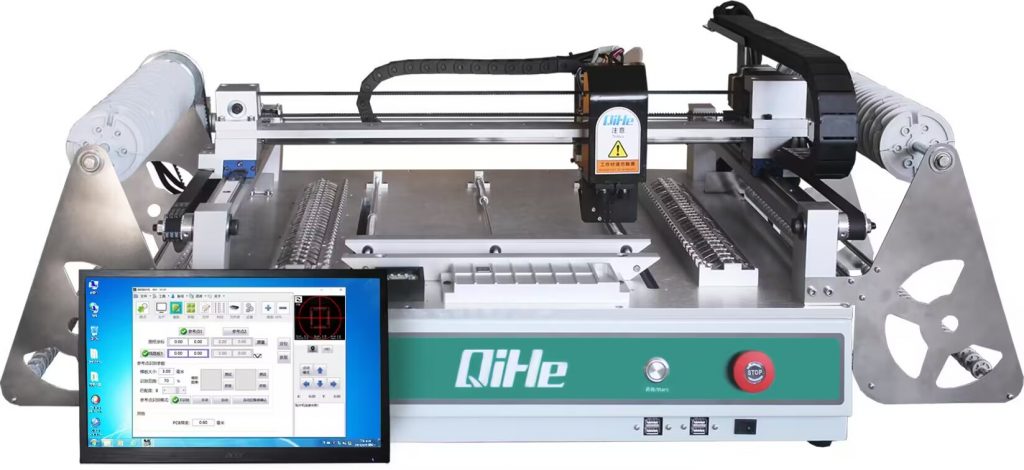

Hello guys, today I will introduce you a popular desktop placement machine by Qihe SMT. The desktop pick and place machine Model TVM802B Plus .
We used a new design language, combined with the design and production experience of TVM802 series to create this higher-end desktop placement machine .
We designed a brand new feeder rack and increased to 58 slots，updated new drive accessories，X,Y axis linear slides,placement head，operation panel .
Such a newly upgraded highly intelligent, efficient and affordable desktop placement machine. It’s an excellent partner for development, design and business establishment.
Brand new operation panel, with LED ring light button, more convenient for you to observe and operate.
It does not take up space and is easy to carry. It can be placed in your studio, your room, your warehouse, easily put into the elevator. You can even use a car vehicle to carry it around to work, eliminating the need to install a large automatic placement machine trouble
Now let’s take a look at this machine real operation video to get to know it .
TVM802B Plus placing resistor capacitor package
TVM802B Plus placing LQFP100 pin IC chips
It can easily operate LQFP100 pin IC chips and 0402 inch resistor capacitor package .
If you like this machine, welcome to contact our sales manager for inquire .
Read more: The most popular desktop placement machine that engineers setup for SMT R&DQHSMT is an enterprise specializing in the production of SMT equipment, like pick and place machine ，reflow oven，stencil printer ，smt pick and place machine,pnp,pick&place,pcb assembly,smd chip shooter,pnp machine,chip mounter,smt line,welcome to send inquiry
you can choose a reflow oven to meets your need like qfr630,qrf835,qrf1235
stencil printer model qh3040,qp3250,qfa5060
Also we have different kinds of ,smt pick and place machine ,like desktop pick&place machine,tvm802a,desktop pick&place robot,tvm802b,desktop smd chip shooter,tvm802ax,desktop pnp machine,tvm802bx,tvm802b plus,semi automatic pick and place machine,tvm925,pcb assembly,TVM926,automatic pick and place machine,tvm925s,pick and place robot,tvm926s,led pick and place machine,ql41,fully automatic pick and place machine,qm61,smd chip shooter,qm62,led pcb pick and place device,chip mounter,qm81,smd device,qm10
WHAT IS SMT pick and place machine？

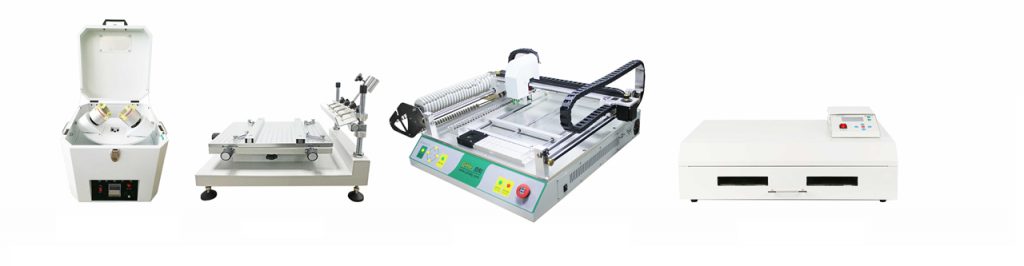

SMT (Surface Mounted Technology) is a comprehensive system engineering technology, which covers substrates, design, equipment, components, assembly processes, production accessories and management. When it comes to SMT pick and place machines, the automatic SMT production line requires automatic loading and unloading machine, automatic solder paste printing machine, placement machine, reflow soldering machine, AOI inspection equipment, connecting table, etc. For these SMT assembly line equipment, Qihe SMT can offer you machines in prototype SMT line, small SMT production line, mass production SMT line at low SMT line cost. Contact us now if you are interested.
WHAT IS SMT PROCESS？
- Solder Paste Printing
Its function in SMT line process is to print the solder-free paste on the pads of the PCB to prepare for the soldering of the components. The equipment used is a screen printing machine, located at the forefront of the SMT production line. - Components Placement
Its function is to accurately install the surface mount components on the fixed position of the PCB. The equipment used is a placement machine, located behind the screen printing machine in the SMT production line. - Reflow Soldering
Its function in SMT manufacturing line is to melt the solder paste so that the surface mount components and the PCB board are firmly bonded together. The equipment used is a reflow oven, located behind the placement machine in the fully automatic SMT production line.
WHAT IS SMT ASSEMBLY LINE？
With the development of technology, future electronic products will be lighter, smaller and thinner. Traditional assembly technology can no longer meet the requirements of high-precision and high-density assembly. A new type of PCB assembly technology-SMT (Surface Mount Technology) has emerged. SMT Assembly is the use of automated machines to assemble electronic components on the surface of the circuit board. Its density, high speed, standardization and other characteristics occupies an absolute advantage in the field of circuit assembly technology. In addition, SMT assembly has a wide range of uses.
