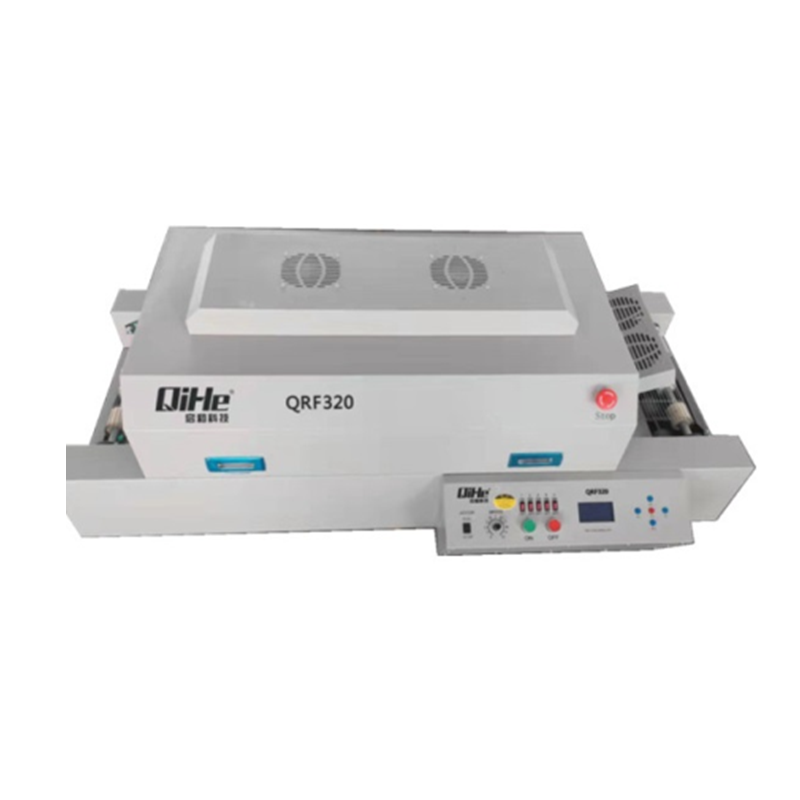

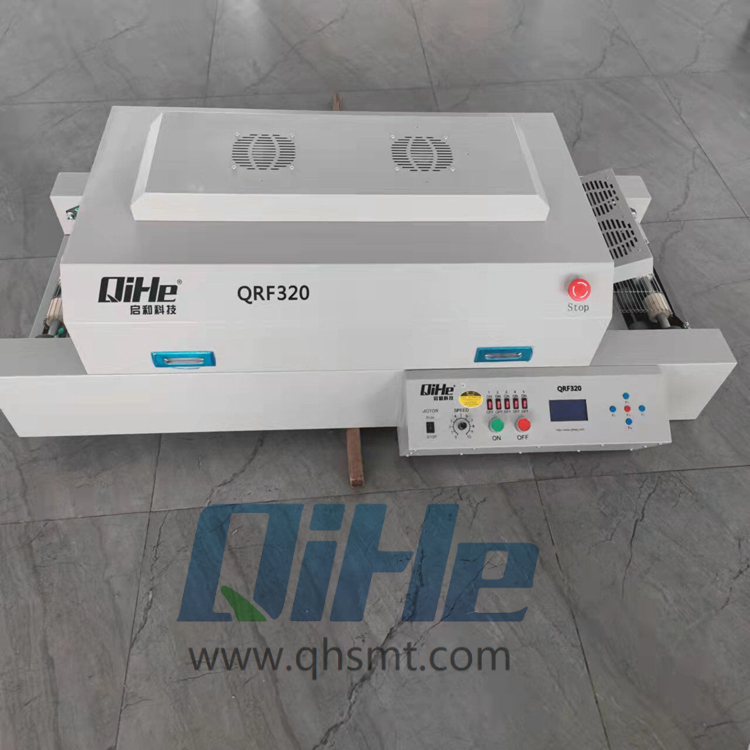

QRF320 / QH320 Crawler-type 5 Zones SMT Reflow Oven solder welding

SMT Reflow Oven 5 Zone solder welding QRF320 / QH320 Crawler-type 5 heating zones ,Power supply 380V /220V


We are a well-known name in the market in offering a wide range of SMT Reflow Oven 5 Zone solder welding QRF320 / QH320. This is equipped with the crawler-type and five temperature area heating systems, and each temperature area uses independent PID controlling and up-down heating type, can make the inside temperature more accurate and well-proportioned. Moreover, offered range of products is tested on various parameters to follow the ongoing market trends. We assure timely delivery of our offered products.

Product name5 zone crawler-type reflow oven
ModelQH320 / QRF320
The heating zone quantityUpper3/down2
The length of the heating zone960 mm
The heating typeintelligent level sirocco and rapid infrared heating
The cooling zone quantity1
Maximum width of PCB board300 mm
The operation directionleft→right
Delivery OptionsNet transmission chain transmission
The speed of conveyor belt0-1600 mm/min
The power supplyThree phase 5 line 380 V 50/60 Hz /220V
Peak Power8 kw
Work Power4.5 kw
Heating up timeAround 15 mins
Temperature control rangeRoom temperature to 350 ℃
Temperature control modePID closed-loop control
Temperature control accuracy±3
PCB temperature distribution deviation±2
Overall Dimensions1450×630×470
Machine Weight90 kg
