TVM802AX SMT pick and place machine 2heads 29slots desktop deluxe edition SMT Pick&Place Machine

Categories: , Tags: , , , , , , , , ,

Description

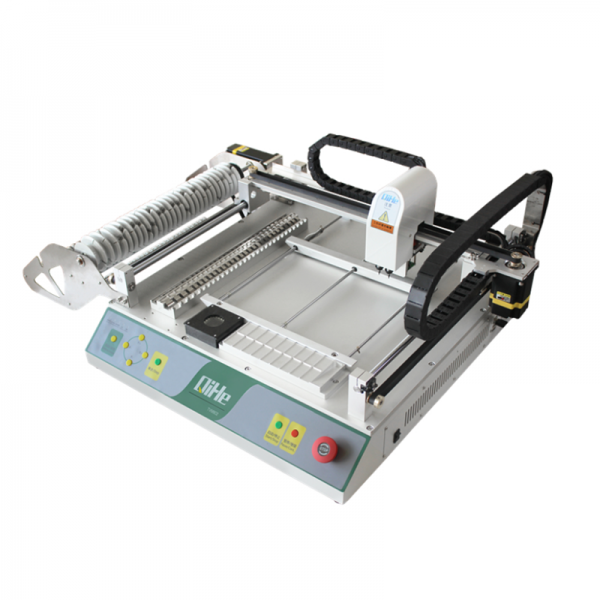

TVM802AX desktop SMT pick and place machine (desktop pnp mounter). The advantages of this model are the built-in industrial control computer, optimized driver and software algorithm，2 placement heads，29 slots.

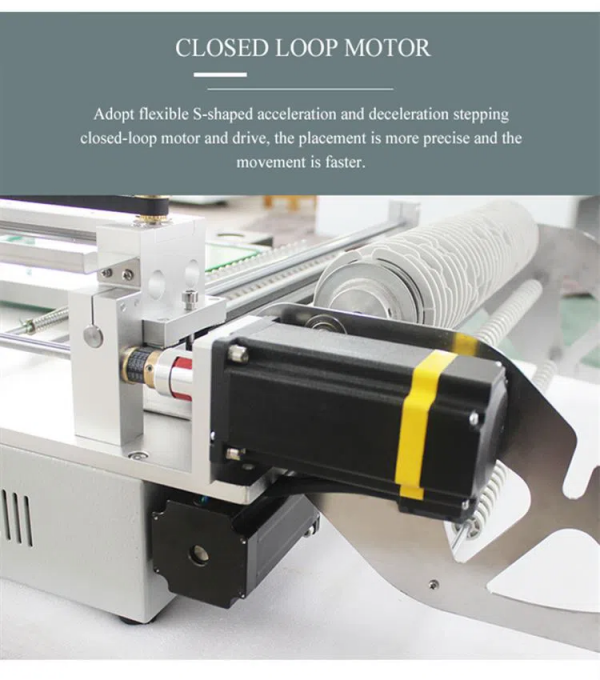

TVM802AX pick&place machine can handling smallest package size:0402 inch and up to largest size:TQFP100.The external dimensions of TVM802AX are 875mm*640mm*310mm.Deluxe edition is mainly composed of built-in industrial control computer, working head, dual vision system, operation platform, patented feeding rack, closed-loop motor drive system,internal vacumm pump, etc. Voltage AC220V or AC110V, power 150W.

ModelTVM802AX
Max applicable PCB size340*340mm
Max xy moving range395*450mm
Max z moving range12.5mm
Placement head quantity2
Max mounting capabilityVision on: 5500pcs/h
Vision off: 6500pcs/h
Feeder slots & Tape width29 slots（8mm=25, 12mm=3,16mm=1）
Visual camera2 HD CCD cameras
Applicable component Smallest size:0402inch
Largest size:TQFP100
Power supply220V/110V
Net weight39.5kg
Gross weight66kg
Machine Dimension94*64*33cm
Packing size107*77*42cm
Volume0.35CBM
