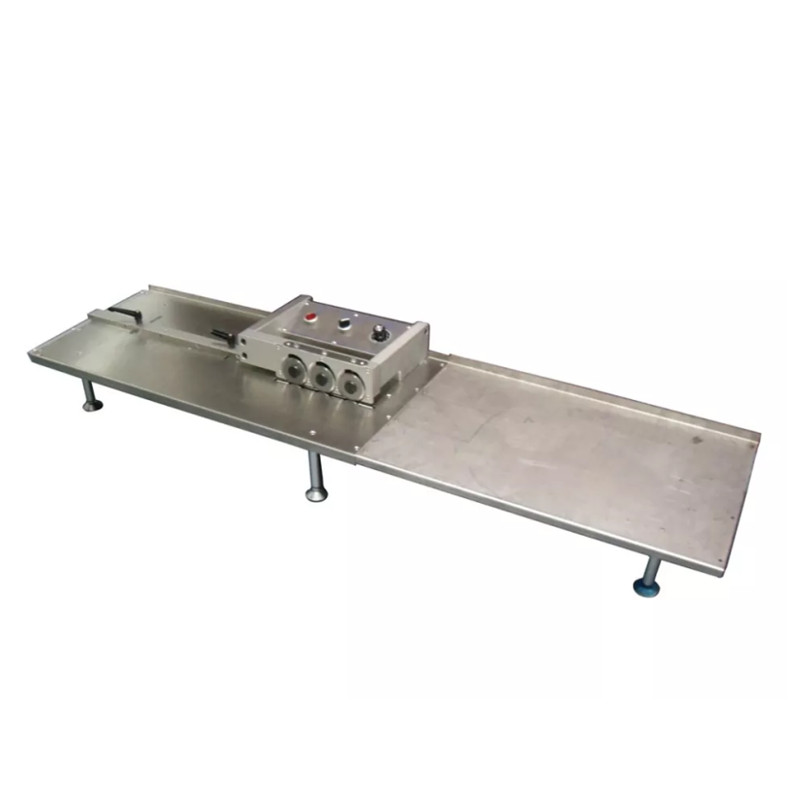

CT120 PCB cutting machine,multicut PCB separator support Board material :Aluminum substrate,cooper substrate,FR1~4,glass fiber board can be cut
Multicut PCB cutting separating machine features:
a.Decrease the stress , invoide the welding pot break.
b.Adjust the up guide slip by manual, which can solve the cut depth different problem.
c. There is the guide for V groove, which can ensure the cutting quality
d.High efficiency , Feed plate speed max=400mm/s. Speed is adjustable.
e.High precision, easy to maintenance, safe enough.
f.Machine is portable,high speed, easy to operate.
g.The up and down blade can be adjusted accurately,Up blade adjust : 0-15mm.
h. PCB components height limit : 15mm, under the PCB board’s components height limit 10mm.
Inside of the PCB max. width is 240mm, another side don’t limit
i.The length of PCB Board can be Unlimited

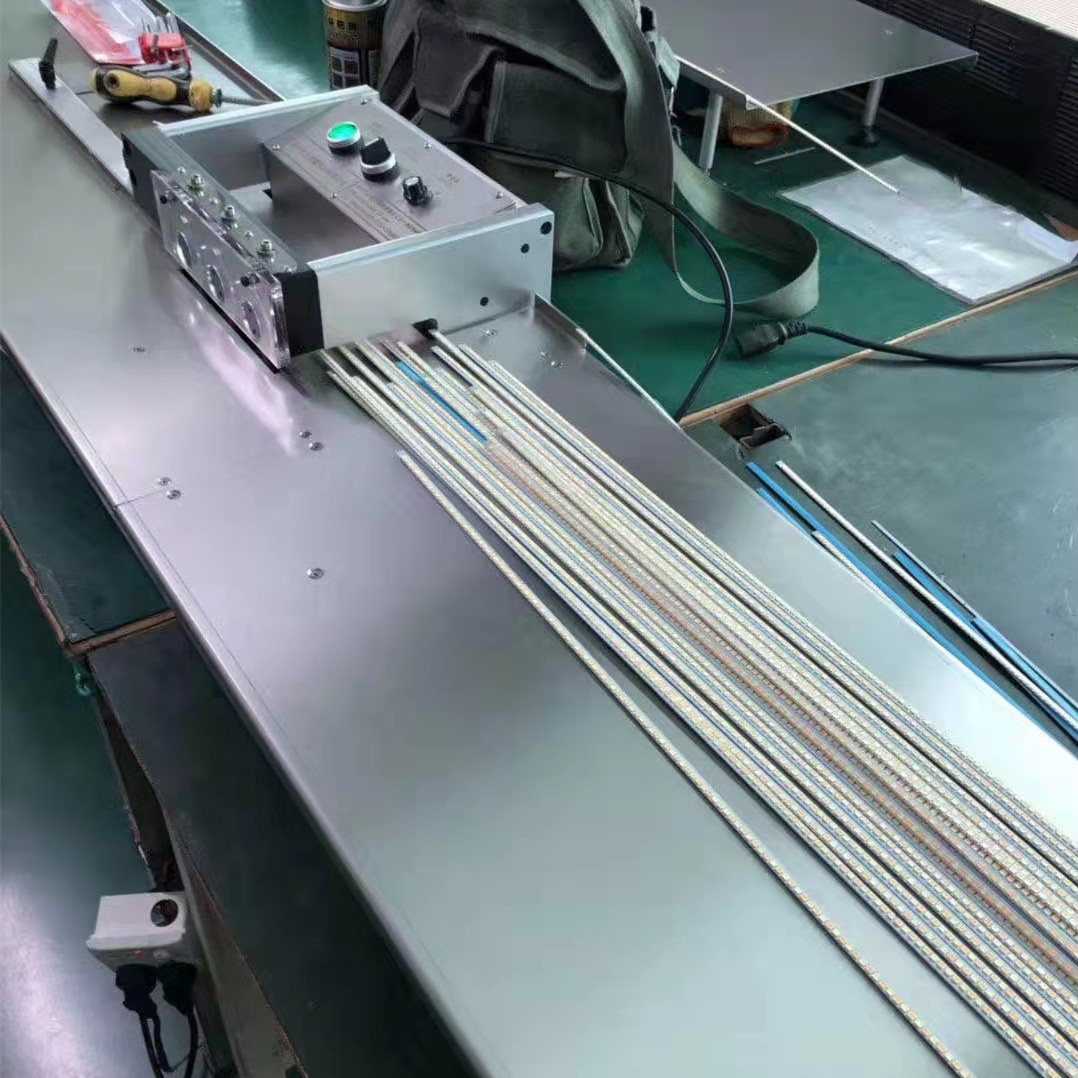

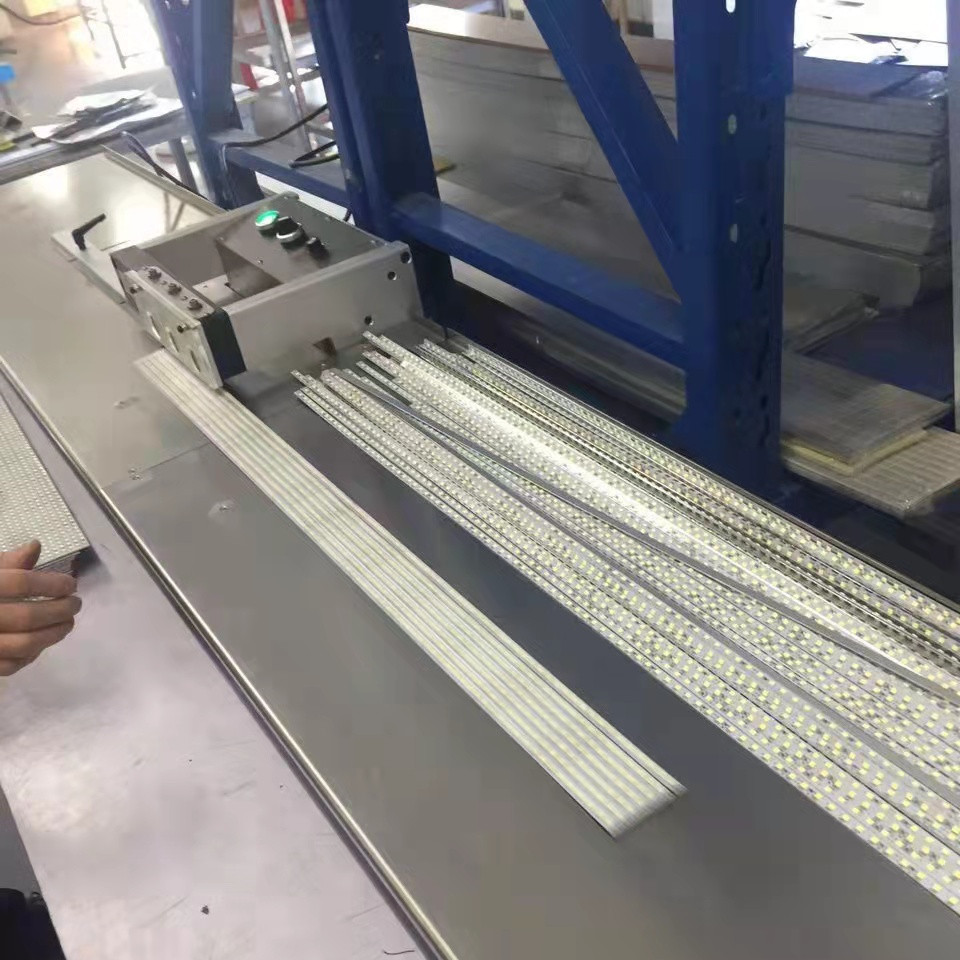

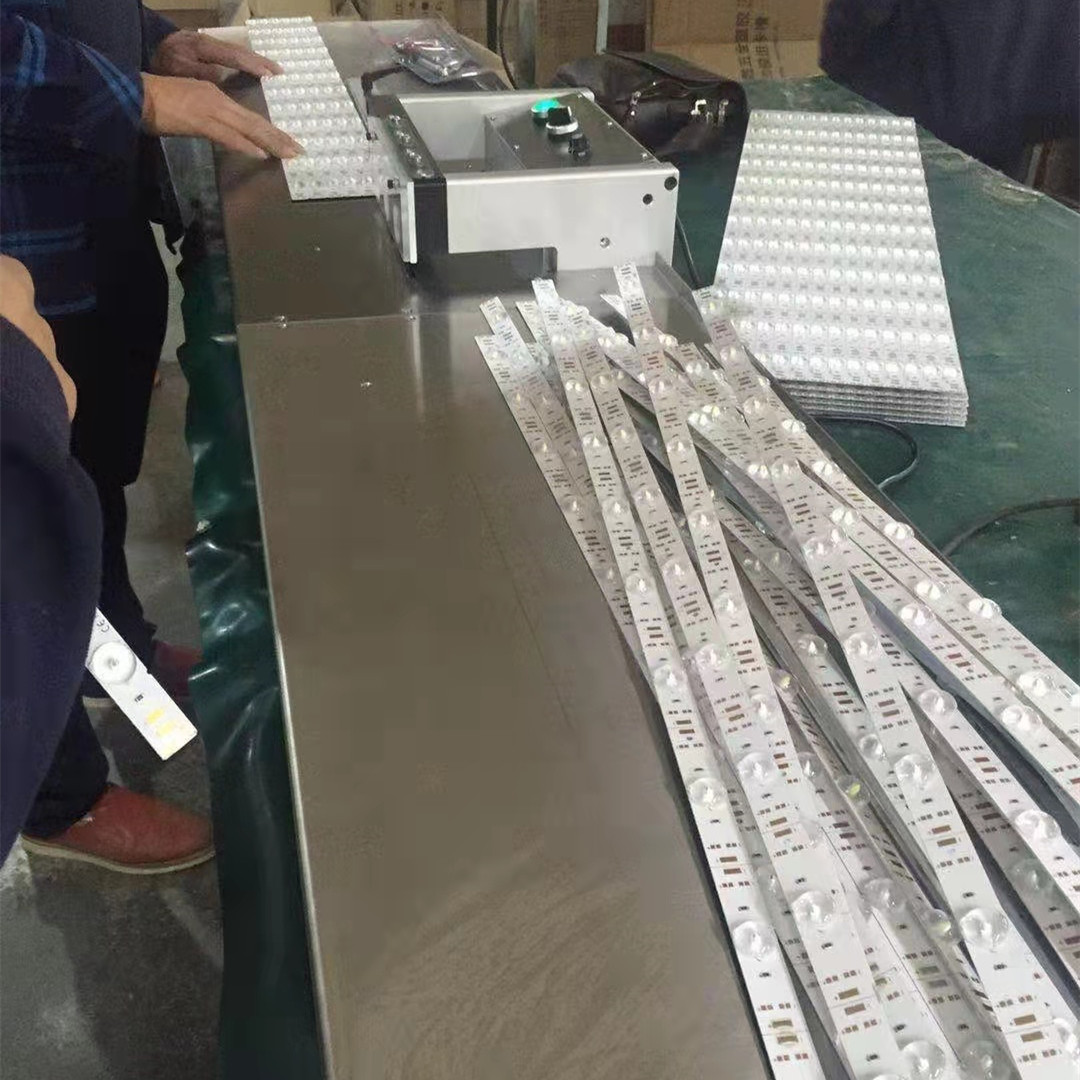

Multicut PCB separating machine details
1.Coutrolled by microcomputer program, it can cut board accurately with no error.
2.This machine applies unique multi sections cutting, the cutting is to be finished
by 6 pieces round blade.
3.Precise adjustment of up and down blade.Adjustable blade moving speed : 400mm/s. As per customers’ need, certain speed can be set
4.Operation platform can be adjustable higher and lower between 0 and 50mm
- Working process is pretty smooth, due multi sections cutting.
6.There won`t be any deviation when cutting along the v-cut slot, even the v-cut slot is shallow.
7.Pre-set the cutting start and end point to well control the cutting length
| Machine model | CT120 |
| Board thickness | 0.5~3mm |
| Feed plate speed | 0-400mm / seconds |
| Blade material | HSS SKH7 |
| Be cut board material | Aluminum substrate,cooper substrate, FR1~4,glass fiber board |
| Rated power | 60W |
| Working voltage | 220 v AC( 50 hz) |
| The host size | 1200*380*240 mm (L*W*H) |
| Feed/ disk installed after the overall size | 2400*380*240mm(L*W*H) |
| The packing size | 1250*450*270 mm (L*W*H) |
| Net weight | 38kg |
| Gross weight | 40kg |
