Description

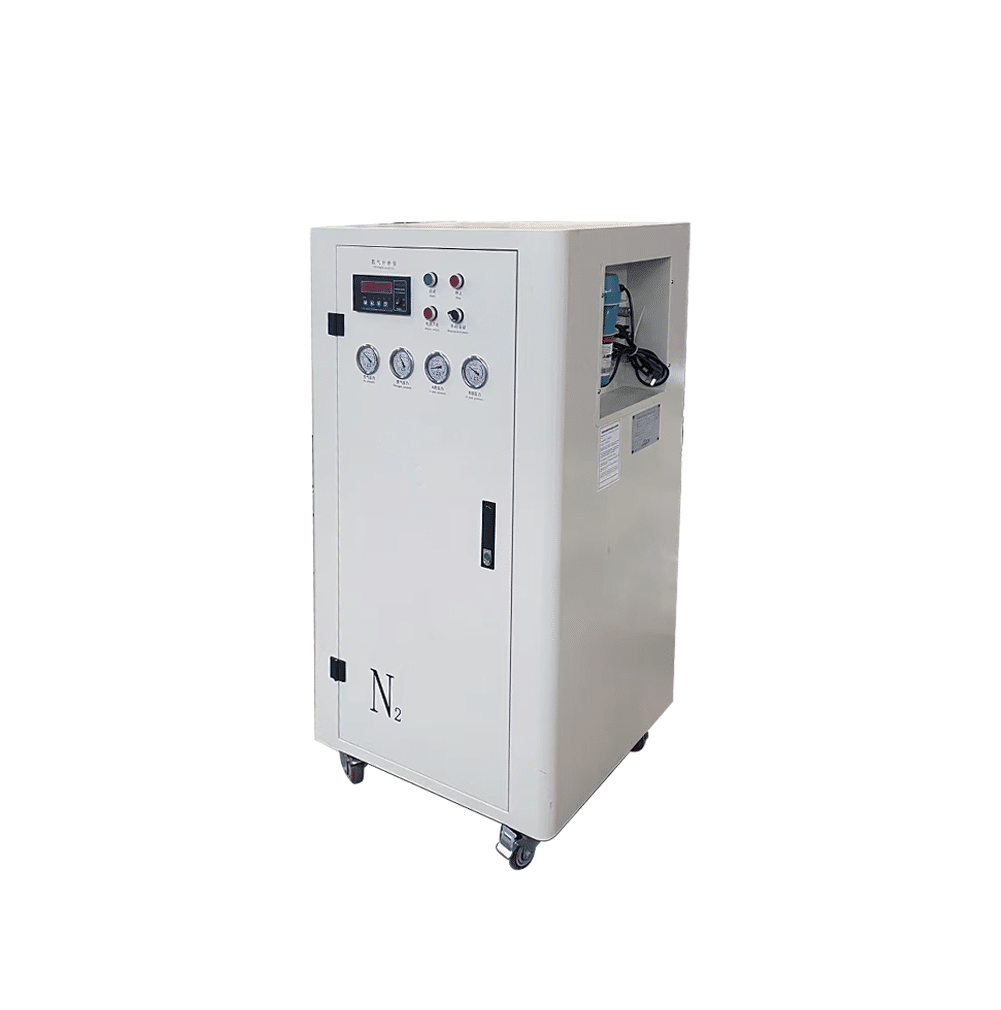

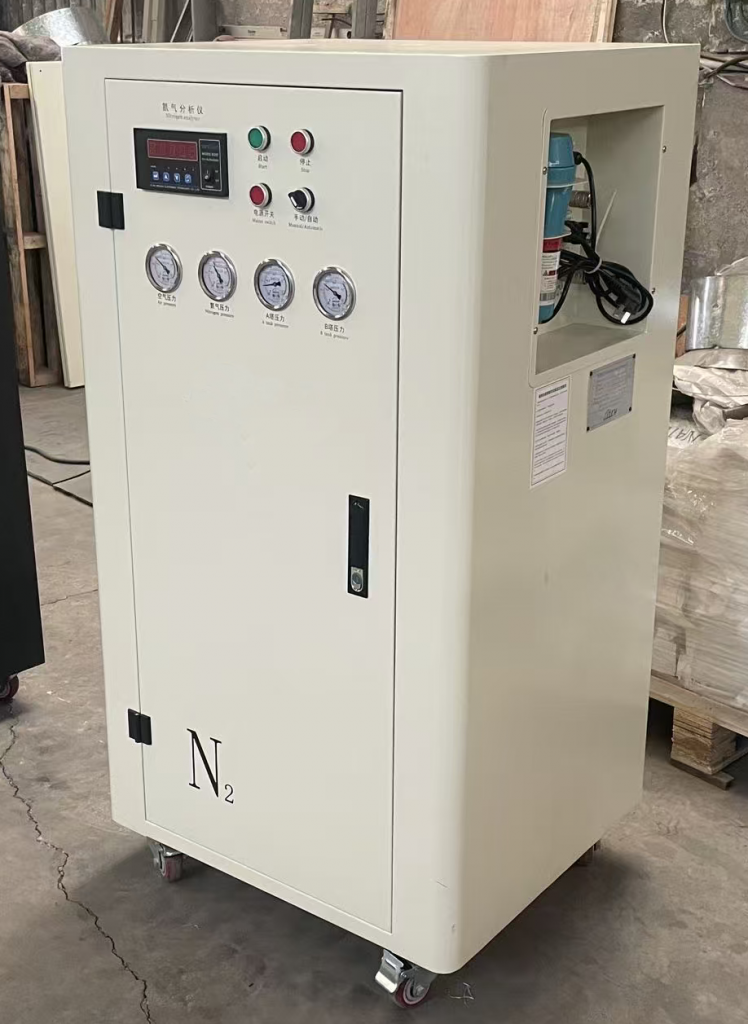

The nitrogen generator is a core supporting equipment for selective soldering, providing stable, high-purity nitrogen gas（99.999%） to create an inert welding atmosphere. Its main functions are to prevent oxidation, reduce solder dross, improve solder joint quality, and lower maintenance costs, while being compatible with lead-free processes and ensuring stable production lines.
| Pecifications | Parameter |
| Model | QS-X2-59 |
| Power supply | 220V 50Hz |
| Power | 30W |
| Operating temperature | Normal temperature |
| Nitrogen production capacity | 2m³/h |
| Nitrogen concentration | 99.999% |
| Intake pressure | 0.6-0.8Mpa |
| Bursting pressure | ＞1.0Mpa |
| Nitrogen pressure | ≤0.1-0.6Mpa（可控） |
| Machine size | 570*550*1630mm |
| Net weight | 118KG |
| Application scope | Industrial/Electronic/Medical/Food/Chemical and Petroleum, etc. |
| Configuration | 23.8L nitrogen storage tank * 2, Xinjie PLC, molecular sieve (cms330), oil-water separation device, nitrogen filtration device, pneumatic components, Xi’an Bien Nitrogen Analyzer (6100) |
-

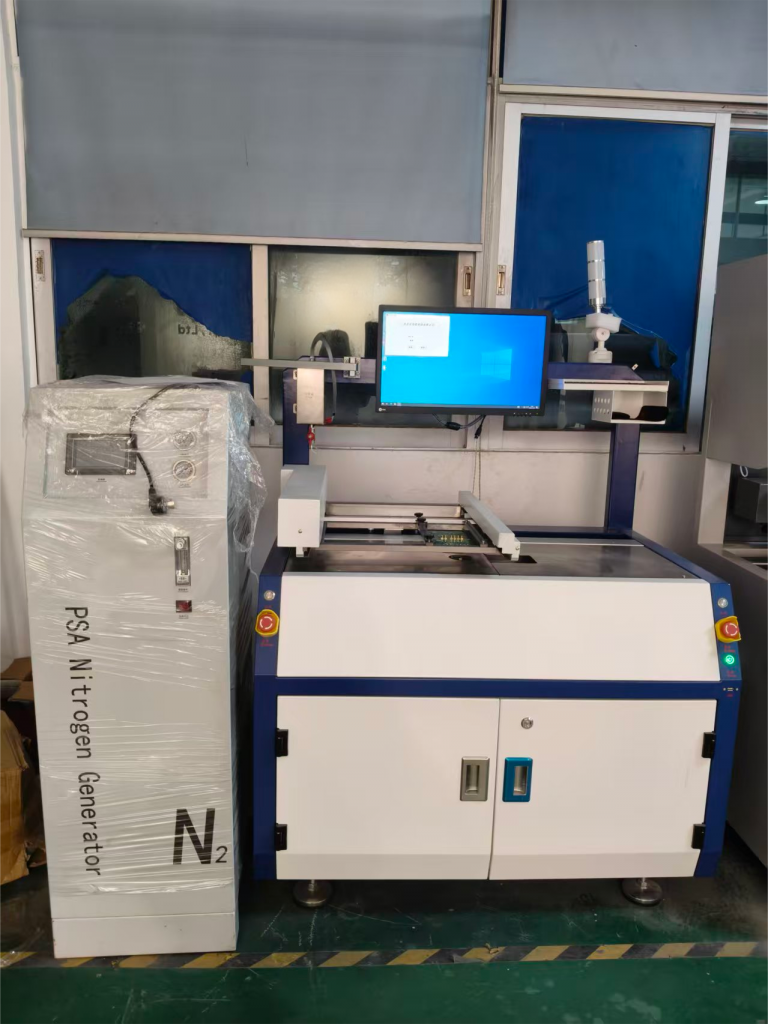

Nitrogen generator, used for selective welding -
