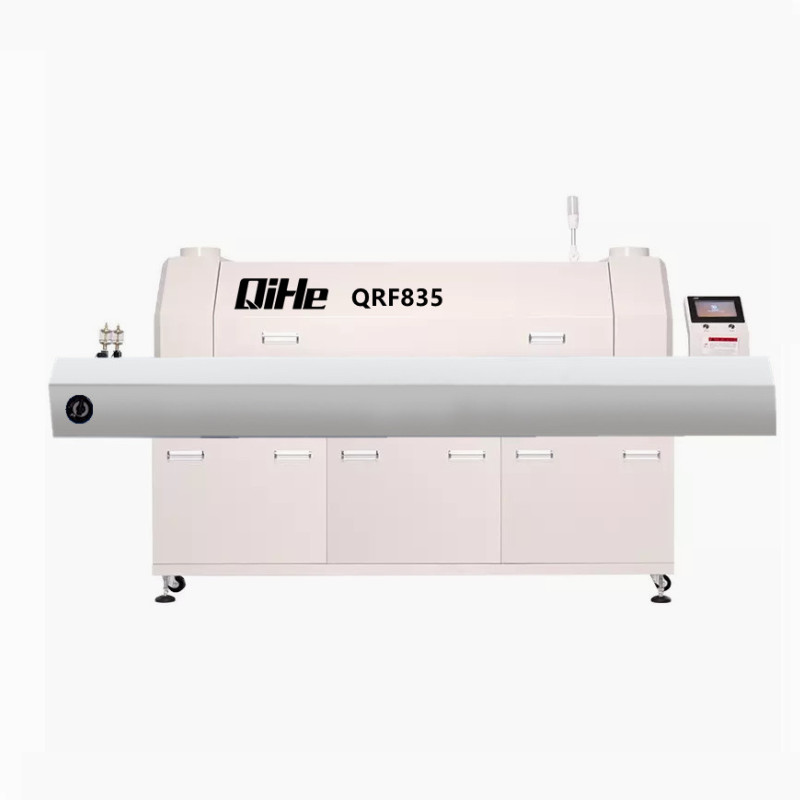

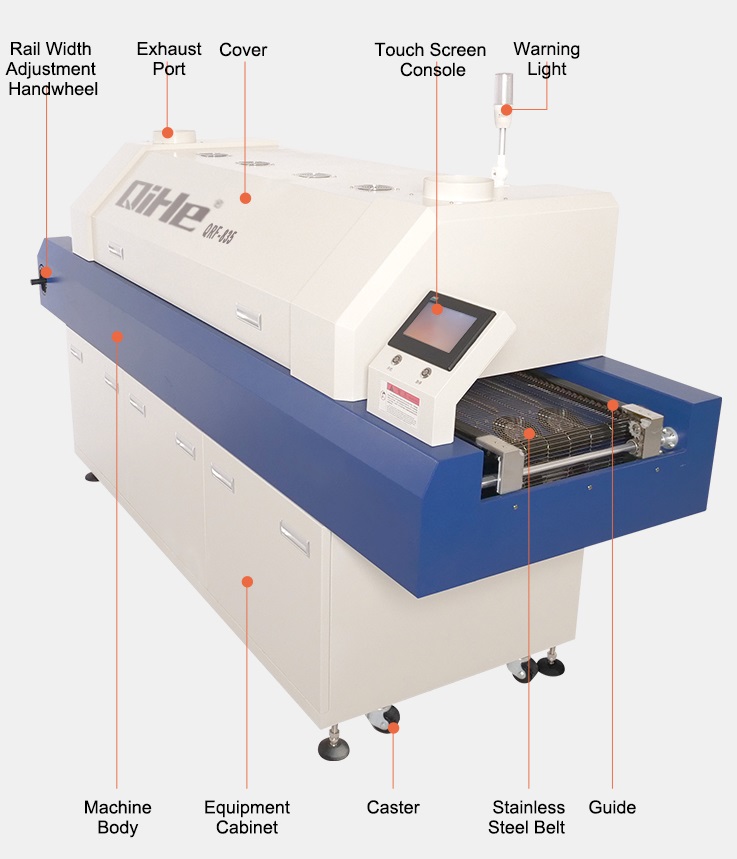

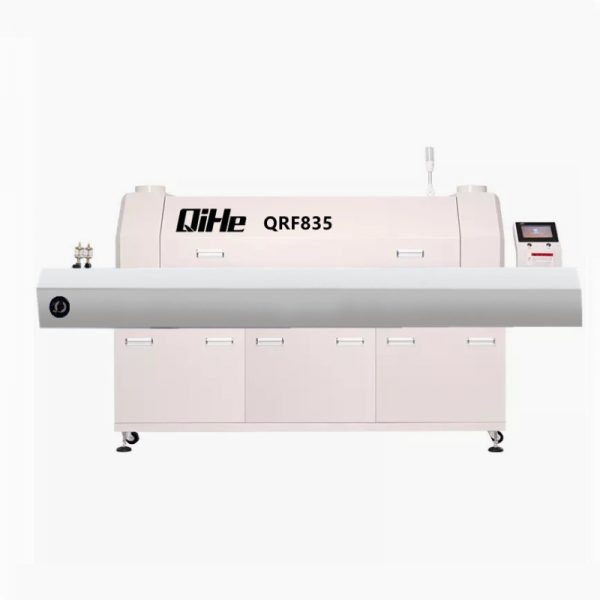

QRF835 model Reflow oven solder welding machine with rail .

Which uses the PID temperature control system and rapid infrared heating technology controlling, so the temperature is being kept very accurate and evenly distributed. The whole soldering process can be completed automatically and it is very easy to use.

It is suitable for the board has chips and output is larger or the welding quality requirements are better.

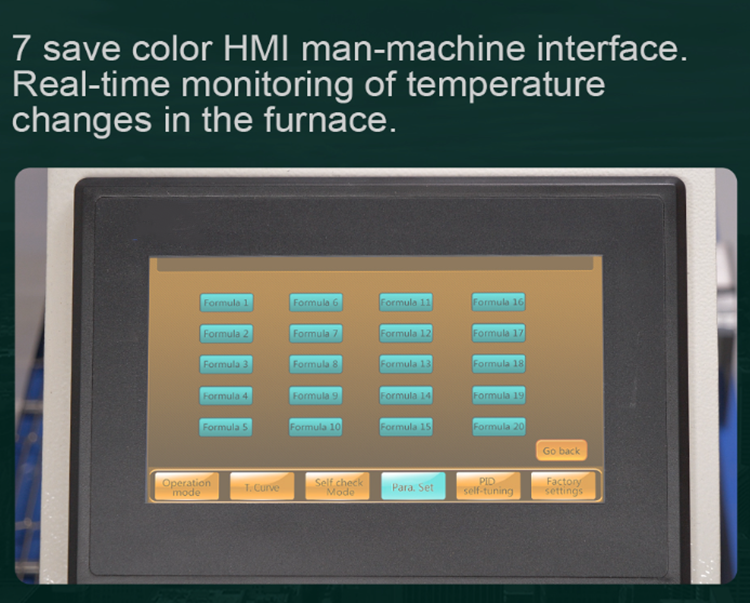

Designed with Multi-temperature curve choose.Four zones special temperature control mode more stable and precise.High quality thermocouple porcelain bead protect.Full-color HMI human-computer interface(touch screen).

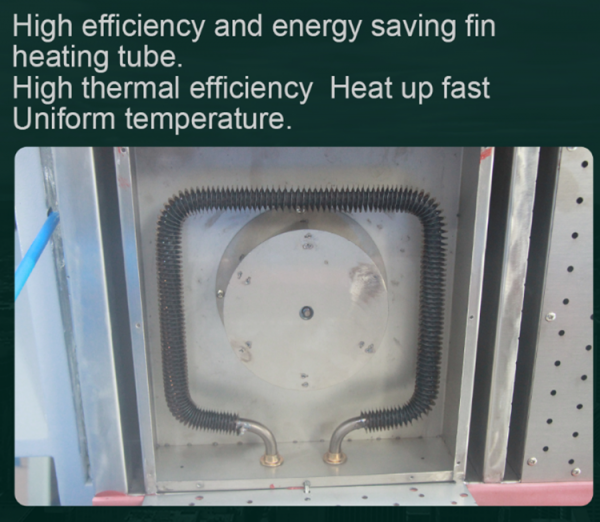

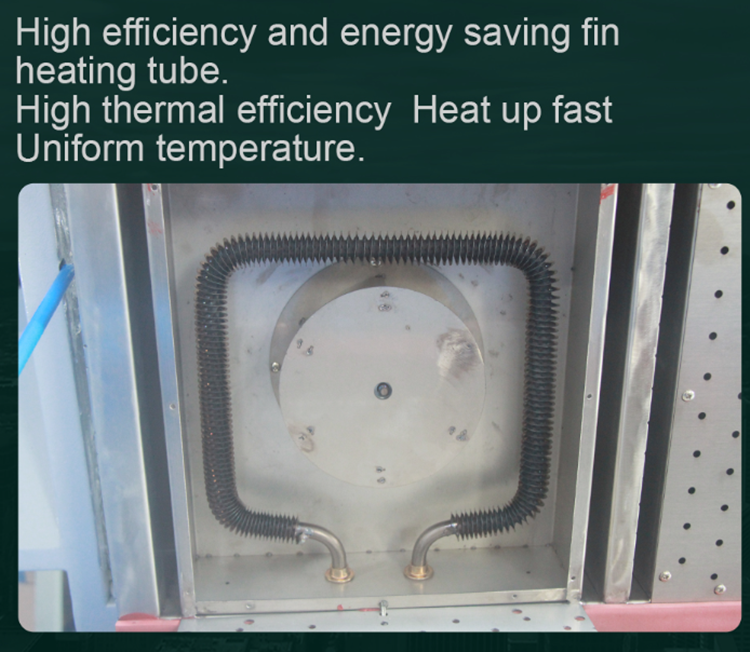

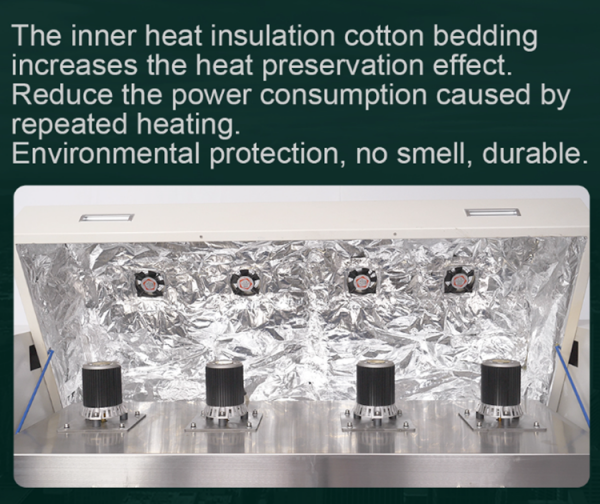

Super anti-temperature fan.Liner hearth use industrial grade anti high temperature and corrosion panel paint.PID microcomputer global temperature control system. High efficiency and energy saving finned heating tube.High temperature fan.Built in analog governor.

Heat zone numbers8 zones(Up4, Down4)
Heat methodHot wind
Cooling zone numbers3 Ventilation cooling
Length of heating zone1400mm
Width of net belt450mm
PCB sizeMax. 350mm
Height of net belt860~900mm
Transport speed of net belt160~1350mm/min(Analog quantity adjusting)

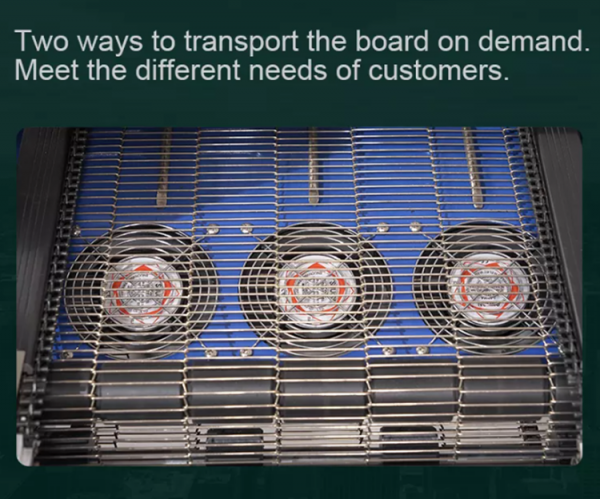

Transport direction of net beltLeft to right( right to left)
Starting power15KW
Working power3KW
Input supply powerThree-phase five-wire 380±10% 50HZ
Heat up timeAbout 20 mins
Time of passing through the machine3.5 to 5.5 mins
Range of temperature controlIndoor temperature to 400 degrees
Method of temperature controlPID close cycle control
Net weight450kg
Outline size2720x820x1360mm
