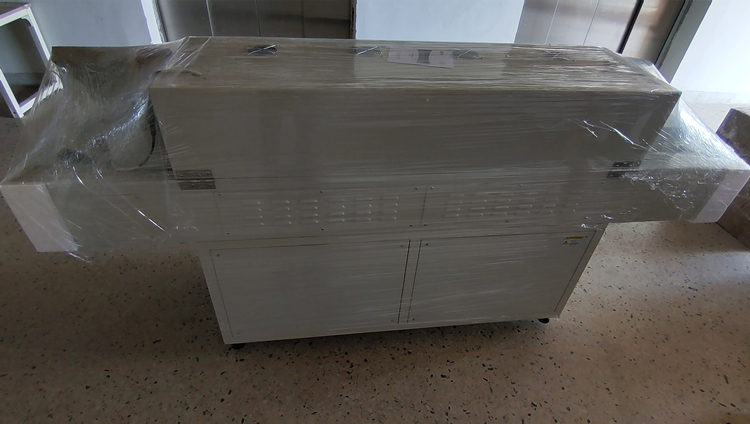

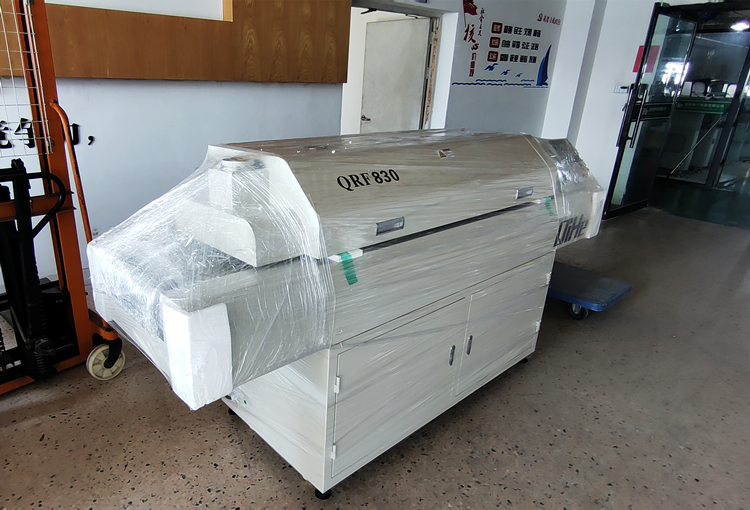

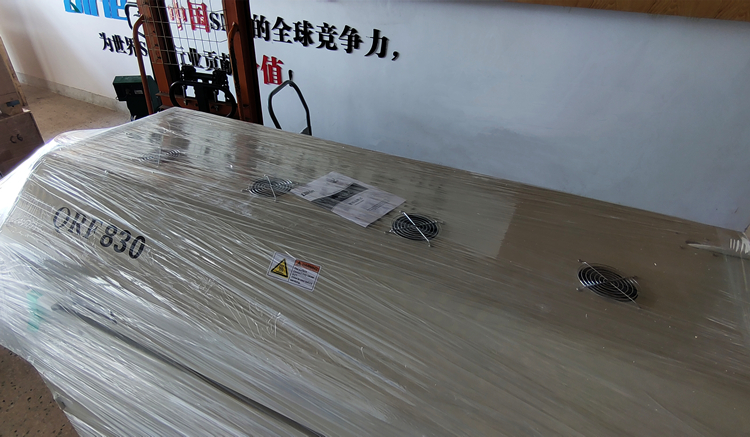

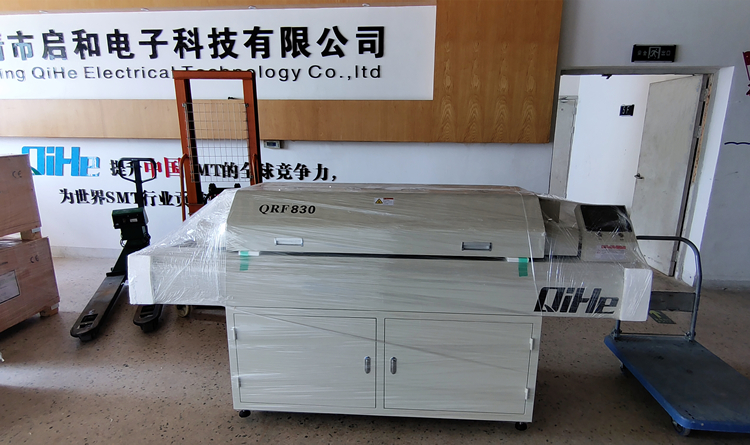

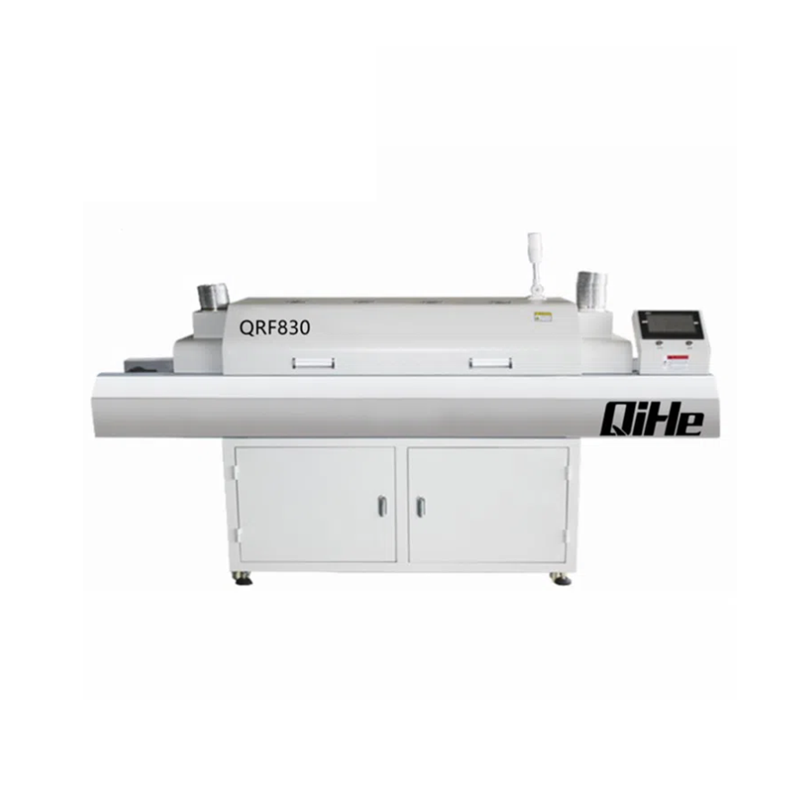

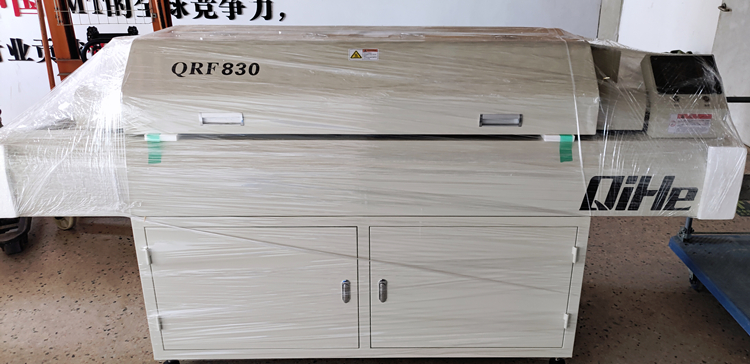

QRF830 8 Zones SMT Reflow Oven solder welding with cabinet

QRF830 infrared benchtop reflow oven is bigger size than QRF630 model SMT Reflow Oven solder welding .Which uses the PID temperature control system and rapid infrared heating technology controlling, so the temperature is being kept very accurate and evenly distributed. 8zones Hot wind , with cabinet power 3.5KW PID close cycle control size2440x680x1200mm

Description

The QRF830 reflow oven infrared benchtop type is bigger size than QRF630 model SMT Reflow Oven solder welding .

Which uses the PID temperature control system and rapid infrared heating technology controlling, so the temperature is being kept very accurate and evenly distributed. The whole soldering process can be completed automatically and it is very easy to use. It is suitable for the board has chips and output is larger or the welding quality requirements are better.Designed with Multi-temperature curve choose.Four zones special temperature control mode more stable and precise.High quality thermocouple porcelain bead protect.Full-color HMI human-computer interface(touch screen).Super anti-temperature fan.Liner hearth use industrial grade anti high temperature and corrosion panel paint.PID microcomputer global temperature control system. High efficiency and energy saving finned heating tube.High temperature fan.Built in analog governor.

ModelQRF830
Heat zone numbers8 zones(Up4, Down4)
Heat methodHot wind
Cooling zone numbersTwo natural air cooling
Length of heating zone1400mm
Width of net belt300mm
PCB size280mm
Height of net belt900±20mm
Transport speed of net belt160~1350mm/min(Analog quantity adjusting)
Transport direction of net beltLeft to right( right to left)
Starting power11KW
Working power3.5KW
Input supply powerThree-phase five-wire 380±10% 50HZ
Heat up timeAbout 20 mins
Time of passing through the machine3.5 to 5.5 mins
Range of temperature controlIndoor temperature to 400 degrees
Method of temperature controlPID close cycle control
Net weight250kg
Outline size2440x680x1200mm
