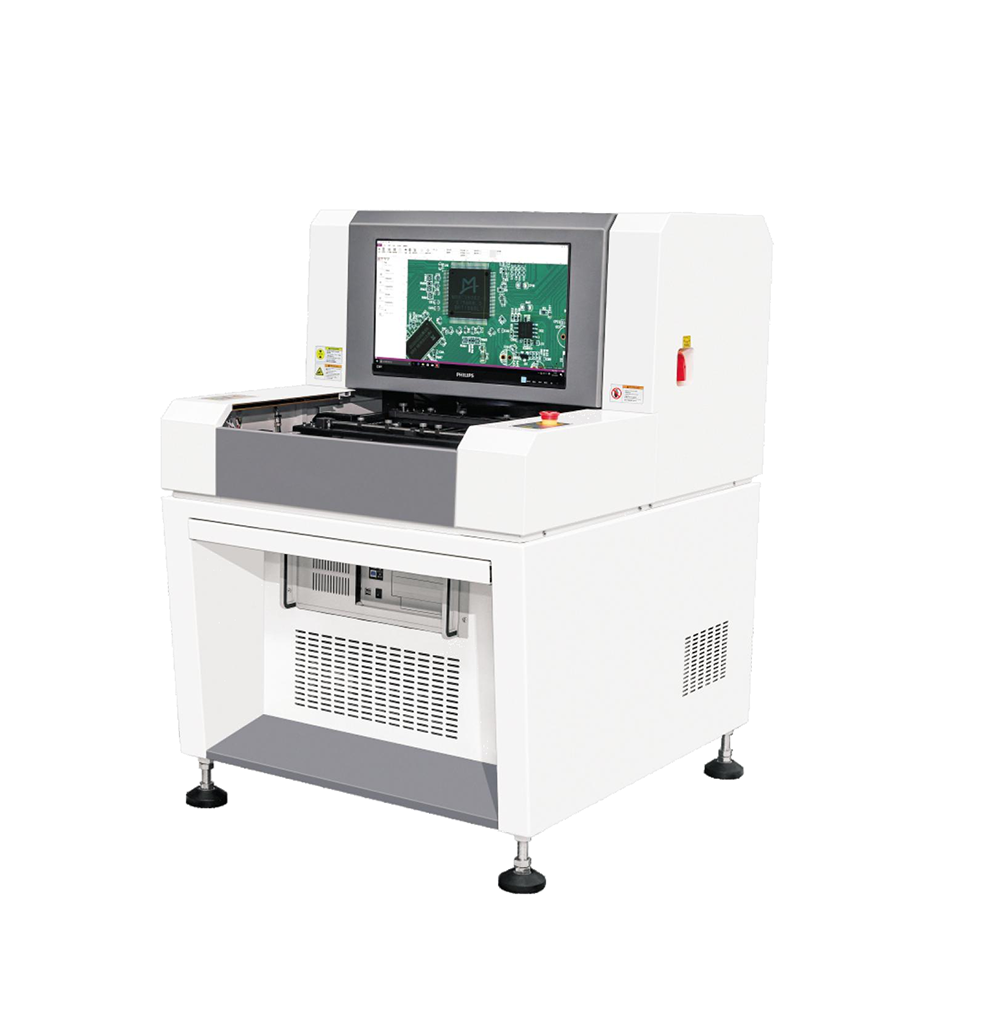

| Categories | Item | Specifications |
| Shipping | PCB flow direction | N/A |
| Width adjustment | Manual |
| Orbit determination | In front ( standard ) |
| NG/OK signal | Standard NG/OK signal interface | N/A |
| Visual recognition system | Discrimination method | Logic algorithm, picture comparison, color image contrast/contour contrast/binarization reference contrast, comprehensive application, simple operation and programming |
| Camera | CCD color camera ,resolution; 10 microns /point |
| Light source | RGB ring LED structure light source |
| Image processing speed | 0201 CHIP | >6ms |
| Processing time per picture | >100ms |
| Test content | Paste printing | Presence,skewness,less tin,multiple tin,open circuit,pollution |
| Part defects | Missing parts，offsets，skewed，tombstones，sideways， overturned parts，reverse polarity，wrong parts， broken parts |
| Solder joint defects | Multiple tin. less tin, continues tin |
| Mechanical System | PCB size | 25*25mm ~ 380*480mm , Special requirements can be customized |
| PCB thickness | 0.5mm-2.5mm |
| PCB warpage | 〈2mm With fixture assisted correction, special requirements can be customized. |
| Pare height | 0.5-25mm, Special requirements can be customized |
| The smallest part | 01005 element |
| X,Y platform | Driving equipment | Mitsubishi Servo Motor System |
| Accurate positioning | 〈25um |
| Moving speed | 700mm/s(MAX) |
| Software System | Operating System | Microsoft Win7 Pre-installation: Microsoft Win 7/Win10 |
| Identification Control System | Features | Statistical shape modeling, Learn OK samples, Automatic Establishment of standard image, identification data and error thresholds |
| Operation | Graphical programming， built-in component library， automatic generation of detection frame according to component shape selection criteria， precise automatic positioning， micro-position trimming， and rapid process |
| Mark | Points | 2 common Mark points can be selected to make multiple Mark function |
| Recognition speed | 0.5S/PCS |
| QR Code Reading | HONEYWELL (1900G) | Read the QR code on the PCB through the camera of the device and link it with the repair station.(Optional) |
| Control System | Computer | Intel CPU，DDR4 4G，SSD240G |
| Display | 24 inch LED display |
| Other parameters | Mechanical dimension | 860mm*960mm*1350mm |
| Weight | 350 KG |
| Power supply | AC 220V 50/60HZ, 600W |
