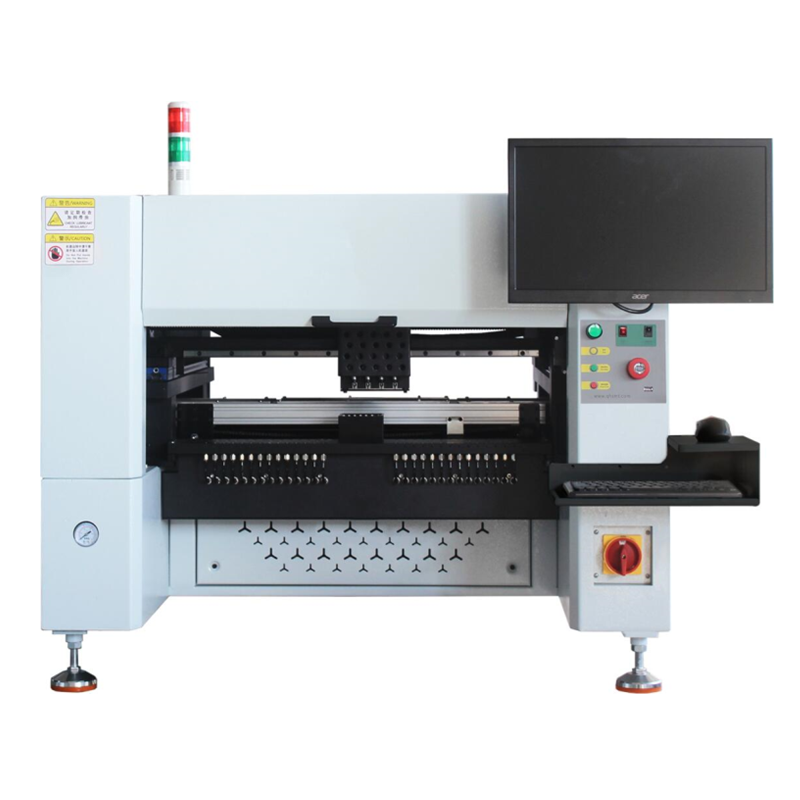

TVM926S (customized model) SMT pick and place machine 4heads 63slots With Rail Benchtop Pick&Place Machine

TVM926S,4heads,63slots,with rail,servo motor,screw rod,


The TVM926S smt pick and place machine is designing from the TVM926 model and combined the technology from QM61 series.

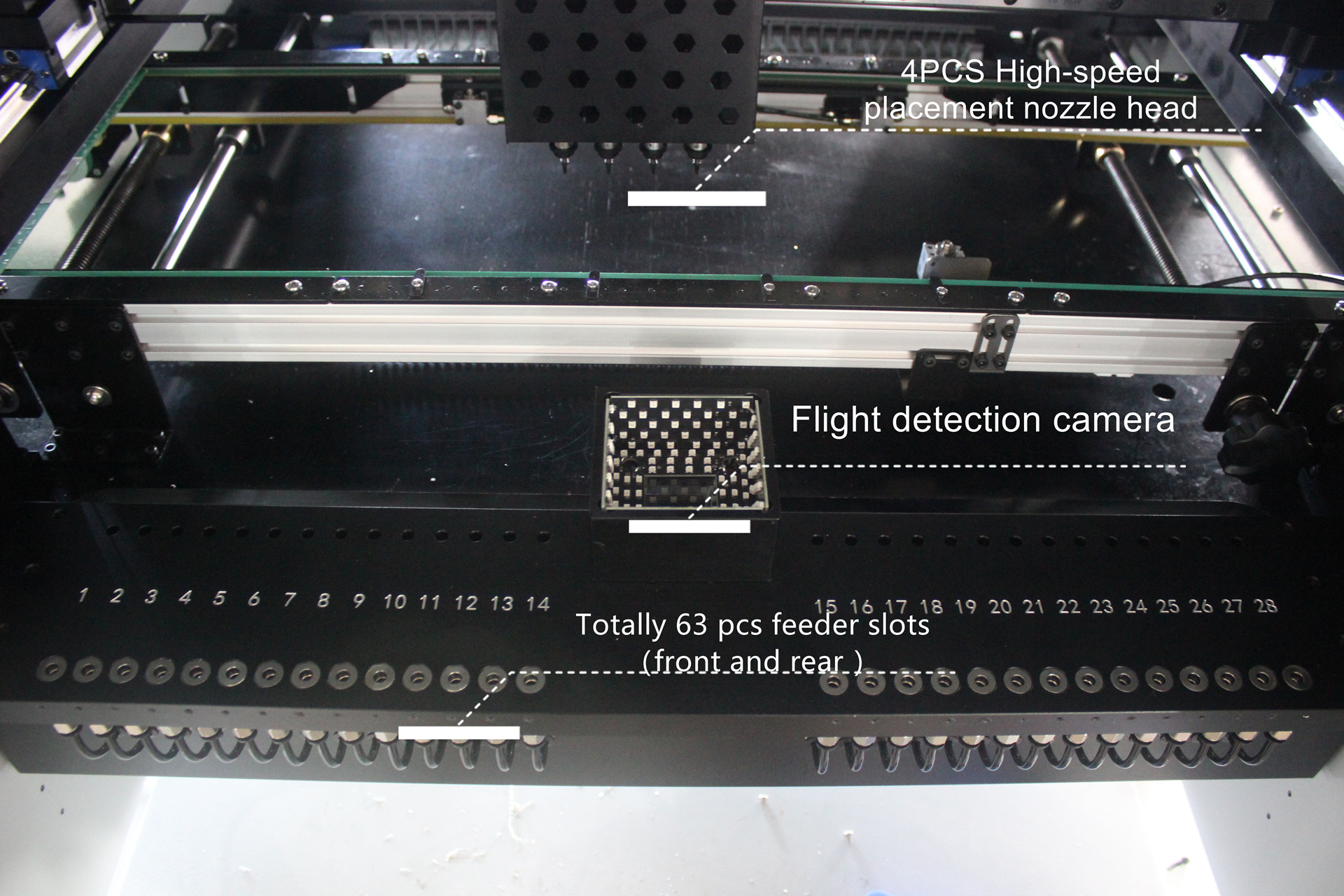

It increased the hardware like the flight camera,the servo driver and motor,the TBI screw rod,and the automatic transfer rail .
Upgraded the software functional such as the component library,the visual surveillance,the safety alerts,the fault previously warning .
Can handling special-shaped components, BGA, 0201 inch package.
X Y axis adopts servo motor, speed of up to 9500 components per hour (CPH).

Max applicable PCB50*50mm~350x350mm
XY moving range550*700mm
Z moving range±15mm
Placement head quantity4
Mounting capabilityVision Off: 9500pcs/h
Vision On: 6500pcs/h
Mounting accuracy0.025mm
Applicable components0201,0402,0603,0805,sop8 etc.
Components supplyTape reel. bulk package(IC)tubes
PCB transfer directionLeft→Right
Control Systemservo motor+TBI Screw Rod
Tape width8mm. 12mm. 16mm. 24mm
Feeders loading ability63 slots (YAMAHA Feeder is available)
Machine dimensionL1200xW1440xH920mm
Visual camera1 PCB inspection camera , 1 Flying camera
Visual camera(down)Automatic identify the mark point
Visual camera(up)Automatic adjust the offset
Vacuum pump qualityExternal air pump
Power supplyAC220V
Average working Power360W
Gross weight300KG
Packing size1.60CBM
tvm925s,SMT pick and place machine,smd machine,pcb assembly,chip mounter,pnp machine,tvm925,tvm926,tvm925s,tvm926s,tvm925 p&p machine,tvm926 p&p machine,tvm925s p&p machine,tvm926s p&p machine,tvm925 pnp machine,tvm926 pnp machine,tvm925s pnp machine,tvm926s pnp machine,tvm925 pick and place machine,tvm926 pick and place machine,tvm925s pick and place machine,tvm926s pick and place machine,tvm925 pick&place machine,tvm926 pick&place machine,tvm925s pick&place machine,tvm926s pick&place machine,tvm925 benchtop pnp machine,tvm926 benchtop pnp machine,tvm925s benchtop pnp machine,tvm926s benchtop pnp machine,tvm925 desktop pnp machine,tvm926 desktop pnp machine,tvm925s desktop pnp machine,tvm926s desktop pnp machine,tvm925 automatic pick and place machine,tvm926 automatic pick and place machine,tvm925s automatic pick and place machine,tvm926s automatic pick and place machine,tvm925 rail pick and place machine,tvm926 rail pick and place machine,tvm925s rail pick and place machine,tvm926s rail pick and place machine,tvm925 pnp machine with rail,tvm926 pnp machine with rail,tvm925s pnp machine with rail,tvm926s pnp machine with rail,tvm925 used pnp machine,tvm926 used pnp machine,tvm925s used pnp machine,tvm926s used pnp machine,used tvm925 pnp machine,used tvm926 pnp machine,used tvm925s pnp machine,used tvm926s pnp machine,

What is SMT in engineering?

Surface mount technology is a part of the electronic assembly that deals with the mounting of electronic components to the surface of a PCB. Electronic components mounted this way are called surface-mounted devices (SMD). SMT was developed to minimize manufacturing costs while making efficient use of board space.Qihe SMT company develops and produces all kinds of SMT equipment suitable for world wide market, including pnp machine,reflow oven,stencil printer,pcb handling machines,and other products.
Small desktop pick and place machine TVM802A,TVM802B,TVM802AX,TVM802BX series suitable for beginners, for hobbiest or low vol usag.
Advanced level 4-head LED strip placement QL41 led machines and with rail universal series TVM925S,TVM926S,
Fully automatic 6-10-head placement QM61,QM62,QM81,QM10,machines, which are suitable for high volume mass production in factories.
