QFA5060 automatic solder paste printer stencil printer machine screen printer machine

Description

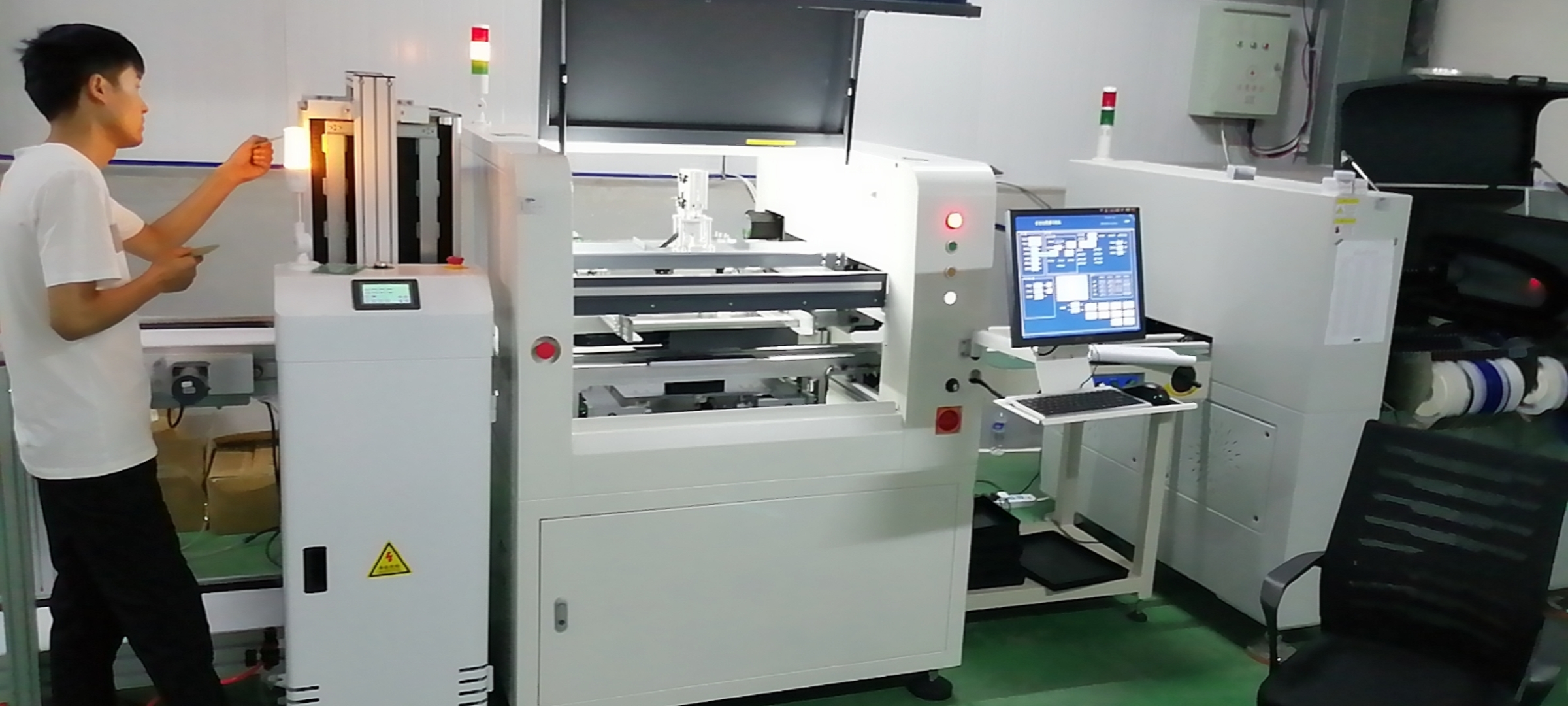

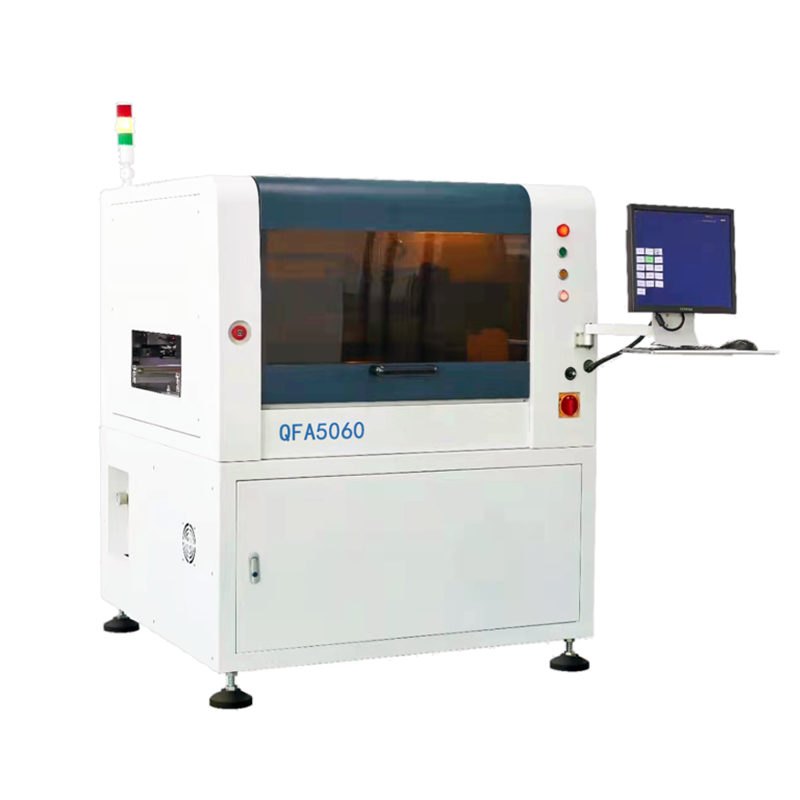

QFA5060 automatic solder paste printer (fully automatic vision solder paste printer) stencil printer machine screen printer machine

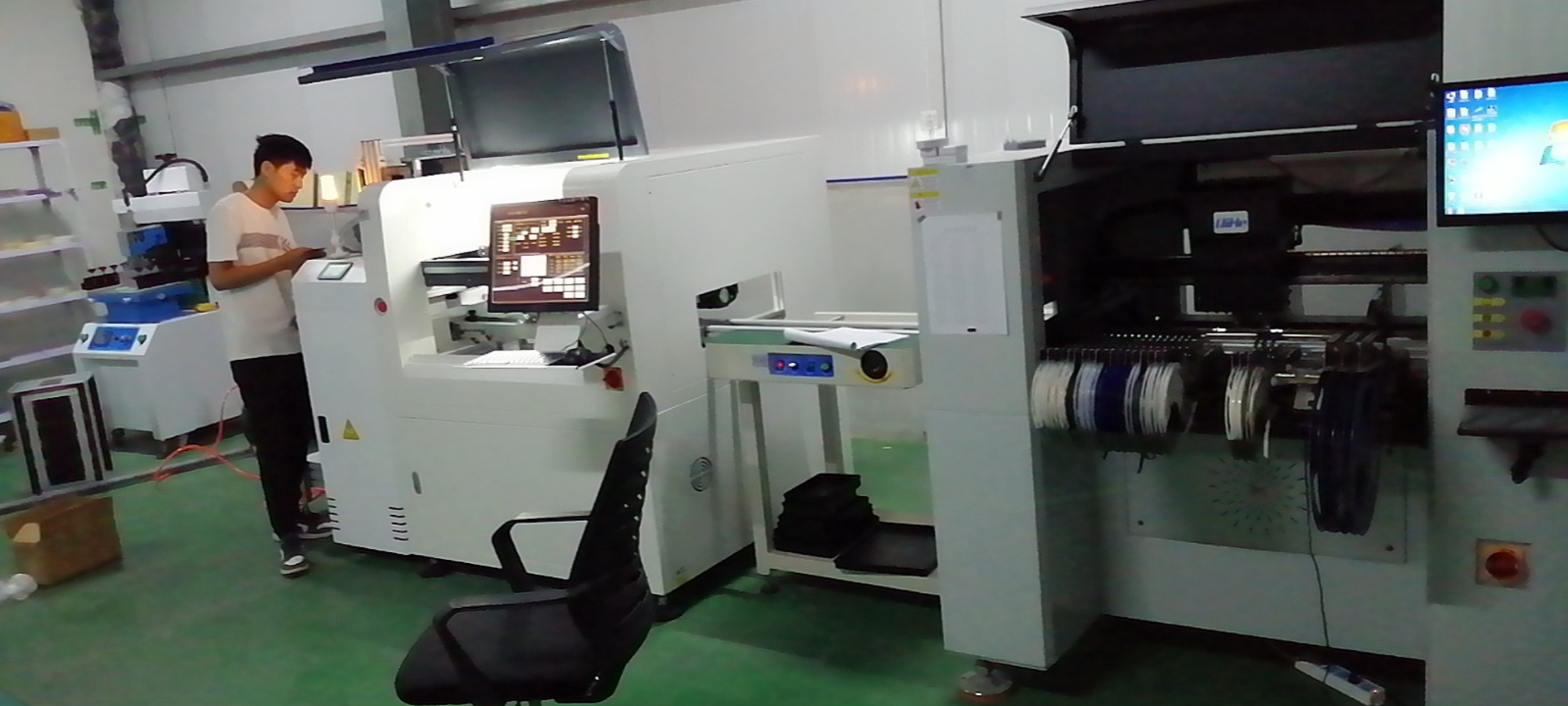

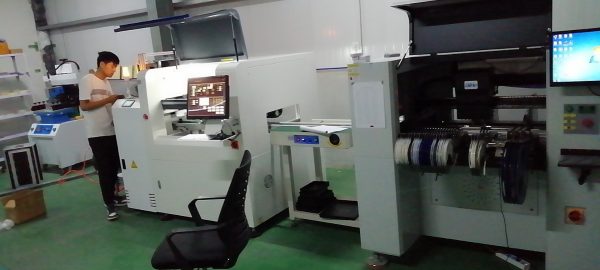

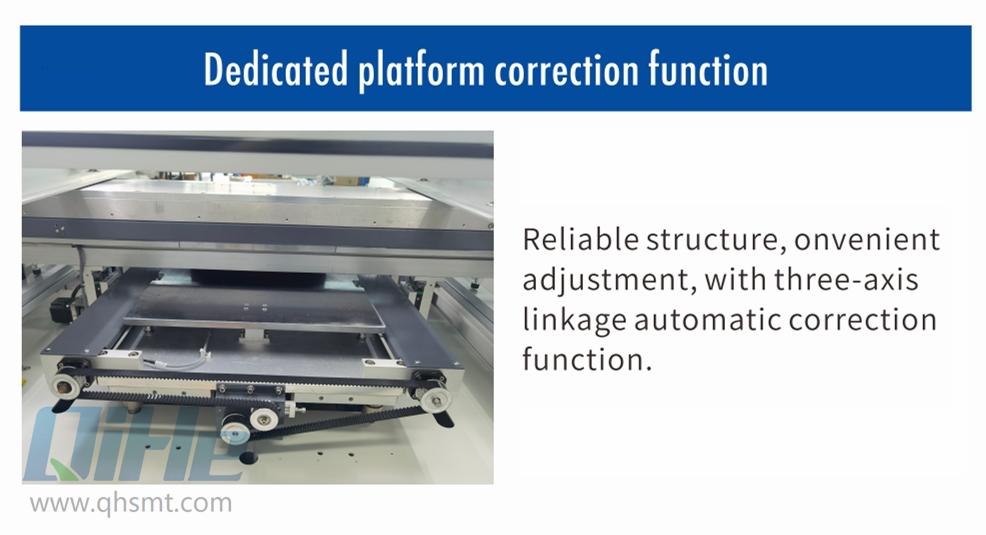

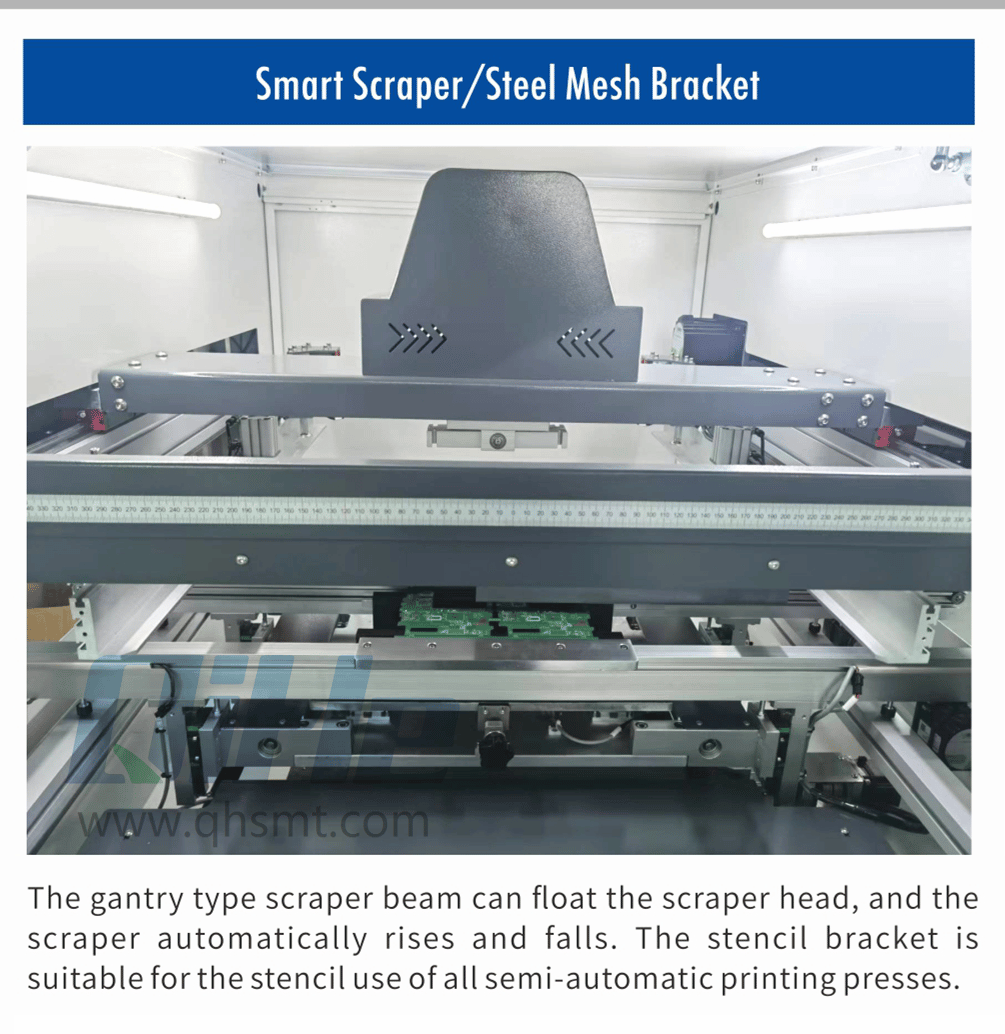

The whole machine is fully controlled by servo system.Automatic pressure feedback system.Multifunctional image processing system.Precise PCB transportation system.Intelligent PCB holding device.User-friendly operation interface.

Parameters

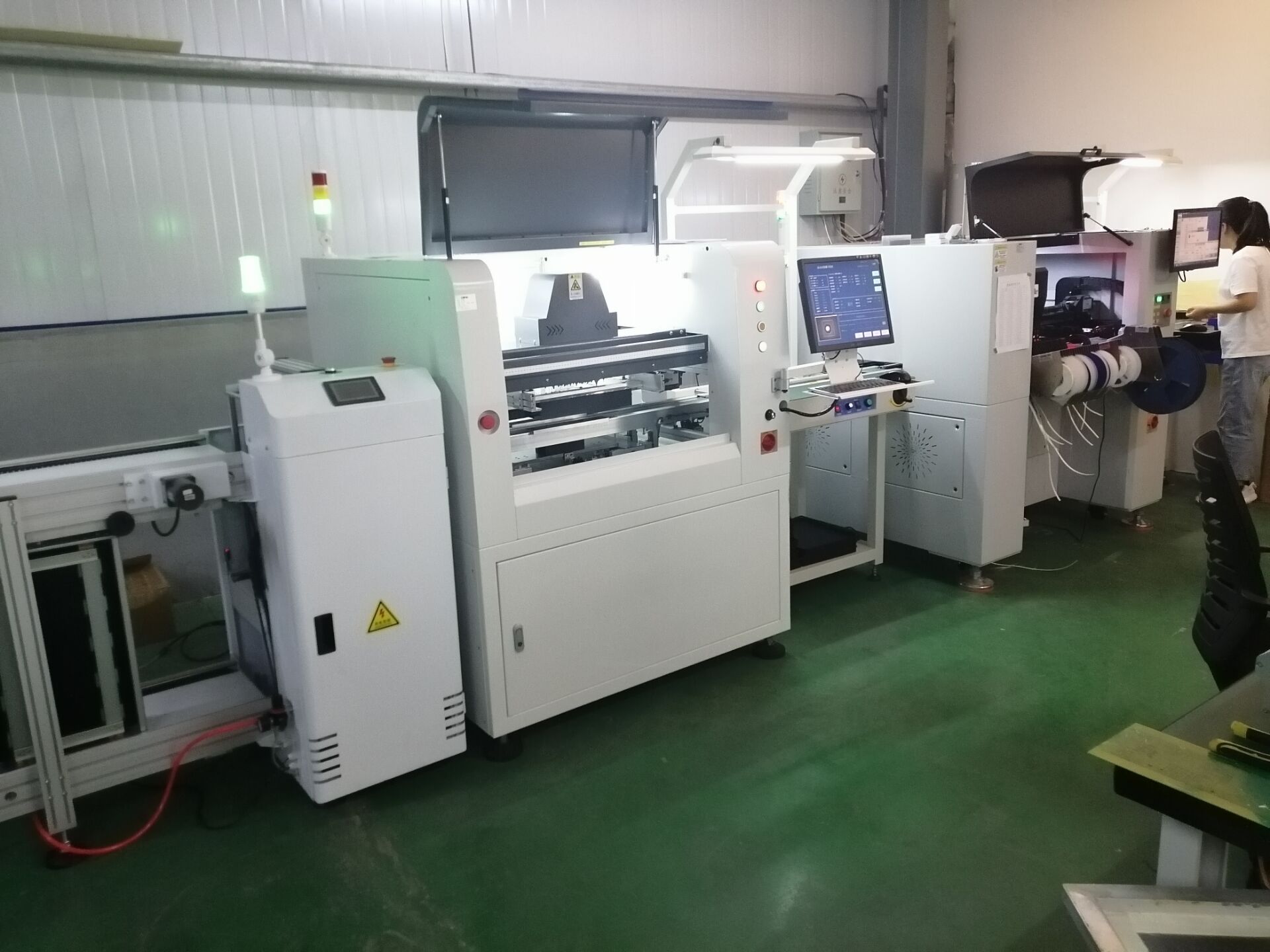

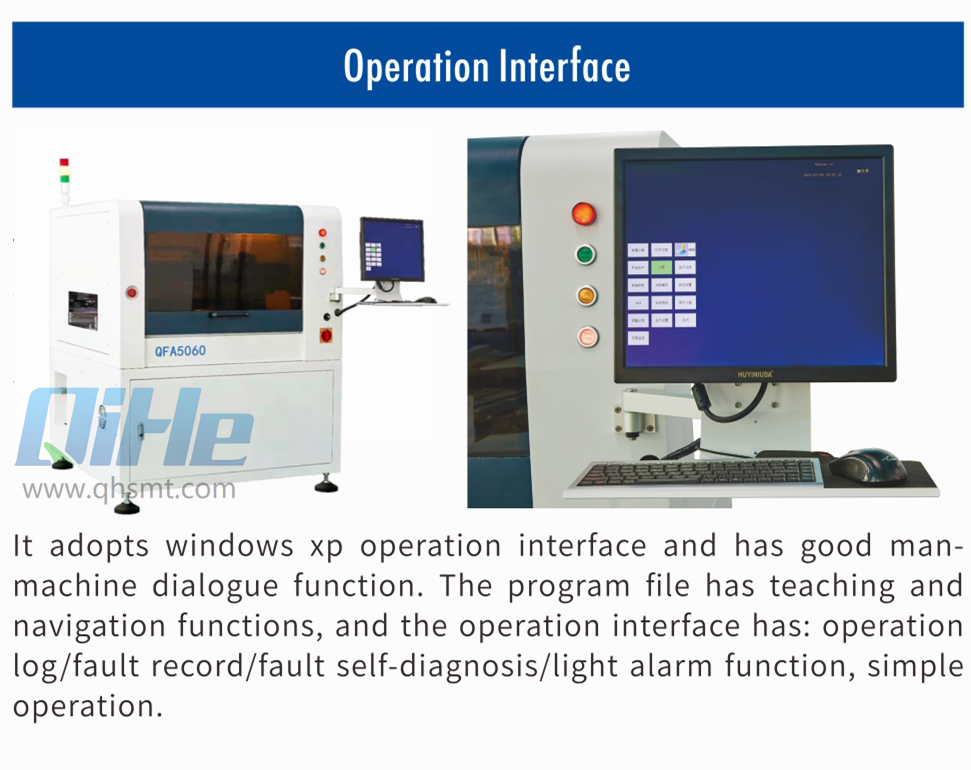

operating systemWindowsXP operation interface
signal connectionSMEMA connector

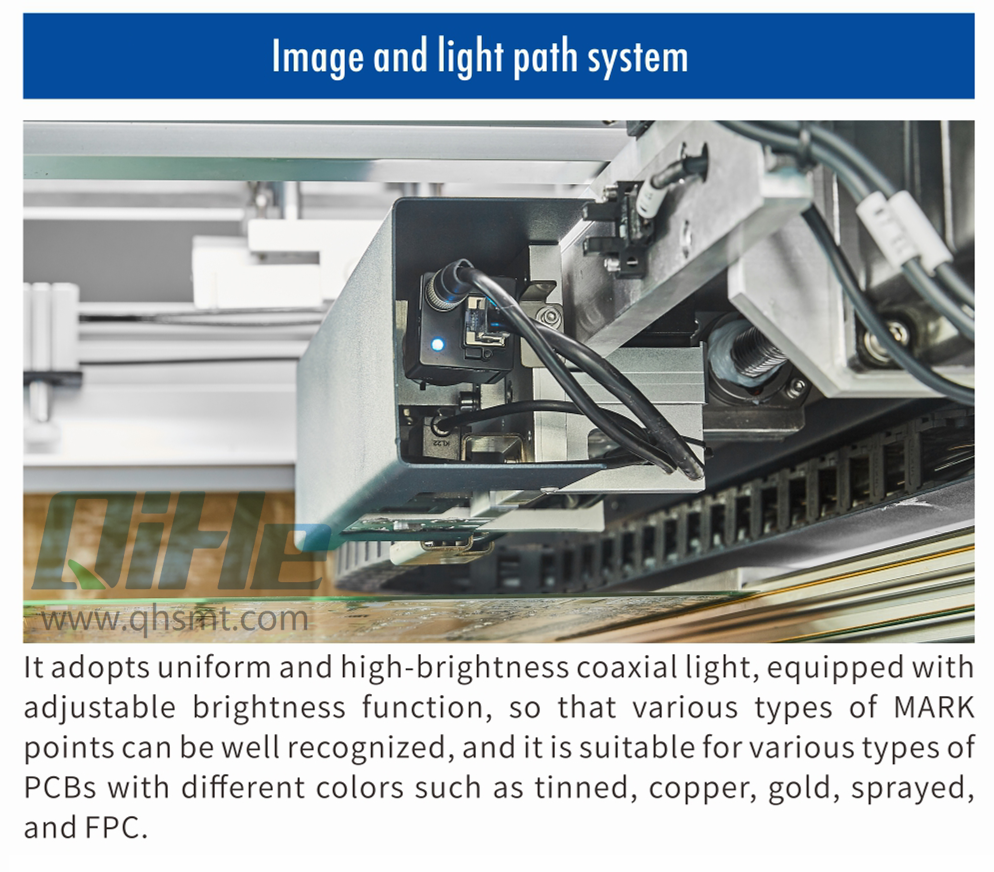

visual parametersHigh-performance CCD and image processing system
Repeat printing accuracy±0.015mm
Printing accuracy±0.025mm
printing cycle<8s/block (excluding printing and cleaning time)
Steel mesh size370*370mm~600*800mm
Screen frame fixedair cylinder
PCB sizeMin 50×50 mm , Max 600×400 mm
PCB thickness0.4 ~ 6mm
PCB weight≤3kg
Support methodMagnetic ejector pin, magnetic ejector pin, manual crimping

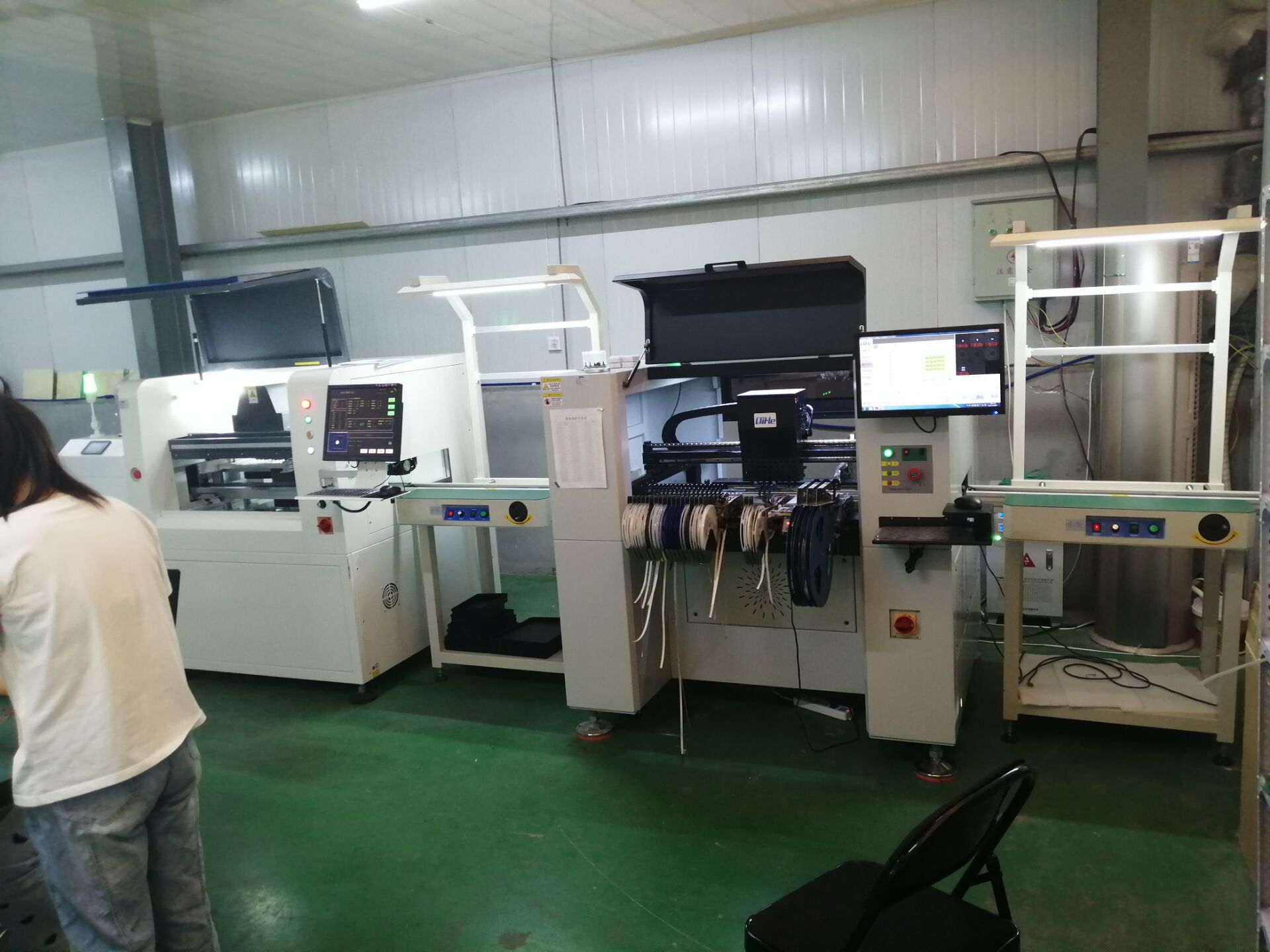

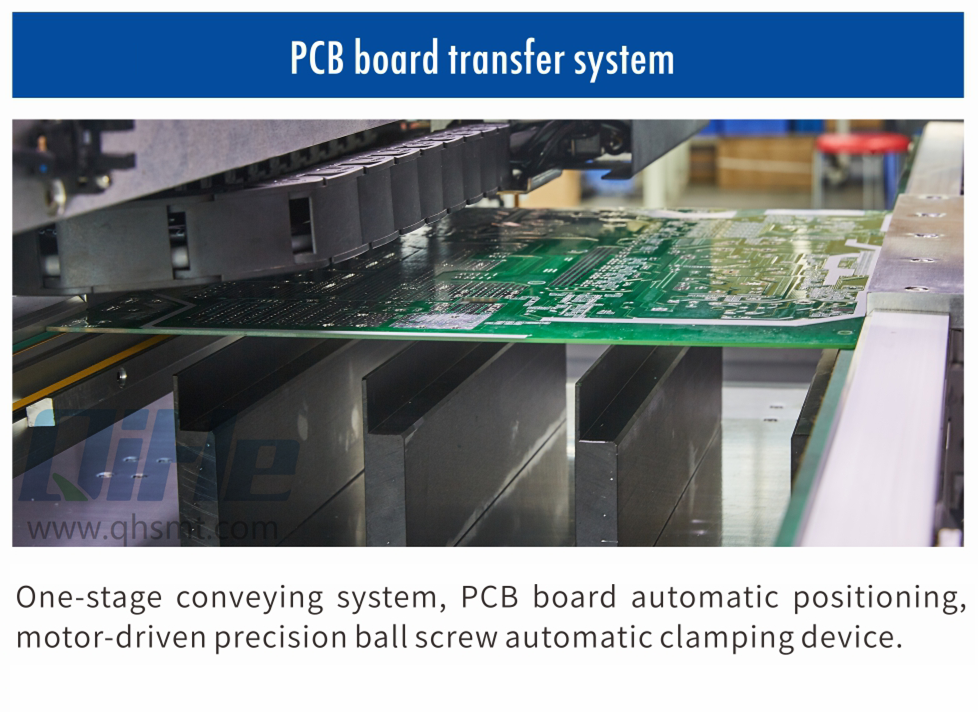

delivery systemOne-stage conveyor system
Transmission directionLeft-right/right-left/left-left/right-right (software control)
UVW platform adjustment rangeNot less than X: ±3mm; Y: ±7mm; e: ±2°
PCB transfer height900±40mm
Platform adjustment angleZ:±2°
Squeegee pressure0.5~10Kg
demoulding speed0~20mm/s adjustable
scraper angleStandard 60°
software updatefree software upgrades
Air source4~6 Kgf/cm2
main power supplyAC: 220±10%, 50/60HZ, 2.5KW
DimensionsL1200*W1200*H1460
Net weight435kgs
