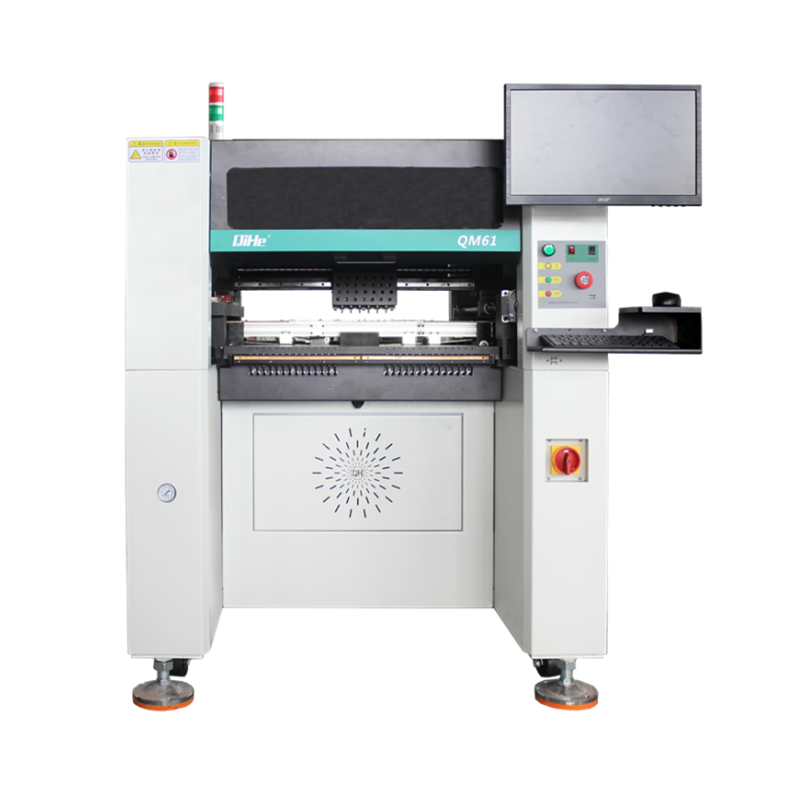

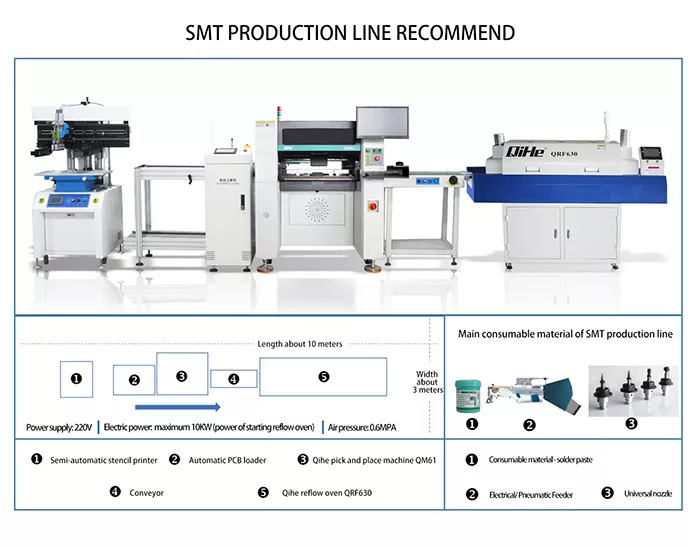

QM61 SMT pick and place machine 6heads 63slots Fully Automatic Pick&place machine SMT Assembly chip mounter

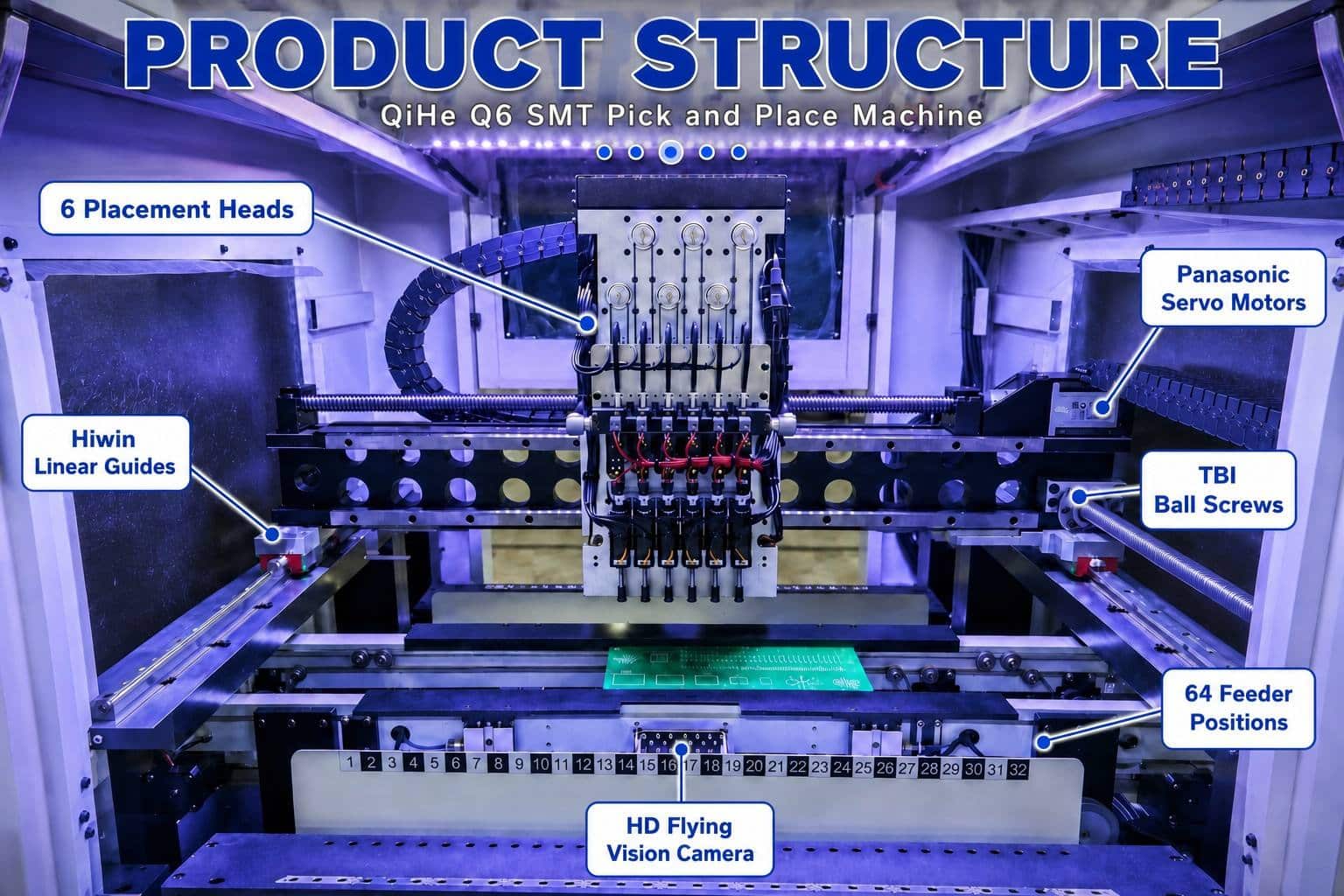

QM61 contains 6 heads,63 slots .The hardware including flying shot recognition camera,the Hiwin linear rail,the TBI grinding screw,the master computer ，triple stage transmission rail system.

Categories: , Tags: , , , , , , , ,

Description

QM61 SMT pick and place machine is designed for mass production or R&D proofing purpose. It contains 6 heads,63 slots .
The hardware including flying shot recognition camera,the Hiwin linear rail,the TBI grinding screw,the master computer ，triple stage transmission rail system.
Upgraded the software functional such as the component library ,the visual surveillance,the safety alerts,the fault previously warning .
QM61 pick&place machine can easily handling special-shaped components, BGA, 0201 inch package.
QM61 chip mounter X Y axis adopts bigger Panasonic servo motor, speed up to 15000 components per hour (CPH),

ModelQM61
Max applicable PCB size350*350mm/600mm
Max xy moving range700*500mm
Max z moving range20mm
Placement head quantity6
Max mounting capabilityVision on: 11000pcs/h
Vision off: 15000pcs/h

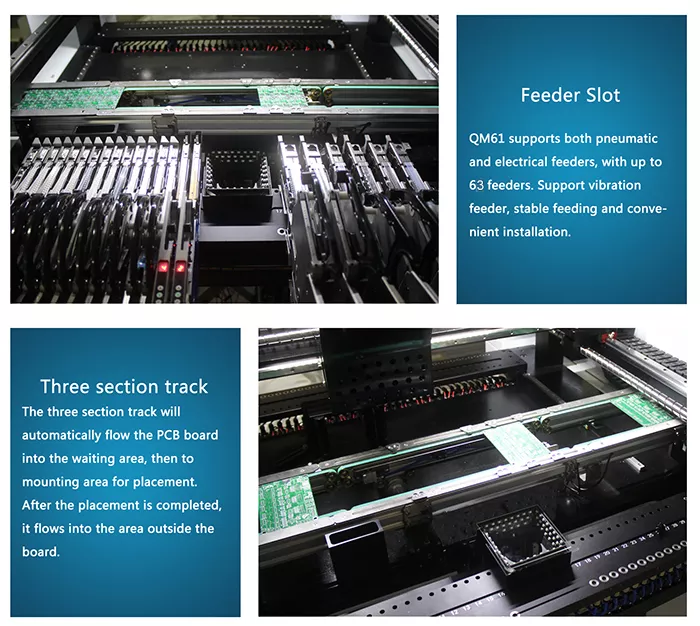

Feeder slots capability63 (YAMAHA Feeder is available)
Applicable component  Smallest size:0201 inch
Largest size:22*22mm
Max mounting Height15mm
Visual camera Flight  HD CCD camera
Powerabout1200W
Power supply220V
Net Weight814kg
Gross Weight900kg
Machine Dimension1325*1120*1320mm
Packing Dimension1360*1260*1460mm
Packing size2.70CBM
