Q4 SMT pick and place machine 4heads 50slots With PCB Rail Servo Pick&Place Machine

Q4,smt,4heads,50slots,fully auto with rail,servo motor,

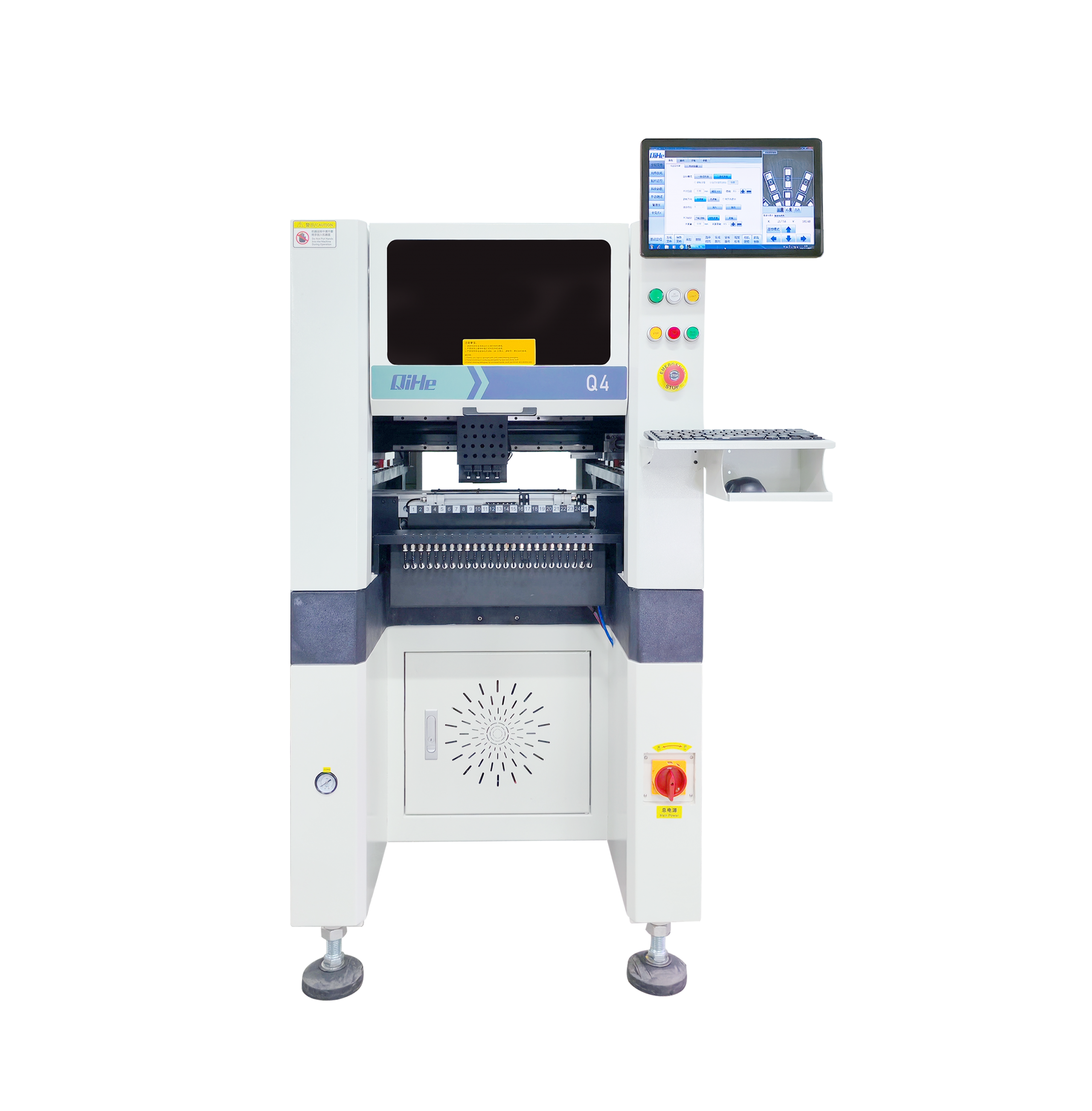

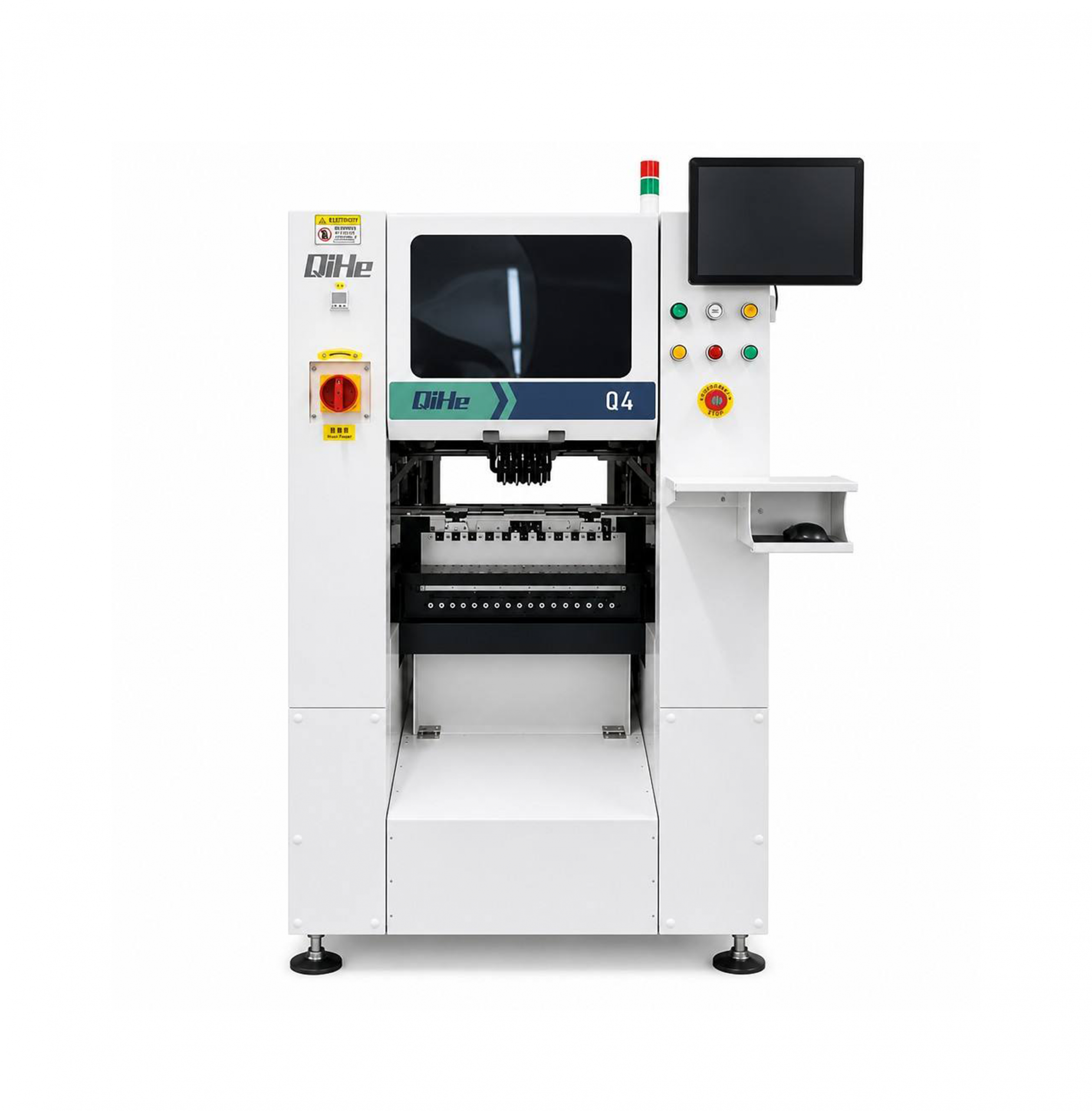

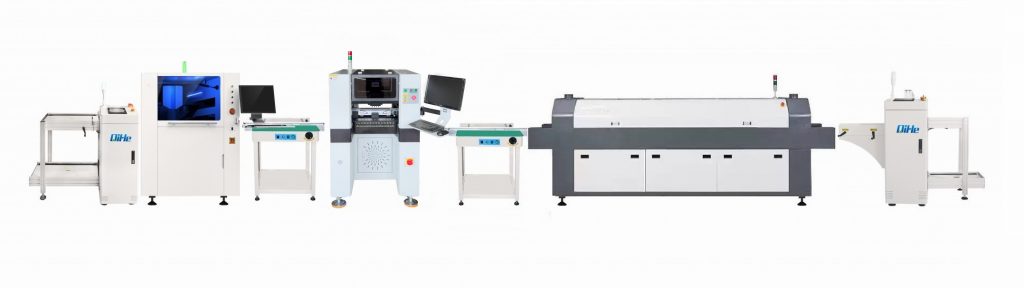

Qihe Q4 smt pick and place machine adopts a new design 4 Pick & Place working nozzles with fully automatic railguide.Q4 pnp machine top speed up to 13000 components per hour (CPH)
Newly upgraded the hardware like the highspeed flight camera,the servo driver and motor,the TBI screw rod,and the automatic transfer rail .The substrate iron plate inside the machine upgrade into thickened marble material not only increase stability but also improve the accuracy of the working head during high-speed movement .

Observation windows are added on both left and right sides of the machine, allowing the operator to observe the operation of the equipment from multiple angles and facilitating subsequent maintenance.

The newly designed monitor & keyboard integrated stand tray is more ergonomically designed and can be adjusted at multiple angles according to the smt operator’s habits, replacing the traditional fixed stand.
Upgraded the software functional such as the component library,the visual surveillance,the safety alerts,the fault previously warning .
Can handling special-shaped components, BGA, 0201 inch package.
X Y axis adopts servo motor, top speed up to 13000 components per hour (CPH).

Max applicable PCB50*50mm~400x330mm
XY moving range360*670mm
Z moving range±15mm
Placement head quantity4
Mounting capabilityMaximum speed: 13000pcs/h
average speed: 8000pcs/h
Mounting accuracy0.025mm
Applicable components0201,0402,0603,0805,sop8,QFN,BGAetc.
Components supplyTape reel. bulk package(IC)tubes
PCB transfer directionLeft→Right
Control SystemXY axis Panasonic servo motor,Panasonic high speed DSP driver,TBI High Precision Screw Rod
Tape width8mm. 12mm. 16mm. 24mm
Feeders loading ability50 slots (YAMAHA Feeder is available)

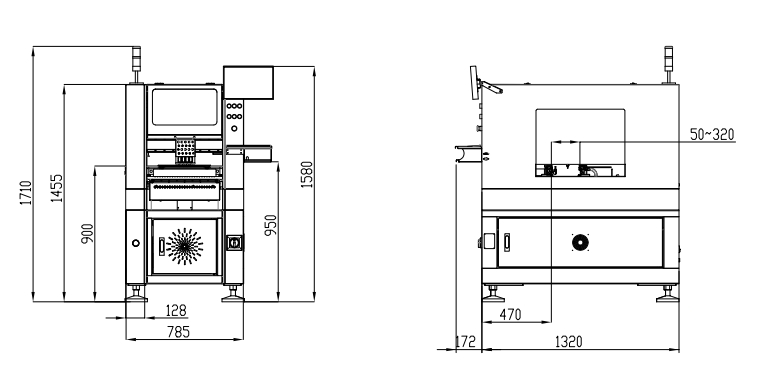

Machine dimensionL850xW1320xH1450mm
Visual camera1 PCB inspection camera , 1 Flying camera
Visual camera(down)Automatic identify the mark point
Visual camera(up)Automatic adjust the offset
Vacuum pump qualityExternal air pump
Power supplyAC220V
Average working Power330W
Gross weight667KG
Packing size1.63CBM
