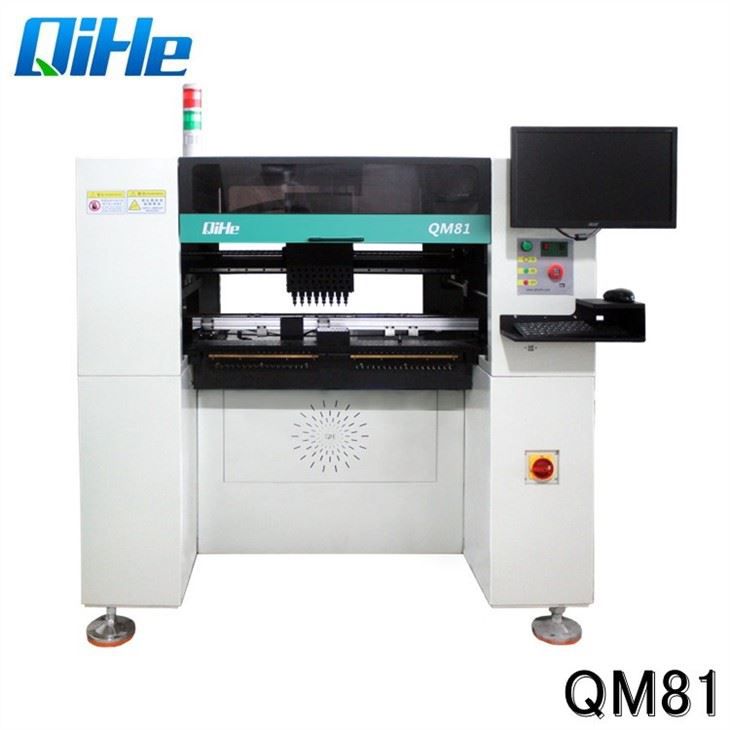

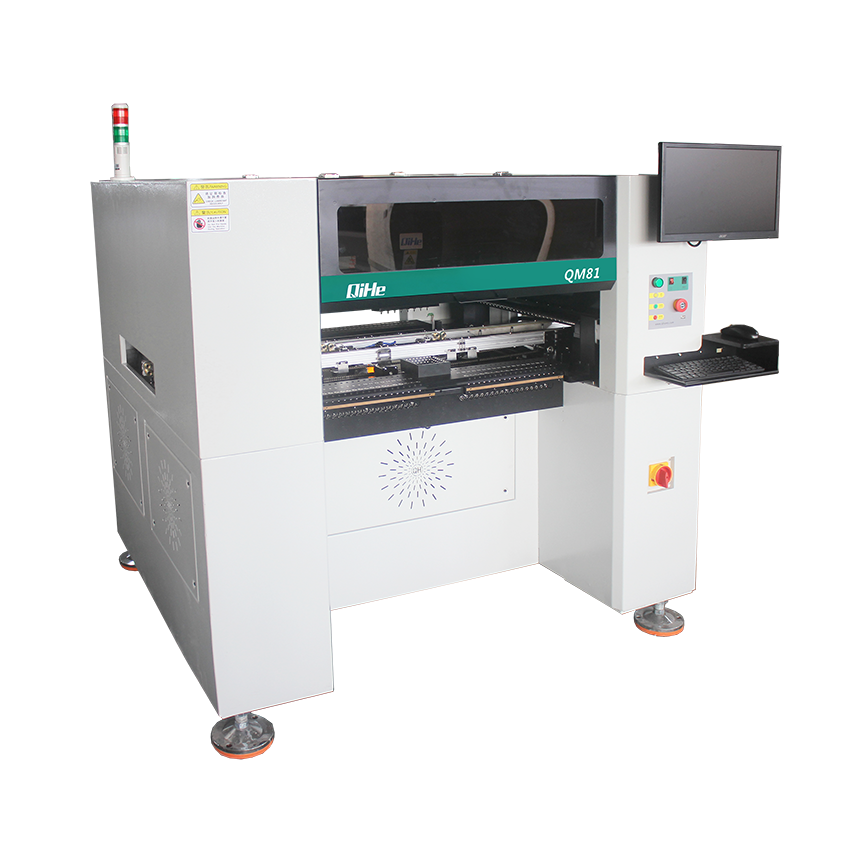

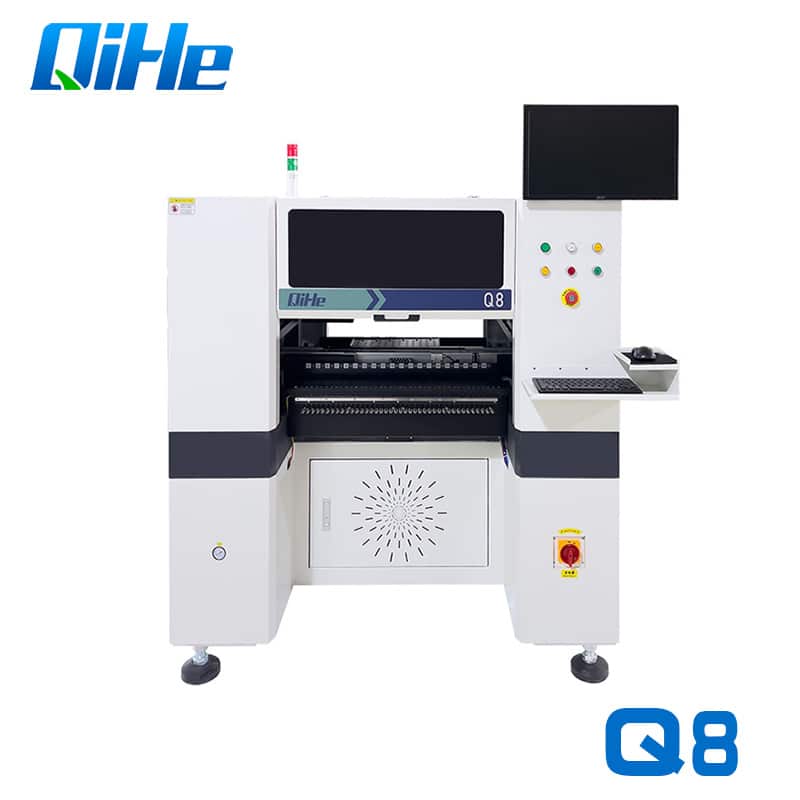

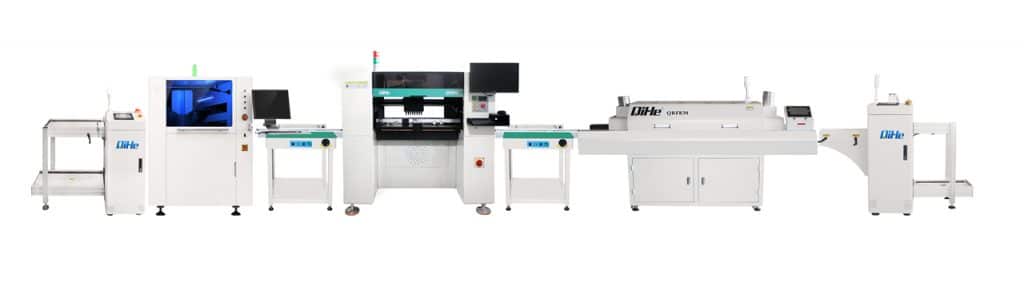

QM81 SMT pick and place machine 8heads 80slots Fully Automatic Chip mounter SMT Assembly

QM81 8 heads,80 feeder slots,Panasonic servo,ball screw,with rail,Fully Automatic Chip Mounter,

Description

The QM81 SMT pick and place machine (Chip mounter)has been upgraded from the QM61 series and incorporated customer feedback.
Not only increased more mounting heads but also more feeder slots .

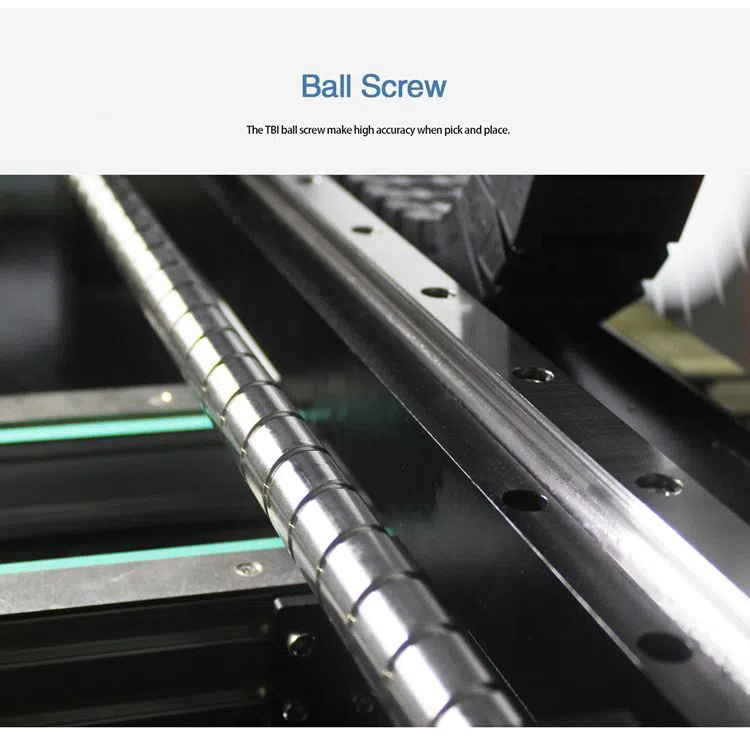

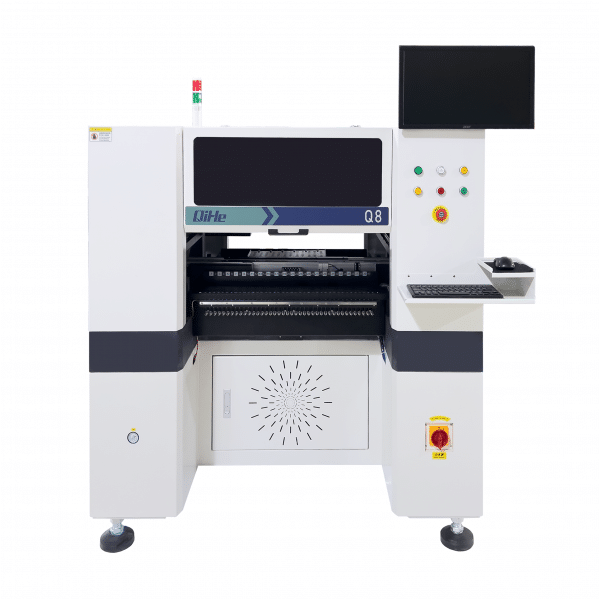

QM81 pnp machine even improved the hardware like flying shot recognition camera,the DSP digital driver,the ball grinding screw,the master computer .
Upgraded the software functional such as the component library ,the visual surveillance,the safety alerts,the fault previously warning .
QM81 pick&place machine can easily handling special-shaped components, BGA, 0201 inch package.

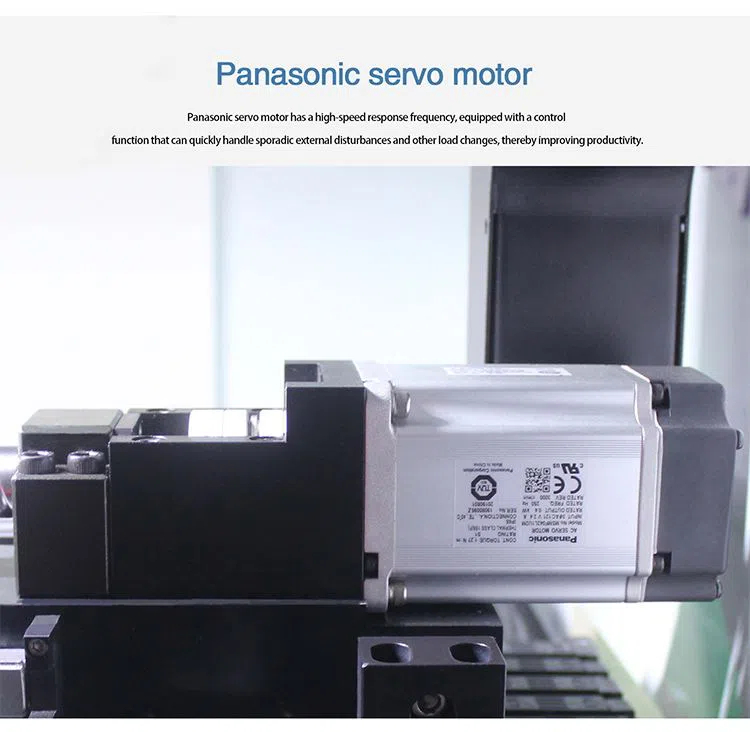

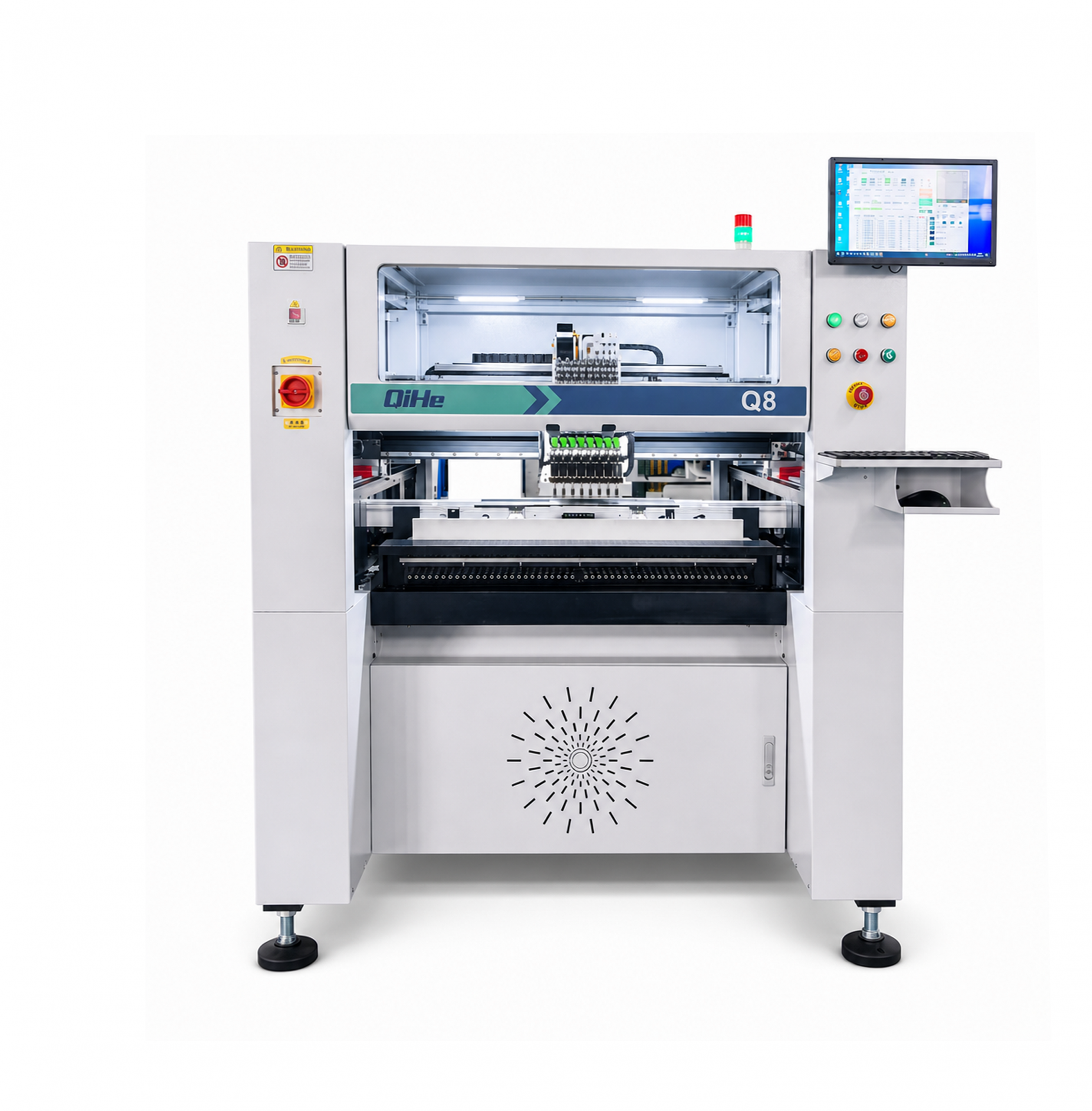

X Y axis adopts bigger Panasonic servo motor, speed of up to 16000 components per hour (CPH),
without sacrificing the CPH rate with high troque to achieve never lost step accuracy < 0.001mm.

ModelQM81
Max applicable PCB size450*350mm
Max xy moving range720*760mm
Max z moving range20 or 32mm
Placement head quantity8
Max mounting capabilityVision on: 13000pcs/h
Vision off: 16000pcs/h
Feeder slots capability80 (YAMAHA Feeder is available)
Applicable component  Smallest size:0201 inch
Largest size:22*22mm
Max Height15mm
Visual camera Flying  HD CCD camera
Power supply220V
Net Weight1015kg
Machine Dimension1310*1140*1390mm
Packing size3.52 CBM
