Hey guys，last post we talked about the Qihe tech SMT line setup engineers helped customer build a brand new TVM925S smt pick and place machine with customized cabinet for pcb assembly.Now let’s take a look at the video of the customer operating the TVM925S placement machine .
The working video of the TVM925S placement machine

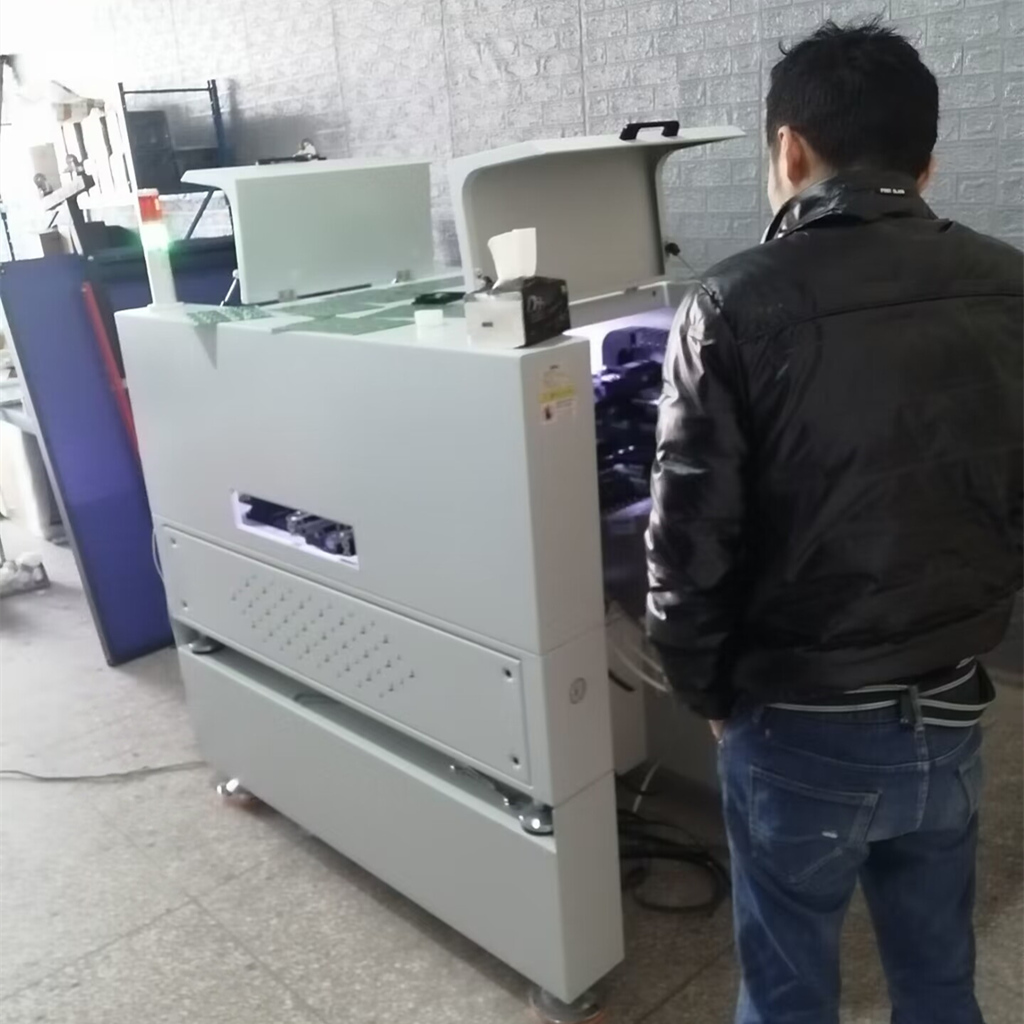

Client with the TVM925S placement machine
With the efforts of engineers, the installation and commissioning of the machine have reached the best condition.And under engineers guidance, the customer quickly mastered the skills of using the placement machine.
Thank you all for their hard work.
The PCB board made by the TVM925S placement machine
Photos shared by customers

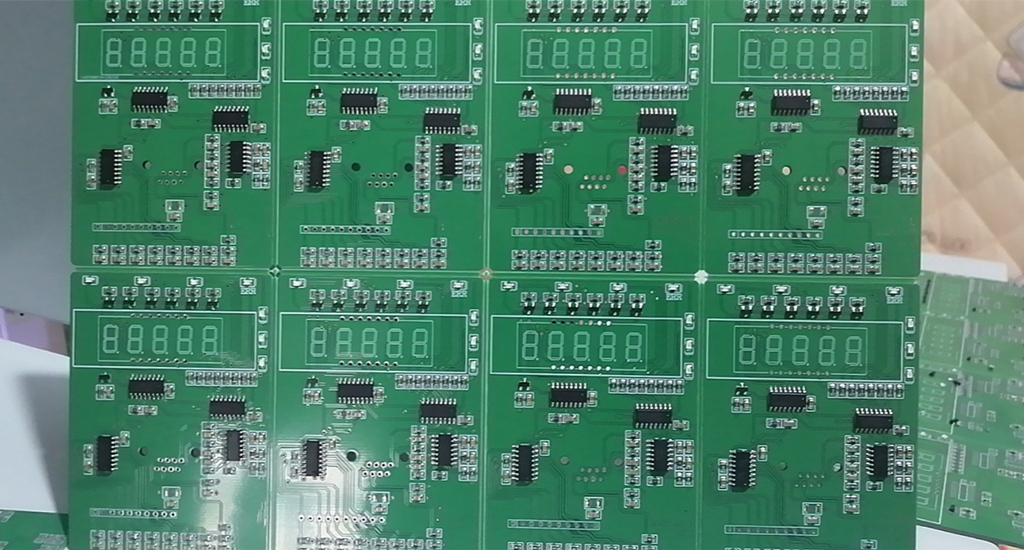

This is the sample PCB board of the TVM925S placement machine after finishing its work.
The next step would be the process of reflow welding and inspecting the finished product.
When the customer chatted with the engineer,He commented that
“I compared many Chinese-made machines, there are too many brands on the market, and I finally chose Qihe, because of trust, the TVM802 machine worked so many years, only need simple maintenance .it has never let me down. Because of the capacity expansion, we are now upgrading the fully automatic line .This TVM925S is also a very good machine. Compared with Japanese imported placement machines, this machine has a very simple operating system and the cost is not high. It is completely satisfactory for its products. I hope it can be used for a longer time.”
Thank you again for reading this topic . If you also like this TVM925S smt pnp machine.please feel free to contact sales manager for inquiry.You may also have other supporting equipment to choose from, such as printing machines and reflow soldering, we all provide them.
QHSMT is an enterprise specializing in the production of SMT equipment, like pick and place machine ，reflow oven，stencil printer ，smt pick and place machine,pnp,pick&place,pcb assembly,smd chip shooter,pnp machine,chip mounter,smt line,welcome to send inquiry
you can choose a reflow oven to meets your need like qfr630,qrf835,qrf1235
stencil printer model qh3040,qp3250,qfa5060
Also we have different kinds of smt pick and place machine like tvm802a,tvm802b,tvm802ax,tvm802bx,tvm802b plus,tvm925s,tvm926s,ql41,qm61,qm62,qm81,qm10
WHAT IS SMT PROCESS？
There are mainly three steps in SMT assembly line process flow： solder paste printing, components placement and reflow soldering.
- Solder Paste Printing
Its function in SMT line process is to print the solder-free paste on the pads of the PCB to prepare for the soldering of the components. The equipment used is a screen printing machine, located at the forefront of the SMT production line. - Components Placement
Its function is to accurately install the surface mount components on the fixed position of the PCB. The equipment used is a placement machine, located behind the screen printing machine in the SMT production line. - Reflow Soldering
Its function in SMT manufacturing line is to melt the solder paste so that the surface mount components and the PCB board are firmly bonded together. The equipment used is a reflow oven, located behind the placement machine in the fully automatic SMT production line.
WHAT IS SMT pick and place machine？
SMT (Surface Mounted Technology) is a comprehensive system engineering technology, which covers substrates, design, equipment, components, assembly processes, production accessories and management. When it comes to SMT pick and place machines, the automatic SMT production line requires automatic loading and unloading machine, automatic solder paste printing machine, placement machine, reflow soldering machine, AOI inspection equipment, connecting table, etc. For these SMT assembly line equipment, Qihe SMT can offer you machines in prototype SMT line, small SMT production line, mass production SMT line at low SMT line cost. Contact us now if you are interested.
WHAT IS SMT ASSEMBLY LINE？
With the development of technology, future electronic products will be lighter, smaller and thinner. Traditional assembly technology can no longer meet the requirements of high-precision and high-density assembly. A new type of PCB assembly technology-SMT (Surface Mount Technology) has emerged. SMT Assembly is the use of automated machines to assemble electronic components on the surface of the circuit board. Its density, high speed, standardization and other characteristics occupies an absolute advantage in the field of circuit assembly technology. In addition, SMT assembly has a wide range of uses.
