This week, Qihe SMT setup a QM62 smt pick and place machine production line .This customer is a high-tech battery backup solution manufacturing, providing control solutions for power supply battery backup, ups power supply pc, ups power supply for home,Computer Uninterruptible Power Supply Units and smart devices.Configuration includes:solder paste mixer 3502,semi automatic stencil printer QP3250→ pcb loader QUL350→ smt conveyor →PNP machine QM62→smt conveyor →reflow oven QRF835→ pcb unloader QDL350.
What Is a UPS ?
A UPS or uninterruptible power supply is a device used to maintain power during power disturbances such as power dips and power outages. A UPS essentially acts like a power bank for your computer but with an automatic transfer switch (ATS) that provides instant power should a power failure occur.
A UPS is often used in business facilities, hospitals, schools, etc., and is becoming increasingly common in households as many people see the benefits of a UPS.
What is compact UPS system ?
Compact UPS provides a range of benefits that make them an attractive choice. One of the key benefits is that they are small in size and can be used in a variety of locations. These models are usually positioned on the ground, and are commonly used in home office or desktop computer applications.
What are the different UPS systems?
There are three types of uninterruptible power supplies: static, dynamic (rotary), and hybrid. Static uses power electronic converters, dynamic uses electromagnetic engines (generators and motor), and hybrid uses – you guessed it – a combination of both static and dynamic.
smart devices

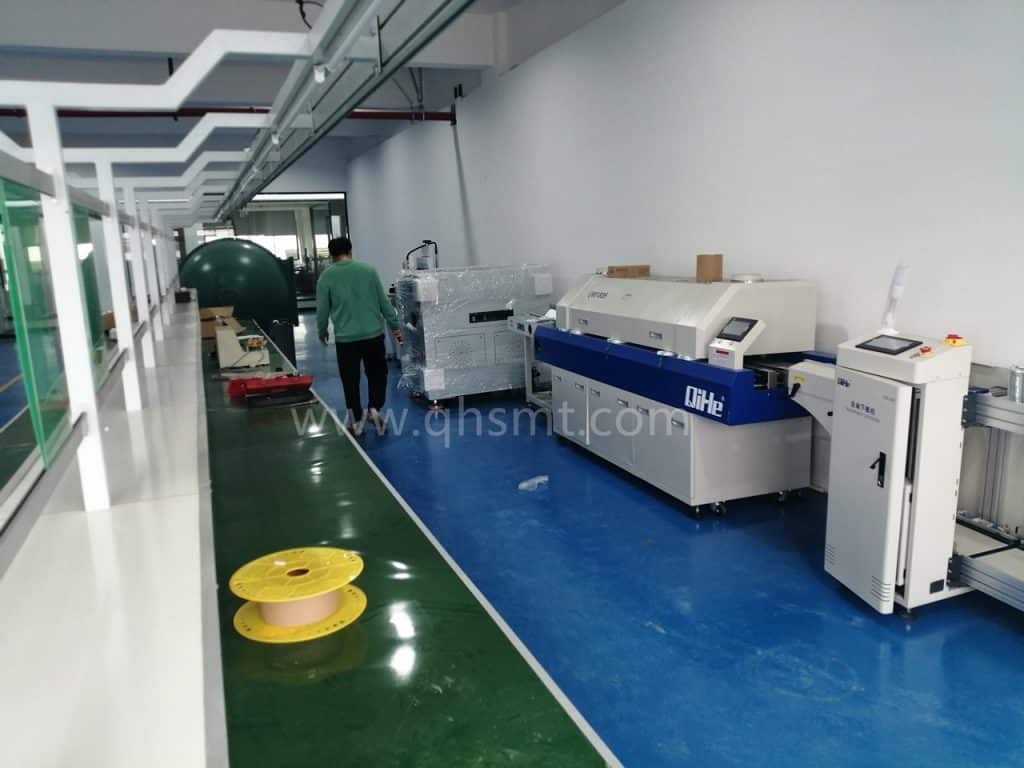

Engineer is unpacking the QM62 and installing the full line equipments
smt machine : QM62 pnp,reflow,printer,conveyors, SMT setup
fully automatic SMT pick and place machine selection
About QIHE SMT pick and place machine
QHSMT is an enterprise specializing in the production of SMT equipment, like pick and place machine ,reflow oven,stencil printer ,smt pick and place machine,pnp,pick&place,pcb assembly,smd chip shooter,pnp machine,chip mounter,smt line,welcome to send inquiry
you can choose a reflow oven to meets your need like qfr630,qrf835,qrf1235
stencil printer model qh3040,qp3250,qfa5060
Also we have different kinds of smt pick and place machine like tvm802a,tvm802b,tvm802ax,tvm802bx,tvm802b plus,tvm925s,tvm926s,ql41,qm61,qm62,qm81,qm10
Know more about us https://www.qhsmt.com/about-qihe-smt-equipment/
Follow us on social media https://www.facebook.com/Qihesmt/
WHAT IS SMT PROCESS?
There are mainly three steps in SMT assembly line process flow: solder paste printing, components placement and reflow soldering.
- Solder Paste Printing
Its function in SMT line process is to print the solder-free paste on the pads of the PCB to prepare for the soldering of the components. The equipment used is a screen printing machine, located at the forefront of the SMT production line. - Components Placement
Its function is to accurately install the surface mount components on the fixed position of the PCB. The equipment used is a placement machine, located behind the screen printing machine in the SMT production line. - Reflow Soldering
Its function in SMT manufacturing line is to melt the solder paste so that the surface mount components and the PCB board are firmly bonded together. The equipment used is a reflow oven, located behind the placement machine in the fully automatic SMT production line.
WHAT IS SMT pick and place machine?
SMT (Surface Mounted Technology) is a comprehensive system engineering technology, which covers substrates, design, equipment, components, assembly processes, production accessories and management. When it comes to SMT pick and place machines, the automatic SMT production line requires automatic loading and unloading machine, automatic solder paste printing machine, placement machine, reflow soldering machine, AOI inspection equipment, connecting table, etc. For these SMT assembly line equipment, Qihe SMT can offer you machines in prototype SMT line, small SMT production line, mass production SMT line at low SMT line cost. Contact us now if you are interested.
WHAT IS SMT ASSEMBLY LINE?
With the development of technology, future electronic products will be lighter, smaller and thinner. Traditional assembly technology can no longer meet the requirements of high-precision and high-density assembly. A new type of PCB assembly technology-SMT (Surface Mount Technology) has emerged. SMT Assembly is the use of automated machines to assemble electronic components on the surface of the circuit board. Its density, high speed, standardization and other characteristics occupies an absolute advantage in the field of circuit assembly technology. In addition, SMT assembly has a wide range of uses.
