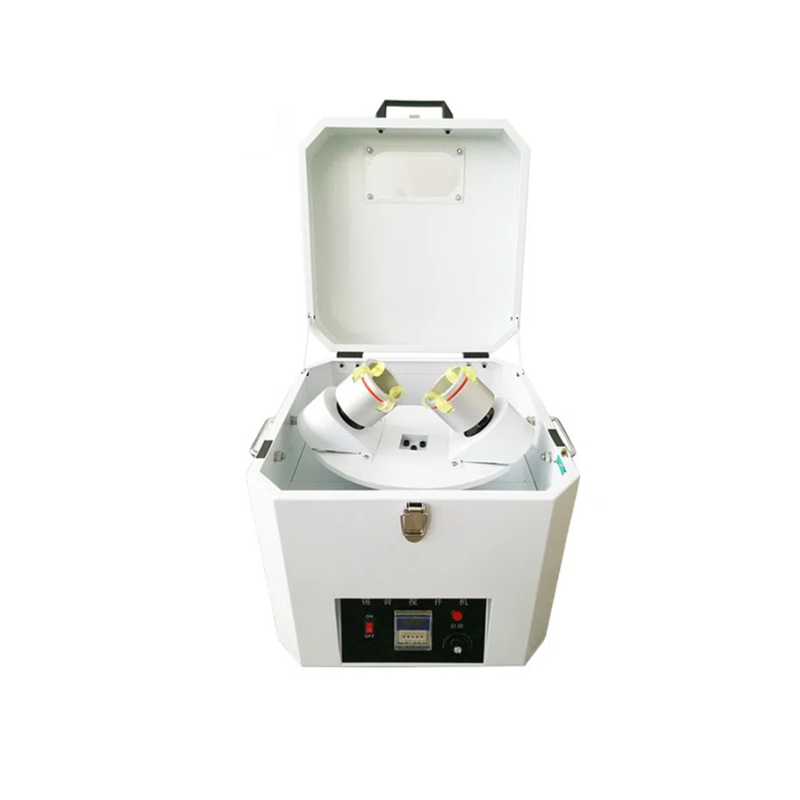

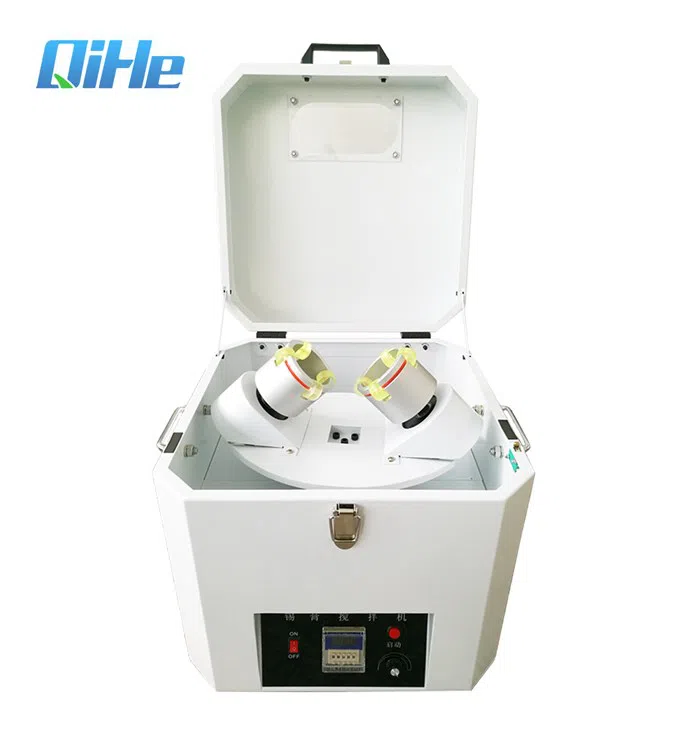

QH3502 Automatic Solder Paste Mixer

Automatic Solder Cream Mixer makes solder cream move downward constantly through centrifugal force generated by revolution and cooperation with energy from rotation at 45 degree angle of axis of revolution.

Description

QH3502 Automatic Solder Cream Mixer makes solder cream move downward constantly through centrifugal force generated by revolution and cooperation with energy from rotation at 45 degree angle of axis of revolution. Solder cream located in the tank bottom makes upward movement from the surrounding, which forms a tornado-funnel shaped stirring action, and it can stir, soften and defoam the solder cream with appropriate viscosity. Solder cream has good wettability, even diffusivity, excellent printing effect after mixing, which achieves the best welding performance when reflowing soldering. Its characteristics are as follows:There is special control circuit, adjustable mixing time and easy operation.
Solder cream is placed by 45 degrees and rotates along axis direction and solder cream won’t stick to the pot cover.Smooth operation, low noise, temperature return naturally and bubble remove in the process of mixing.There is no need to open cover for solder cream pot and it is convenient and safe for pick-and-place. There is safety device to ensure the personal safety.

A rotational speed1000 RPM; Secondary rotation: 500 RPM
Ability to work500 g * 2 cans
Acceptance of solder paste potTank diameter Φ 60-67 standard configuration
(suitable for general 500g solder cream bottle)
Every time adjust time setting0.1 ~ 9.9 minutes, 0.1 minutes;10 ~ 30 minutes,
adjust 1.0 minutes at a time.
Display modeLED digital display
Rated power60W
Working voltage220 v AC( 50 hz)
The machine size400*400*520 mm (L*W*H)
Net weight30kg
Gross weight35kg
