Description
| Mode | QH-800 |
| Cleaning chamber size | L690 x W620 x H715(mm) |
| Cleaning basket size | L610 x W560 x H100(mm),Double layer design |
| Concentrate tank capacity | 30L |
| Diluent tank capacity | 70L |
| Spray tank capacity | 17L-23L |
| Inner cavity temperature compensation power | 6KW |
| Solvent tank heater power | 9KW |
| Drying heater power | 6KW |
| Cleaning method | 360 degree rotary spray cleaning |
| Drying time | 5-20M(reference) |
| Rinsing time | 1-2 minutes / time |
| Rinse times | 1-10(can set as needed) |
| Drying time | 20-30M(reference) |
| Resistivity meter detection range | 0～18MΩ·cm |
| Dilution liquid heating temperature | （room temperature）～75℃ |
| Heating temperature of spray tank | （room temperature）～75℃ |
| Drying temperature | （room temperature）～99℃ |
| Chemical liquid recovery and filtration | 0.22μ m |
| DI water discharge and filtration | 0.22μ m |
| Intake | 1 inch fast junction interface |
| Drainage port | 1 inch fast junction interface |
| Diluent drain port | 1 inch fast junction interface |
| Horizontal spray pump | 5.5kw |
| Exhaust port size | Φ 100mm（W)×30mm(H) |
| Power supply/ Gas source | AC380V 50HZ 65A / 0.45Mpa～0.7Mpa |
| Machine net weight | 400Kg |
| Appearance size | L1200 × W1100 × H1830(mm) |
Feature of the equipment ：
1.Comprehensive cleaning system:
Thorough and effective cleaning of organic and inorganic substances on the surface of the product.
2.Fully automatic cleaning mode:
Finish all the process of cleaning, rinsing and drying within a cleaning chamber, small size and compact structure.

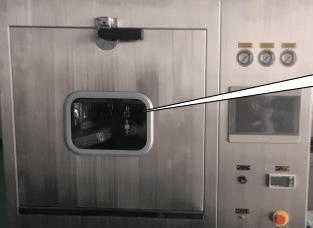

3.Visualization of whole process:
Spray room has visualization window, and equipped with LED lighting, cleaning process is clear at a glance.
4.Super Cleaning Capacity:
610mm(L)*560mm(W)*100mm(H). Double layer design, meet larger product sizes and higher cleaning capacities

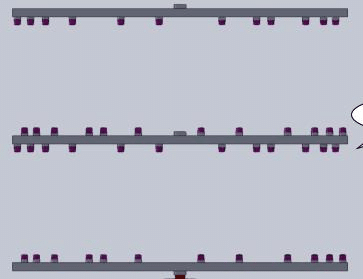

5.The most scientific nozzle design:
Use left and right incremental distribution to increase cleaning efficiency, upper and lower dislocation distribution to resolves Cleaning Blind Zone thoroughly.
6.Adjustable nozzle pressure design:
Reduces the hidden danger of collision and splash caused by high-pressure spray conditions in small-size products during cleaning.
7.Standard dilution tank heating system:
Greatly improved cleaning efficiency and reduced cleaning time.
8.Large touch screen operation interface:
Stable and reliable color touch screen, can set difference cleaning process according to difference product. simpler operation.
9.High standard of cleanliness:
The degree of ionic contamination is fully in line with IPC-610D’s Class III standard(less than 1.56μ g/ c ㎡ ) and the I standard of the US military standard 28809.
10.Convenient Cleaning Agent Proportion:
Can manual addition, can automatically mix DI water and chemical liquid according to the set ratio （5%-25%）also.
11.Concentrate and diluent added:
Separate liquid addition system makes liquid addition easier, faster, saves time and labor.
