Hi Friends, today let’s have a look at the latest smt pick and place machine photos and videos of the exhibition https://fb.watch/kyVd9iYgHq/

Qihe SMT engineer is introducing the placement machine to the customers

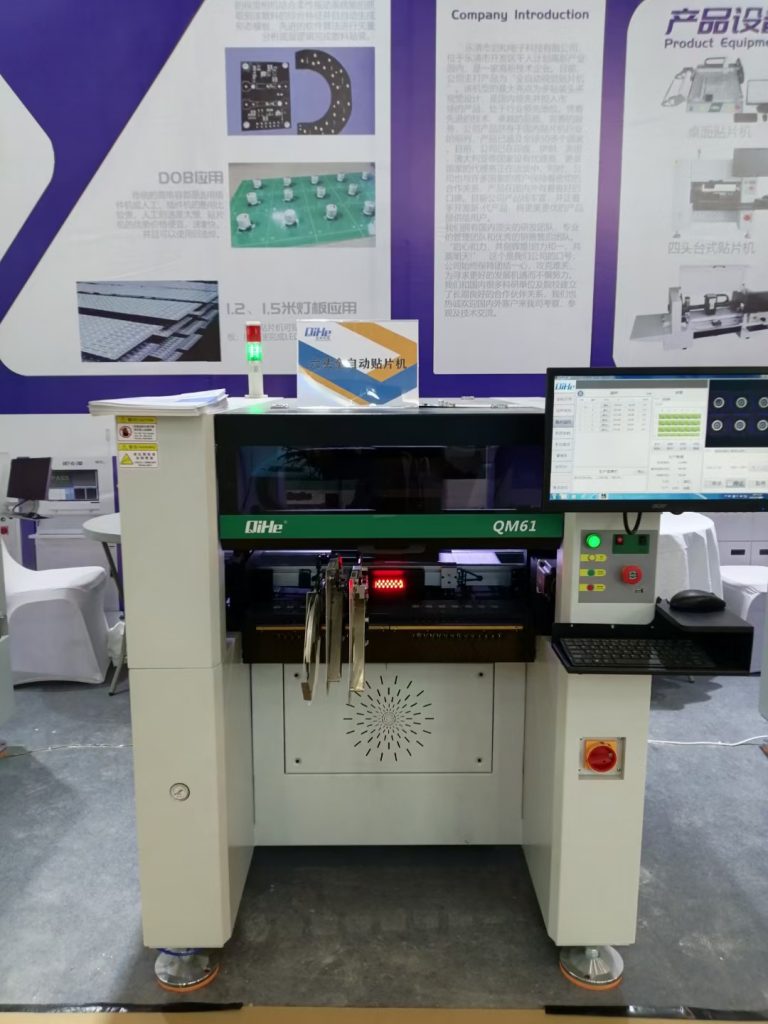

QM61 SMT pick and place machine 6heads 63slots Fully Automatic Pick&place machine SMT Assembly chip mounter

QM61 SMT pick and place machine is designed for mass production or R&D proofing purpose. It contains 6 heads,63 slots .
The hardware including flying shot recognition camera,the Hiwin linear rail,the TBI grinding screw,the master computer ,triple stage transmission rail system.
Upgraded the software functional such as the component library ,the visual surveillance,the safety alerts,the fault previously warning .
QM61 pick&place machine can easily handling special-shaped components, BGA, 0201 inch package.
QM61 chip mounter X Y axis adopts bigger Panasonic servo motor, speed up to 15000 components per hour (CPH),
https://www.qhsmt.com/product/qm61-6heads-63slots-fully-automatic-pick-and-place-machine-smt-assembly-chip-mounter/

TVM926S SMT pick and place machine 4heads 63slots With Rail Benchtop Pick&Place Machine

The TVM926S smt pick and place machine is designing from the TVM926 model and combined the technology from QM61 series.
It increased the hardware like the flight camera,the servo driver and motor,the TBI screw rod,and the automatic transfer rail .
Upgraded the software functional such as the component library,the visual surveillance,the safety alerts,the fault previously warning .
Can handling special-shaped components, BGA, 0201 inch package.
X Y axis adopts servo motor, speed of up to 9500 components per hour (CPH).
https://www.qhsmt.com/product/benchtop-4heads-smt-pick-and-place-machine-with-rail-63-slots-servo-motor-screw-rod/

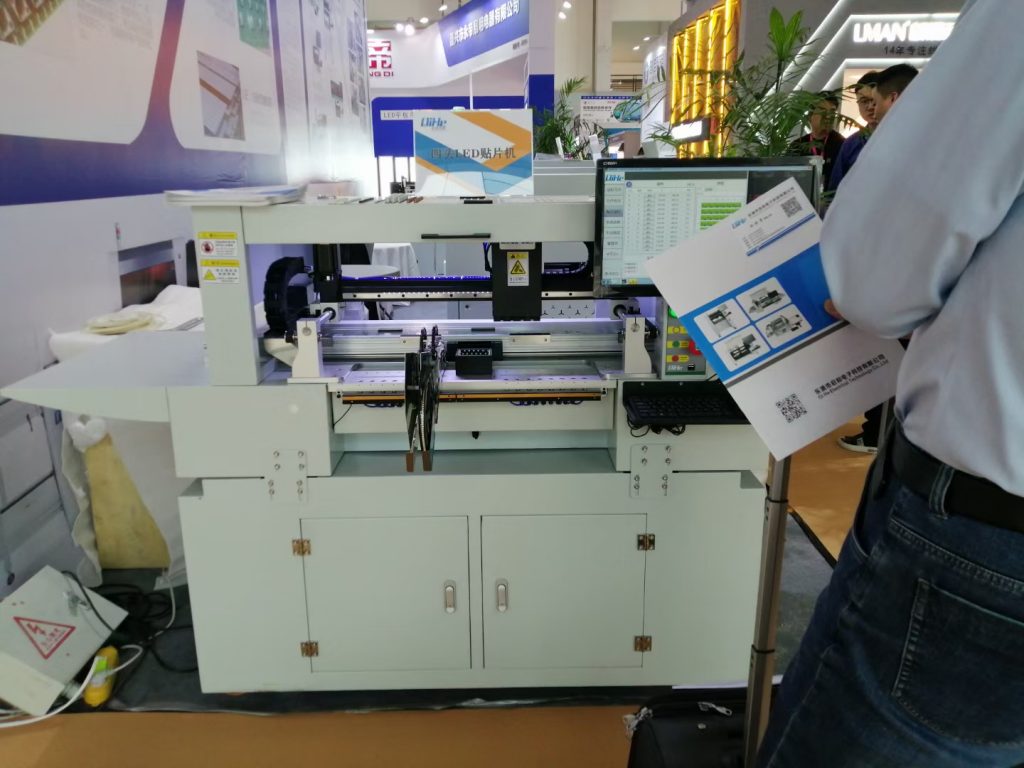

QL41B SMT pick and place machine 4heads 16slots LED for 1.2meters led strip pick&place machine

QL41 led pcb assembly machine SMT pick and place machine(pick&place machine) with four mounting heads can pick 4 materials and through vision at the same time.
Flying vision components inspection camera is more stable, making mounting speed fast.
One PCB detection camera used to detect circuit board placement.
The EX-axis is designed to lay up the circuit board. In the process of mounting,
the ex axis moves, driving the circuit board to move, so that the shortest mount distance.
Mounting length up to 1200mm. Suitable for various types of LED strips and boards.
Closed-loop motors design, automatic detection and correction of lost step.
https://www.qhsmt.com/product/ql41-4heads-8slots-led-pick-place-machine-for-1-2meters-led-stripled-led-pcb-assembly-machine/

tvm802 dekstop pick and place

TVM802 desktop SMT production line Standard edition

We can provide low volume SMT line for small batch production for the start ups & R &D . 2 head Pick and place machines available. There are two models(29 slots or 46 slots) for you to choose from . Desktop SMT line also including automatic solder paste mixer,manual printer and tabletop reflow oven .Can handling smallest package size:0402 inch and up to largest size:TQFP100.
https://www.qhsmt.com/product-category/smt-pick-and-place-machine/desktop-pick-and-place-machine/

Read more: Lighting exhibition albums and videos review

About QIHE SMT pick and place machine

QHSMT is an enterprise specializing in the production of SMT equipment, like pick and place machine ,reflow oven,stencil printer ,smt pick and place machine,pnp,pick&place,pcb assembly,smd chip shooter,pnp machine,chip mounter,smt line,welcome to send inquiry
you can choose a reflow oven to meets your need like qfr630,qrf835,qrf1235
stencil printer model qh3040,qp3250,qfa5060
Also we have different kinds of smt pick and place machine like tvm802a,tvm802b,tvm802ax,tvm802bx,tvm802b plus,tvm925s,tvm926s,ql41,qm61,qm62,qm81,qm10

Know more about us https://www.qhsmt.com/about-qihe-smt-equipment/
Follow us on social media https://www.facebook.com/Qihesmt/

WHAT IS SMT PROCESS?

There are mainly three steps in SMT assembly line process flow: solder paste printing, components placement and reflow soldering.

  1. Solder Paste Printing
    Its function in SMT line process is to print the solder-free paste on the pads of the PCB to prepare for the soldering of the components. The equipment used is a screen printing machine, located at the forefront of the SMT production line.
  2. Components Placement
    Its function is to accurately install the surface mount components on the fixed position of the PCB. The equipment used is a placement machine, located behind the screen printing machine in the SMT production line.
  3. Reflow Soldering
    Its function in SMT manufacturing line is to melt the solder paste so that the surface mount components and the PCB board are firmly bonded together. The equipment used is a reflow oven, located behind the placement machine in the fully automatic SMT production line.

SMT (Surface Mounted Technology) is a comprehensive system engineering technology, which covers substrates, design, equipment, components, assembly processes, production accessories and management. When it comes to SMT pick and place machines, the automatic SMT production line requires automatic loading and unloading machine, automatic solder paste printing machine, placement machine, reflow soldering machine, AOI inspection equipment, conveyor,connecting table, etc. For these SMT assembly line equipment, Qihe SMT can offer you machines in prototype SMT line, small SMT production line, mass production SMT line at low SMT line cost. Contact us now if you are interested.

WHAT IS SMT ASSEMBLY LINE?

With the development of technology, future electronic products will be lighter, smaller and thinner. Traditional assembly technology can no longer meet the requirements of high-precision and high-density assembly. A new type of PCB assembly technology-SMT (Surface Mount Technology) has emerged. SMT Assembly is the use of automated machines to assemble electronic components on the surface of the circuit board. Its density, high speed, standardization and other characteristics occupies an absolute advantage in the field of circuit assembly technology. In addition, SMT assembly has a wide range of uses.
https://www.qhsmt.com/fully-automatic-smt-pick-and-place-machine-line/

WHAT IS SMT pick and place machine?

SMT (Surface Mounted Technology) is a comprehensive system engineering technology, which covers substrates, design, equipment, components, assembly processes, production accessories and management. When it comes to SMT pick and place machines, the automatic SMT production line requires automatic loading and unloading machine, automatic solder paste printing machine, placement machine, reflow soldering machine, AOI inspection equipment, conveyor,connecting table, etc. For these SMT assembly line equipment, Qihe SMT can offer you machines in prototype SMT line, small SMT production line, mass production SMT line at low SMT line cost. Contact us now if you are interested.
https://www.qhsmt.com/product-category/smt-pick-and-place-machine/
