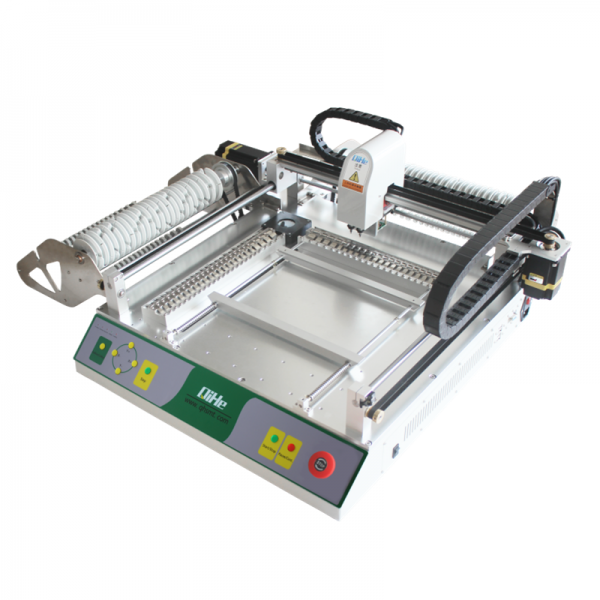

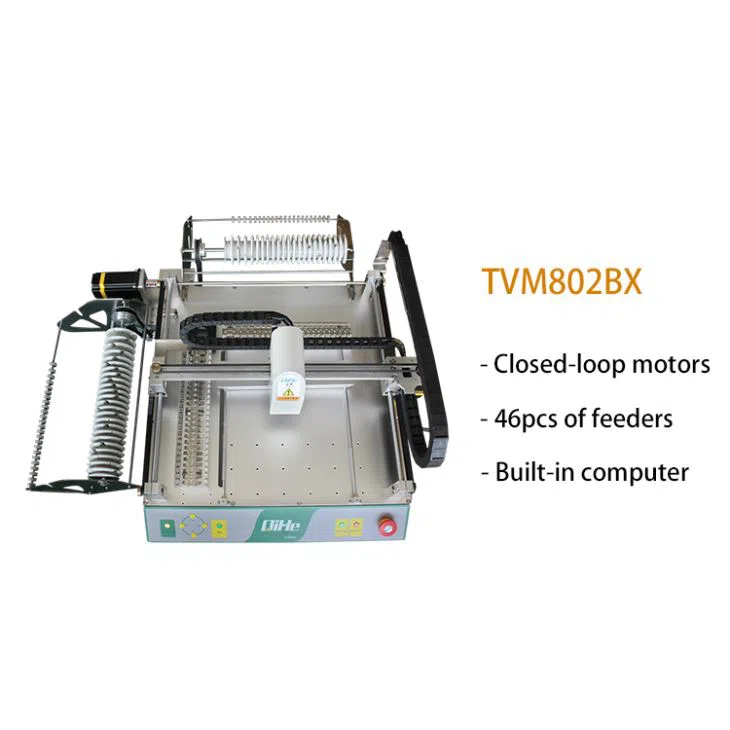

TVM802BX SMT pick and place machine 2heads 46slots desktop pnp mounter deluxe edition

Description

TVM802BX SMT pick and place machine (desktop pnp mounter). The advantages of this model are the built-in industrial control computer, optimized driver and software algorithm,2 placement heads,46 slots.
Can handling smallest package size:0402 inch and up to largest size:TQFP100.The external dimensions of TVM802BX are 940mm*940mm*320mm. Deluxe edition is mainly composed of built-in industrial control computer,working head, dual vision system, operation platform, patented feeding rack,, closed-loop motor drive system, internal vacumm pump,etc. Voltage AC220V or AC110V, power 150W.

ModelTVM802BX
Max applicable PCB size250*330mm
Max xy moving range395*430mm
Max z moving range12.5mm
Placement head quantity2
Max mounting capabilityVision on: 5500pcs/h
Vision off: 6500pcs/h
Feeder slots & Tape width46pcs, (8mm=38, 12mm=6,16mm=2)
Visual camera2 HD CCD cameras
Applicable component Smallest size:0402inch
Largest size:TQFP100
Power supply220V/110V
Net weight44kg
Gross weight68kg
Machine Dimension94*64*33cm
Packing size107*77*42cm
Volume0.35CBM
