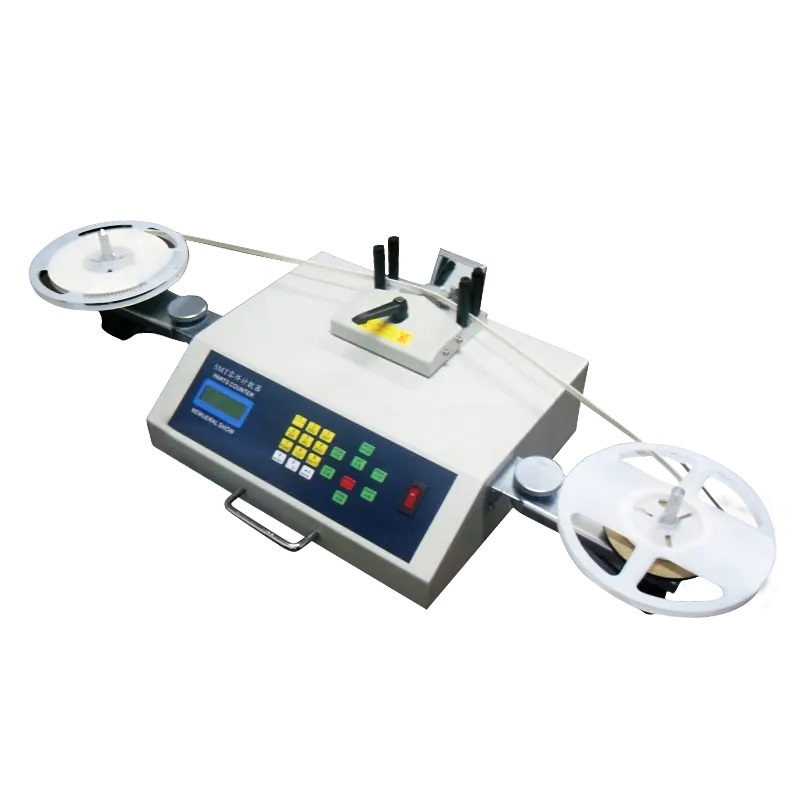

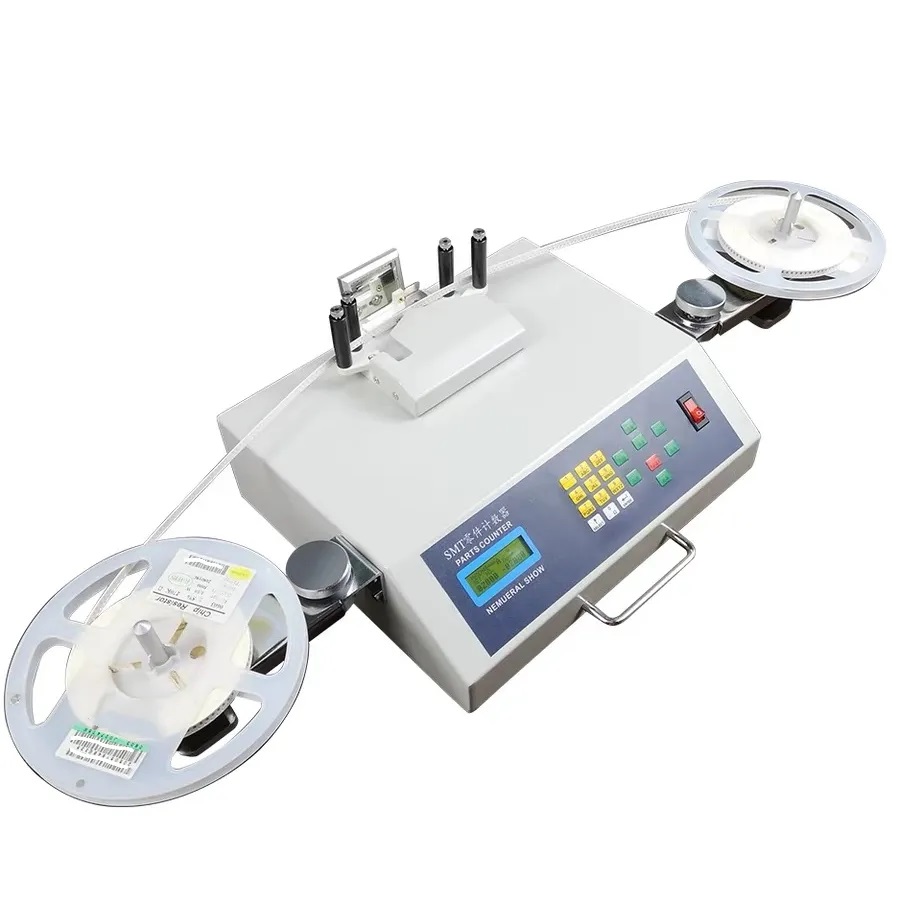

QH902N SMD component counting machine . Which also called Reel Counter,SMD Counting Machine. Automatic smd electronic components chip counting machine ,Leak Detection Intelligent Electronic Component Reel Counter,. Automat ic way to calculate the number of parts, convenient point mater ial, mater ial d istr ibut ion operat ion is simple, the unique des ign of the 「Anti-fal l of Blet」wi l l reduce the damage to the mater ial belt to the minimum, pos it ive and negat ive d irect ion both can be counted, can be preset quantity count, accurate calculat ion of the number, zero error.Scanning gun and bar code pr inter can be added to faci l itate the management of work flow.
Principle of the Product Thechipcounteradoptsthephotoelectricsensingprinciple,makesuseof the correspondingrelationshipbetweenthepartscarrierbeltguideholeandtheparts,andadoptsthe special process ing chip and large-scaleintegrated circuitprocessingtorealizezeroerror,accuratelymeasurethe SMD parts count, and real ize the convenient and fast count ing.Itisan efficient auxi l iary equipmentforSMTmaterialmanagement.
With Leak Detection Type

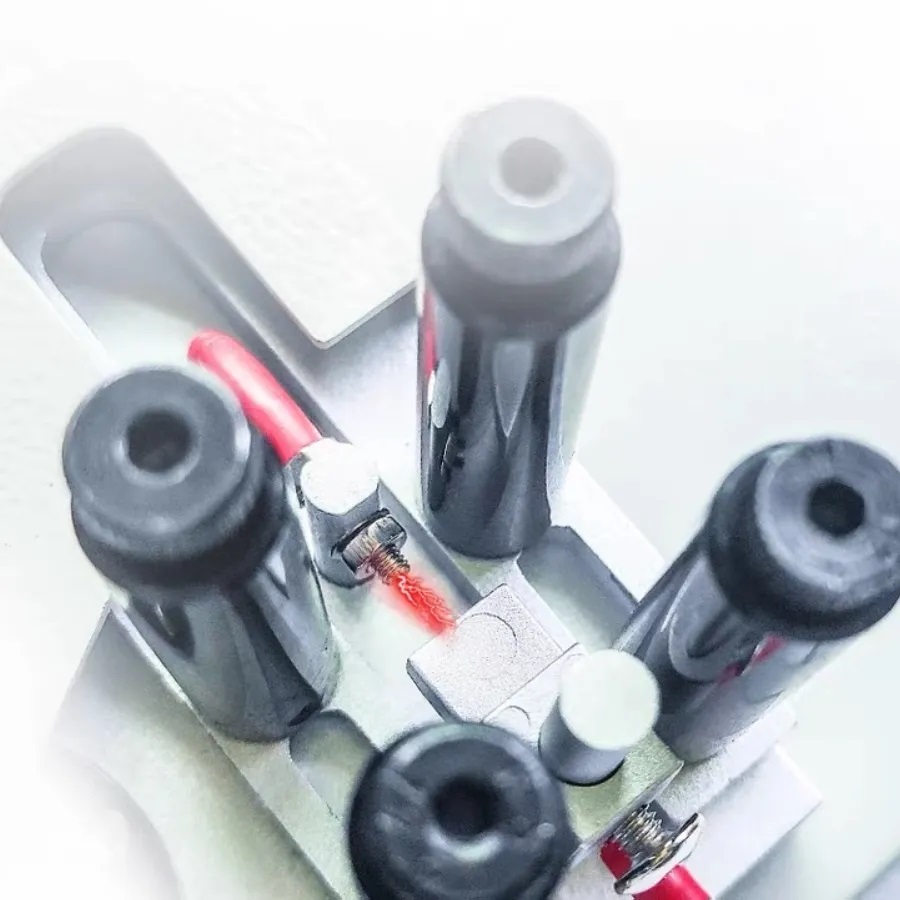

Explanat ion of leakage detection : Equipped with high-speed optical fiber, according to the principle of whether the empty material and the solid material light is emitted to realize the automatic stop of the detection of leakage parts and the tail material. When there is material, the mater ial belt will cut off the opt ical fiber, and when there is no material, the optical fiber will stop.
| Machine model | QH902N |
| Material Tape interval | 2,4,8,10,12,16,24,32,44,56mm cycle setting |
| Reel Width | 4,6,8,12,16,24,32,44,56mm |
| Counting Speed | 24s/disk, 5000pcs |
| Counting Volume | -99999~99999pcs |
| Major function | Forward and reverse counting,Leak detection, Self-stopping of the tail component,Multi-speed regulation |
| Rated power | 50W |
| Working voltage | 220 v AC( 50 hz) |
| The machine size | 770*340*190mm (L*W*H) |
| The package size | 580*400*260mm (L*W*H) |
| Net weight | 10kg |
| Gross weight | 13kg |
