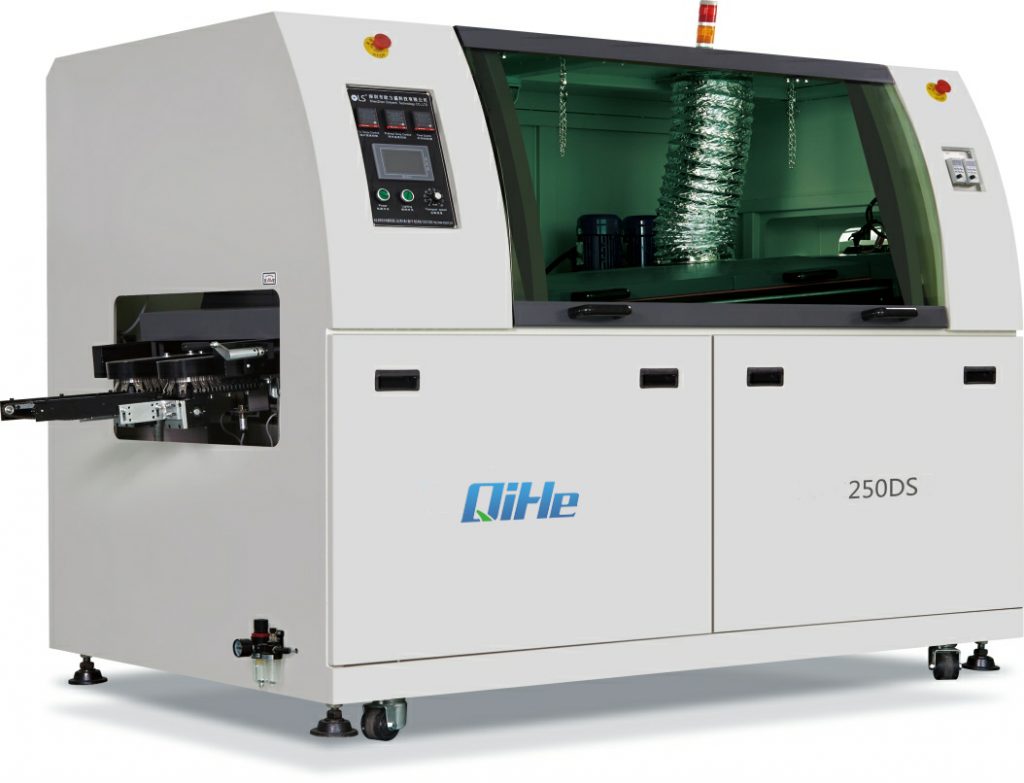

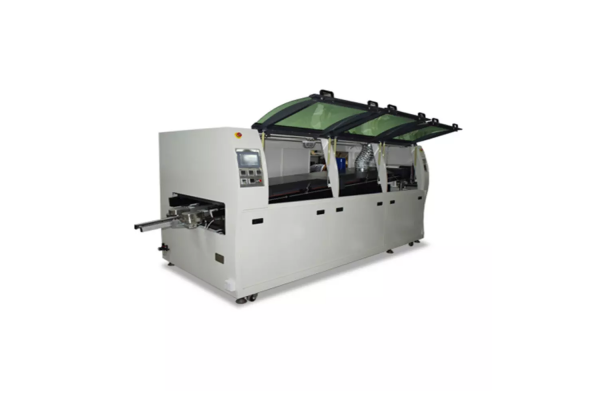

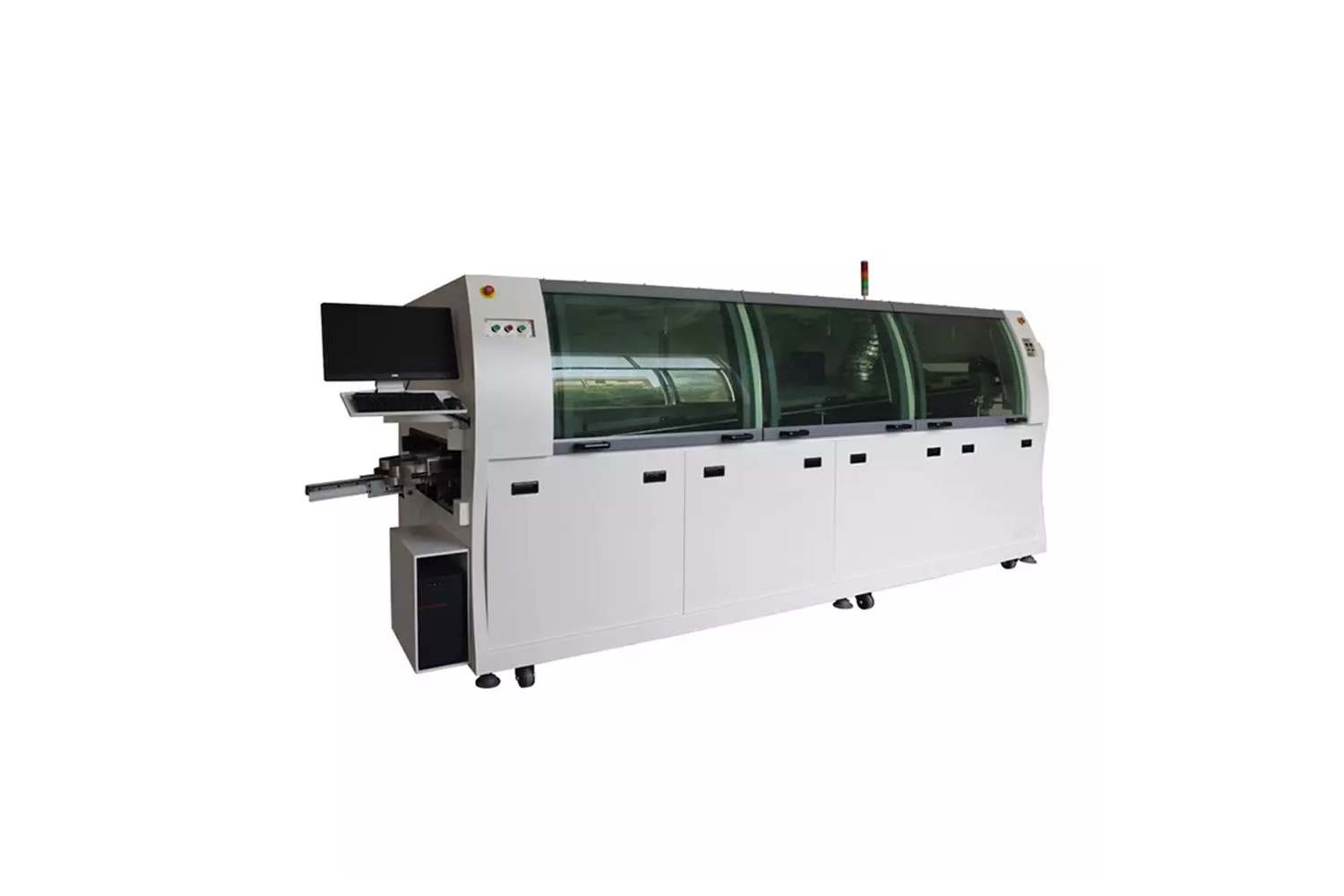

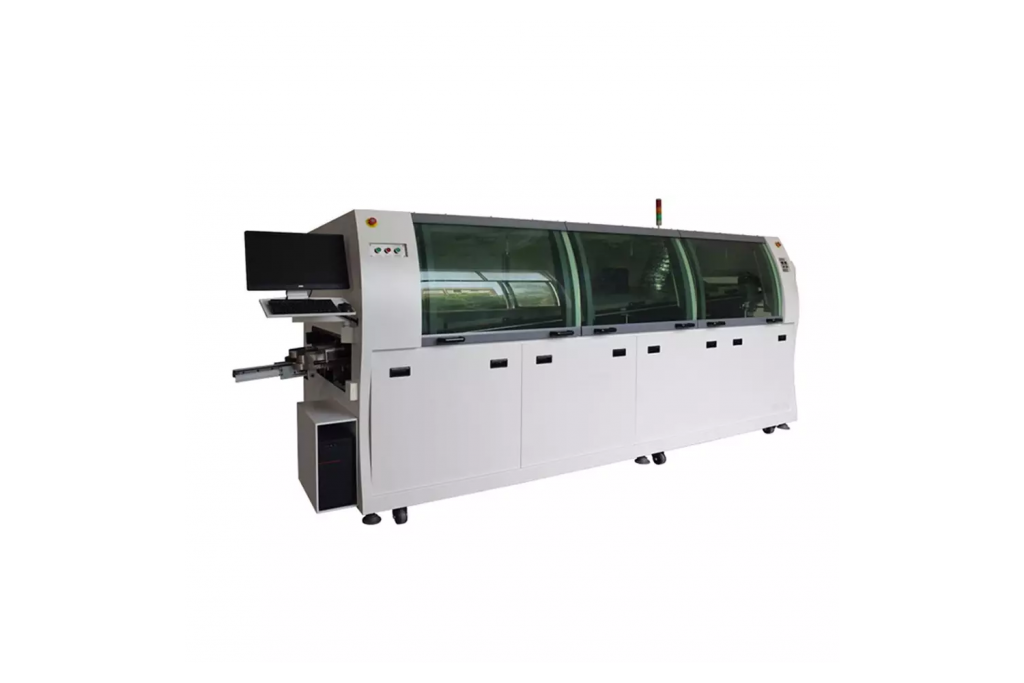

QiHe series wave soldering machine

Description

Model	QHS200	QHS250	QHS250H	QHS300
Widthofpassingplate	Max200mm	Max250mm	Max250mm	Max300mm
Meltingcapacityoftinfurnace	135KG	200KG	200KG	280KG
Preheating length	400mm（passage）	450mm（passage）	800mm（Twoparagraphs）	1500mm（three-section）
crestheight	12mm	12mm	12mm	12mm
Leglengthofover-plateelement.	10mm	10mm	10mm	10mm
TransportheightofPCBboard.	750±20mm	750±20mm	750±20mm	750±20mm
grosspower	8KW	8KW	10KW	15KW
servicerating	2KW	2KW	3.5KW	5KW
Tinfurnacepower	6KW	6KW	6KW	9KW
Preheatingpower	2KW	2KW	4KW	6KW
Preheatingpower	0.18KW	0.18KW	0.18KW	0.25KW
Controlmode	Touch screencontrol system	Touch screencontrol system	Touch screencontrol system	Touch screencontrol system
Rack dimensions	130010501350mm	140012001500mm	180012001500mm	280012001600mm
outline dimension	210010501450mm	220012001600mm	260012001600mm	360012001700mm
PCB transport speed	0-1.2m/min	0-1.2m/min	0-1.5m/min	0-1.8m/min
Preheating zone Temperature	Room temperature-130℃	Room temperature-130℃	Room temperature-150℃	Room temperature-180℃
Heatingmode	Hotair	Hotair	Hotair	Hotair
Numberofcoolingzones	1	1	1	1
Coolingmode	Axial fan cooling	Axial fan cooling	Axial fan cooling	Axial fan cooling
Tinfurnacetemperature	Room temperature-300℃	Room temperature-300℃	Room temperature-300℃	Room temperature-300℃
Transportdirection	Left→right	Left→right	Left→right	Left→right
Temperaturecontrolmode	PID+SSR	PID+SSR	PID+SSR	PID+SSR
Controlmodeofwholemachine	Mitsubishi PLC+TouchScreen	Mitsubishi PLC+TouchScreen	Mitsubishi PLC+TouchScreen	Mitsubishi PLC+TouchScreen
Flux capacity	Max5.2L	Max5.2L	Max5.2L	Max5.2L
Spray mode	Stepper motor+ST-6.	Stepper motor+ST-6.	Stepper motor+ST-6.	Stepper motor+ST-6.
Power supply	3-phase5-wiresystem380V50HZ. (can be connected to 220V)	3-phase5-wiresystem380V50HZ. (can be connected to 220V)	3-phase5-wiresystem380V50HZ. (can be connected to 220V)	3-phase5-wiresystem 380V50HZ
Gassource	4-7KG/CM212.5L/Min	4-7KG/CM212.5L/Min	4-7KG/CM212.5L/Min	4-7KG/CM212.5L/Min
Weight	400KG	600KG	800KG	1000KG

Model	QHS350	QHS635	QHS635H
Widthofpassingplate	Max350mm	Max350mm	Max350mm
Meltingcapacityoftinfurnace	320KG	380KG	450KG
Preheating length	1800mm（three-section）	1800mm（three-section）	2000mmFoursections,independentcontrol,hotairloop）
crestheight	12mm	12mm	12mm
Leglengthofover-plateelement.	10mm	10mm	10mm
TransportheightofPCBboard.	750±20mm	750±20mm	750±20mm
grosspower	18KW	18KW	25KW
servicerating	6KW	6-8KW	5KW
Tinfurnacepower	10KW	10KW	12KW
Preheatingpower	7.5KW	9KW	10KW
Preheatingpower	0.37KW	0.37KW	0.37KW
Controlmode	Touch screencontrol system	Computer control	Computer control
Rack dimensions	320013001600mm	320013501600mm	360014001650mm
outline dimension	400013001700mm	400013501700mm	450014001750mm
PCB transport speed	0-2m/min	0-2m/min	0-2m/min
Preheating zone Temperature	Room temperature-180℃	Room temperature-180℃	Room temperature-180℃
Heatingmode	Hotair	Hotair	Hotair
Numberofcoolingzones	1	1	1
Coolingmode	Axial fan cooling	Axial fan cooling	Axial fan cooling
Tinfurnacetemperature	Room temperature-300℃	Room temperature-300℃	Room temperature-300℃
Transportdirection	Left→right	Left→right	Left→right
Temperaturecontrolmode	PID+SSR	PID+SSR	PID+SSR
Controlmodeofwholemachine	Mitsubishi PLC+TouchScreen	Computer control	Computer control
Flux capacity	Max5.2L	Max5.2L	Max5.2L
Spray mode	Stepper motor+ST-6.	Stepper motor+ST-6.	Stepper motor+ST-6.
Power supply	3-phase5-wiresystem 380V50HZ	3-phase5-wiresystem 380V50HZ	3-phase5-wire system 380V50HZ
Gassource	4-7KG/CM212.5L/Min	4-7KG/CM212.5L/Min	4-7KG/CM212.5L/Min
Weight	1200KG	1200KG	1500KG
