TVM802AX small Desktop SMT Production Line from Canada Today author from qihe smt pick and place machine sharing you with a customer case story .
#QHSMT Customer case sharing
#TVM802AX desktop SMT production line
# Device combination configuration

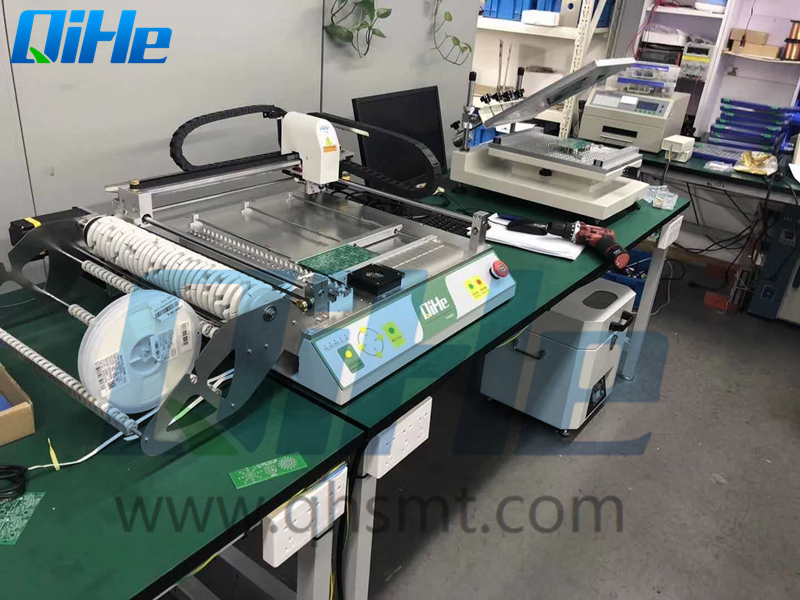

solder mixer QH3502→stencil printer QH3040→ PNP machine TVM802AX→ desktop reflow oven QR962C
TVM802B Plus SMT pick and place machine 2heads 58slots desktop pick&place deluxe edition
TVM802BX SMT pick and place machine 2heads 46slots desktop pnp mounter deluxe edition
TVM802AX SMT pick and place machine 2heads 29slots desktop deluxe edition SMT Pick&Place Machine
QFA5060 automatic solder paste printer stencil printer machine screen printer machine
QR962C Desktop SMT Reflow Oven solder welding
QP450+ automatic vision solder paste printer stencil printer machine screen printer machine
QH3040 high-precision manual stencil printer
TVM802B SMT pick and place machine 2heads 46slots desktop Pick&Place Machine standard edition
TVM802A SMT pick and place machine 2heads 29slots desktop Pick&Place Machine standard edition
WHAT IS SMT pick and place machine？
SMT (Surface Mounted Technology) is a comprehensive system engineering technology, which covers substrates, design, equipment, components, assembly processes, production accessories and management. When it comes to SMT pick and place machines, the automatic SMT production line requires automatic loading and unloading machine, automatic solder paste printing machine, placement machine, reflow soldering machine, AOI inspection equipment, connecting table, etc. For these SMT assembly line equipment, Qihe SMT can offer you machines in prototype SMT line, small SMT production line, mass production SMT line at low SMT line cost. Contact us now if you are interested.
WHAT IS SMT PROCESS？
There are mainly three steps in SMT assembly line process flow： solder paste printing, components placement and reflow soldering.
- Solder Paste Printing
Its function in SMT line process is to print the solder-free paste on the pads of the PCB to prepare for the soldering of the components. The equipment used is a screen printing machine, located at the forefront of the SMT production line.
- Components Placement
Its function is to accurately install the surface mount components on the fixed position of the PCB. The equipment used is a placement machine, located behind the screen printing machine in the SMT production line.
- Reflow Soldering
Its function in SMT manufacturing line is to melt the solder paste so that the surface mount components and the PCB board are firmly bonded together. The equipment used is a reflow oven, located behind the placement machine in the fully automatic SMT production line.
WHAT IS SMT ASSEMBLY LINE？
With the development of technology, future electronic products will be lighter, smaller and thinner. Traditional assembly technology can no longer meet the requirements of high-precision and high-density assembly. A new type of PCB assembly technology-SMT (Surface Mount Technology) has emerged. SMT Assembly is the use of automated machines to assemble electronic components on the surface of the circuit board. Its density, high speed, standardization and other characteristics occupies an absolute advantage in the field of circuit assembly technology. In addition, SMT assembly has a wide range of uses.
