Today we share a case from a long-term partner from Ho Chi Minh city，Vietnam.
They not only calibrating and setting up the device qihe smt equipment to customers .
But also help customers with after sales service.
Their company branches all over Vietnam.At the same time they also provides raw materials for smt production.And a variety of supporting testing equipment
The picture shows the small smt production line they configured for the customer .

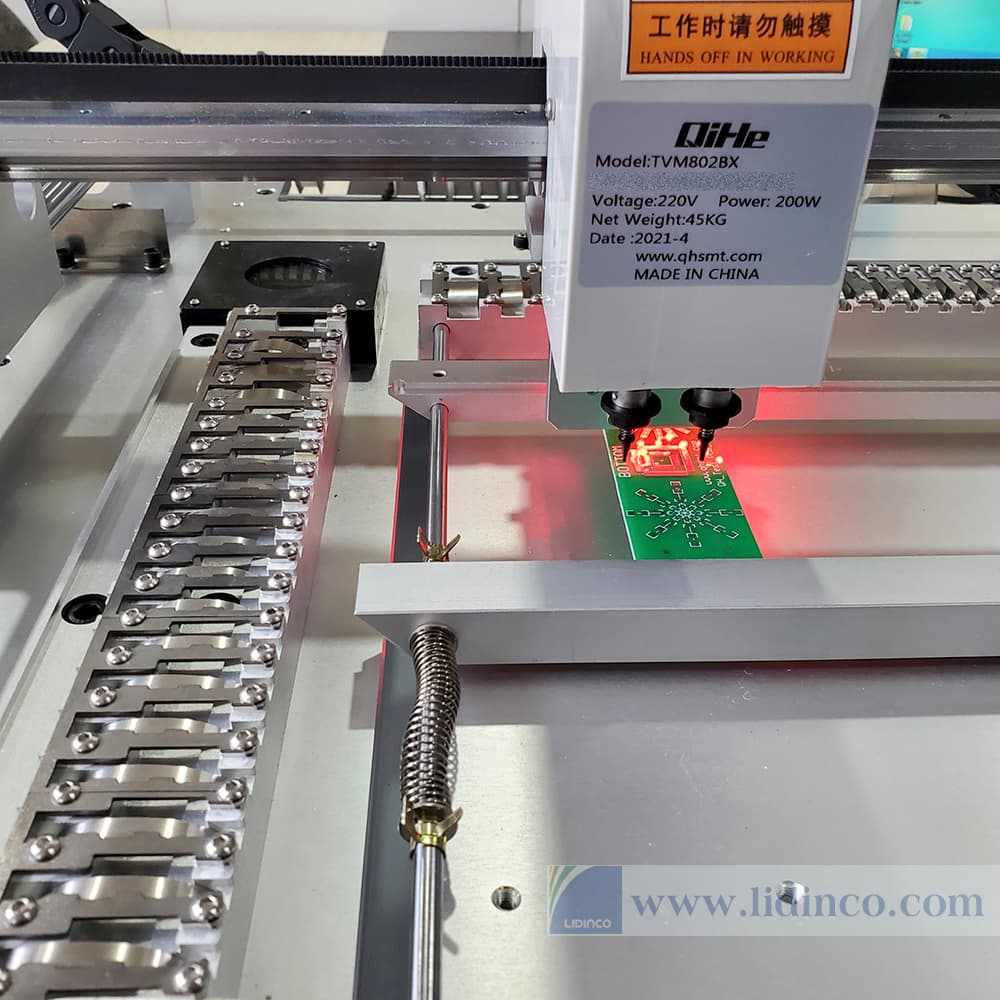

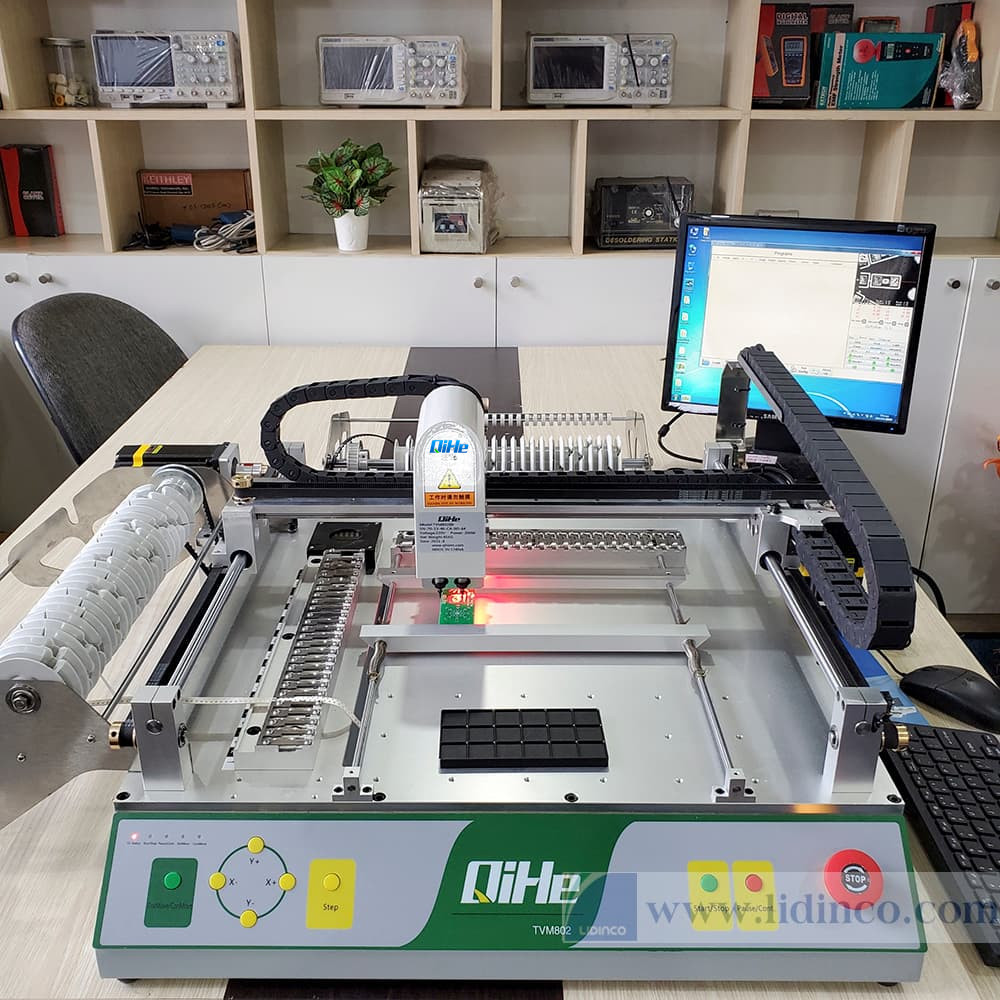

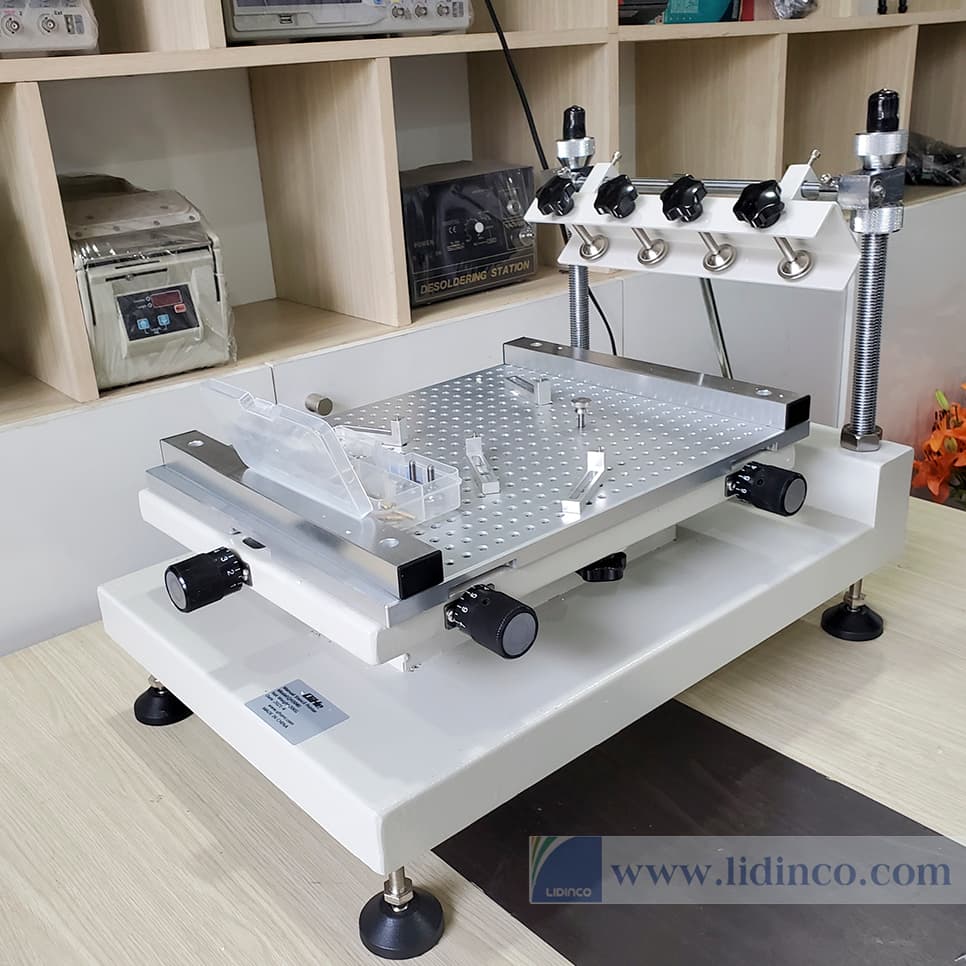

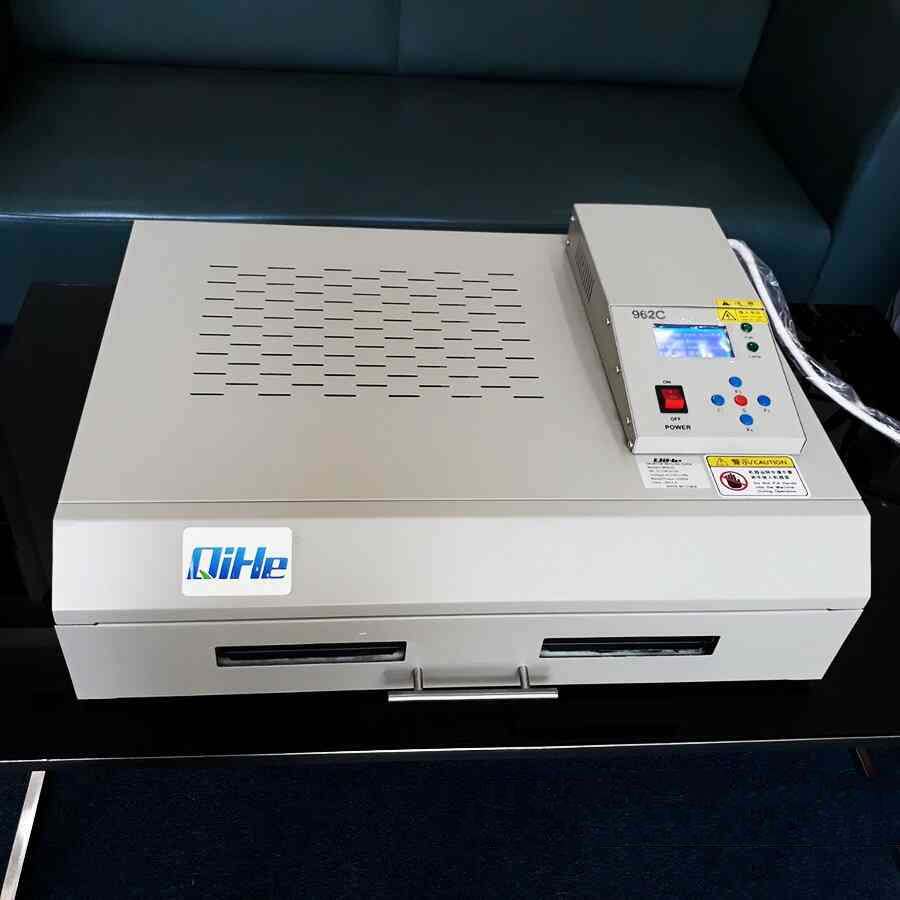

including smt pick and place machine TVM802BX ， desktop reflow oven QR962C, manual stencil printer QH3040.
you can also choose which smt pick and place machine model feets you and send us a inquiry. like tvm802a,tvm802b,tvm802ax,tvm802bx.tvm925s,tvm926s,qm61,qm81,qm10
QM10 SMT pick and place machine 10heads 80slots Fully Automatic Chip mounter SMT Assembly
TVM802BX SMT pick and place machine 2heads 46slots desktop pnp mounter deluxe edition
QL41 SMT pick and place machine 4heads 8slots LED for 1.2meters led strip pick&place machine
QM81 SMT pick and place machine 8heads 80slots Fully Automatic Chip mounter SMT Assembly
TVM802AX SMT pick and place machine 2heads 29slots desktop deluxe edition SMT Pick&Place Machine
QM61 SMT pick and place machine 6heads 63slots Fully Automatic Pick&place machine SMT Assembly chip mounter
TVM926S SMT pick and place machine 4heads 63slots With Rail Benchtop Pick&Place Machine
TVM925S SMT pick and place machine 4heads 50slots With Rail Benchtop SMT Pick&Place Machine
QM62 SMT pick and place machine 6heads 45slots Fully Automatic Pick&place machine SMT Assembly automatic chip mounter
WHAT IS SMT pick and place machine？
SMT (Surface Mounted Technology) is a comprehensive system engineering technology, which covers substrates, design, equipment, components, assembly processes, production accessories and management. When it comes to SMT pick and place machines, the automatic SMT production line requires automatic loading and unloading machine, automatic solder paste printing machine, placement machine, reflow soldering machine, AOI inspection equipment, connecting table, etc. For these SMT assembly line equipment, Qihe smt can offer you machines in prototype SMT line, small SMT production line, mass production SMT line at low SMT line cost. Contact us now if you are interested.
WHAT IS SMT ASSEMBLY LINE？
With the development of technology, future electronic products will be lighter, smaller and thinner. Traditional assembly technology can no longer meet the requirements of high-precision and high-density assembly. A new type of PCB assembly technology-SMT (Surface Mount Technology) has emerged. SMT Assembly is the use of automated machines to assemble electronic components on the surface of the circuit board. Its density, high speed, standardization and other characteristics occupies an absolute advantage in the field of circuit assembly technology. In addition, SMT assembly has a wide range of uses.
WHAT IS SMT PROCESS？
There are mainly three steps in SMT assembly line process flow： solder paste printing, components placement and reflow soldering.
- Solder Paste Printing
Its function in SMT line process is to print the solder-free paste on the pads of the PCB to prepare for the soldering of the components. The equipment used is a screen printing machine, located at the forefront of the SMT production line.
- Components Placement
Its function is to accurately install the surface mount components on the fixed position of the PCB. The equipment used is a placement machine, located behind the screen printing machine in the SMT production line.
- Reflow Soldering
Its function in SMT manufacturing line is to melt the solder paste so that the surface mount components and the PCB board are firmly bonded together. The equipment used is a reflow oven, located behind the placement machine in the fully automatic SMT production line.
