Let us discuss the questions that customers are often encountered when purchasing a smt pick and place machine (placement machine). About the smt air supply of pick&place machine. First of all, the current design of models with 4 heads or more requires an independent air pump for air supply. The demand standard of the air source, I will mention it in the following qihe pick and place machine customer case.

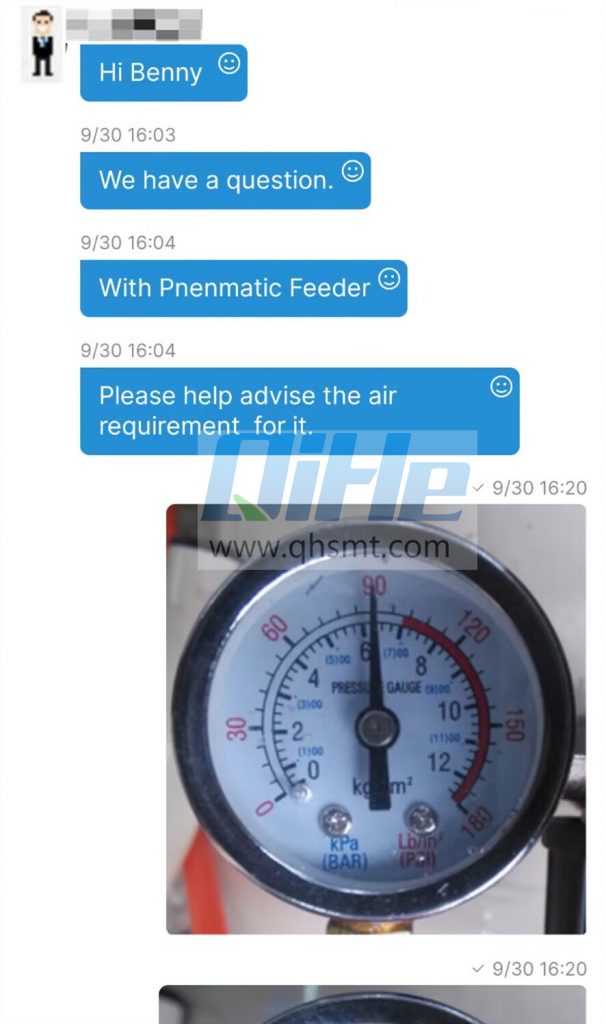

Some adivce about the air supply of the pnp machine such as qihe tvm925，img1 smt air supply air compressor for pick and place machine

external vacumm pump prepare for Pick and place machine
about external vacumm pump ：
When you get the machine, you need to prepare an air compressor

（1） Parameter requirements for air compressor:
a. Air tank capacity: greater than or equal to 55L
b. Exhaust volume: greater than or equal to 95L / min
c. Maximum pressure: greater than or equal to 0.7MPa (100psi)
d. air tube 10 mm

Some adivce about the air supply of the pnp machine such as qihe tvm925 img2

（2） Commissioning of air compressor;

  1. Start when the air compressor is adjusted to 6.2 Bar

6.2 bars approximately equal to 89.9psi

2. Stop when the air compressor is adjusted to 7.3 Bar

7.3 bars approximately equal to 105.8 psi

Some adivce about the air supply of the pnp machine such as qihe tvm925 img3

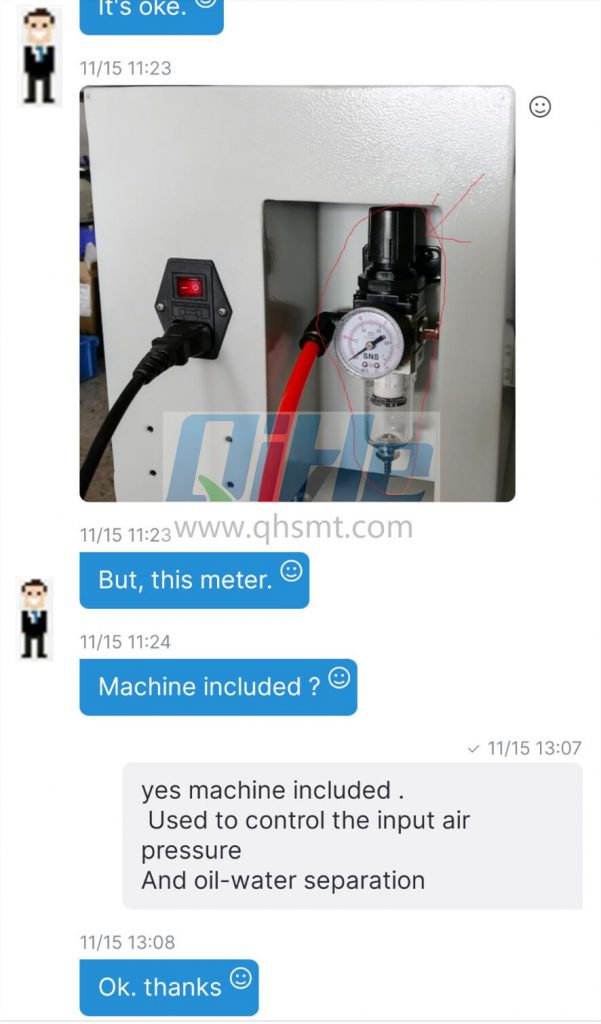

The oil-water separator is to further filter the compressed air output by the air pump. Because the humid air containing moisture will easily lead to the blowing of the placement head and the main cause of feeding failure of the feeder. Different models are fixed on different locations .

Some adivce about the air supply of the pnp machine such as qihe tvm925 img4
Some adivce about the air supply of the pnp machine such as qihe tvm925 img5

I hope this article can be helpful to everyone, and I hope you will support Qihe placement machine more
