During our electronic appearance equipment process,In order to improve efficiency and save cost,
It is necessary for smt machine operator to maintain various instruments and components regularly.If solenoid valves not working how pick and place machine works ?

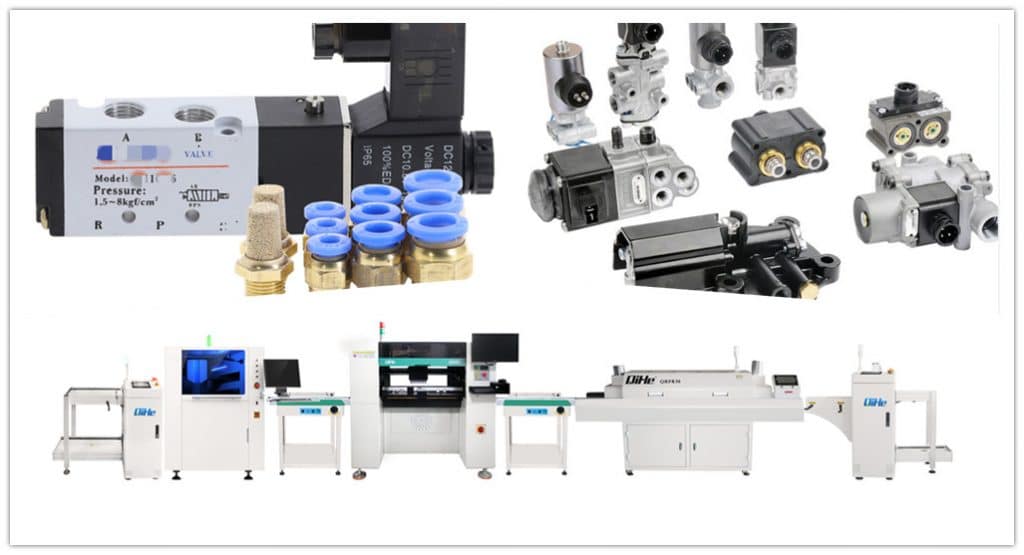

How to maintain the solenoid valve of SMT placement machine？
The following are the maintenance instructions for the solenoid valve of the SMT placement machine:
- When operating manually, first confirm the safety of the laying machine;
- Regularly drain the condensed water accumulated in the air filter.
- Reduce the use of solenoid valves.
Check the operation of the solenoid valve switch of the laying machine once a month,
to avoid its malfunction.
- When disassembling the placement machine,
Please install the equipment necessary to prevent the driven object from falling and not working properly.
After finishing the process, please cut off the air supply and power supply, and pay attention to the residual air pressure.
- The maintenance process of the placement machine should be carried out in accordance with the order of the operation manual as much as possible.
