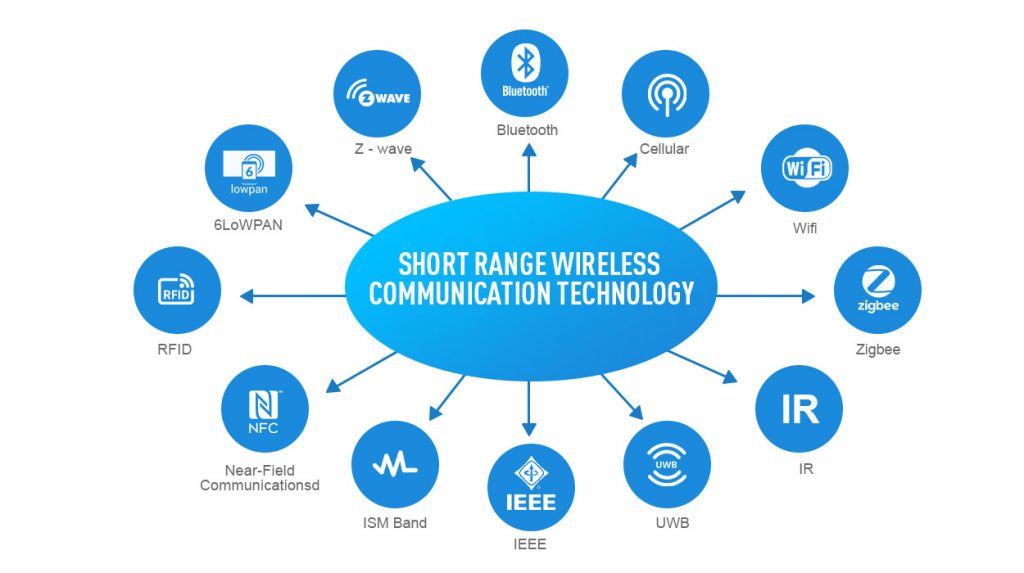

Wireless communication technology essentially uses wireless transmission media to achieve interconnection and interoperability between terminals. This wireless medium can be electromagnetic waves or light waves. In fact, according to the theory of quantum mechanics, light waves are also a kind of electromagnetic waves. The difference between them is The wavelengths are different. Today qihe smt pick and place machine sharing A brief summary of wireless communication technology.
With the transmission medium, the next step is encoding, that is, how to modulate the electromagnetic wave signal to represent the information we want to transmit. According to the characteristics of electromagnetic waves, information can be expressed by modulating the amplitude, frequency, phase, etc. of electromagnetic waves, which is our common amplitude modulation, frequency modulation, and phase modulation.
With encoding, the next step is communication. If there are only two communication terminals, then things are simple. For example, through amplitude modulation coding, an amplitude of 1 represents 1, and an amplitude of 0 represents 0. What if there are many communication terminals? Will the communications between them interfere with each other? I am very sure of that. what to do? This leads to coding methods for identifying the identity of communication terminals. Common ones include the following:
FDMA, translated into Chinese, is frequency division multiple access technology, which modulates radio waves into many frequencies that do not interfere with each other, and each frequency represents a communication line. To put it more professionally, the total bandwidth is divided into multiple orthogonal channels, and each user occupies one channel. For example, the frequency band allocated for wireless cellular phone communications is divided into 30 channels, each of which is capable of transmitting voice calls, digital services and digital data.
TDMA, translated into Chinese, is time division multiple access technology, which divides time into multiple cycles, and each cycle is divided into multiple time slots, in a cycle. Each time slot corresponds to the transmission information of a user, and different sources are distinguished according to the time slot. address of the user signal, thus completing the multiple access connection.
CDMA, translated into Chinese, is code division multiple access technology. The technical principle is based on spread spectrum technology, that is, the information data that needs to be transmitted with a certain signal bandwidth is modulated with a high-speed pseudo-random code with a bandwidth much larger than the signal bandwidth, so that the original data signal The bandwidth is expanded, then modulated by the carrier and sent out. The receiving end uses exactly the same pseudo-random code to perform correlation processing with the received bandwidth signal, and replaces the broadband signal with a narrowband signal of the original information data, that is, despreading, to achieve information communication.

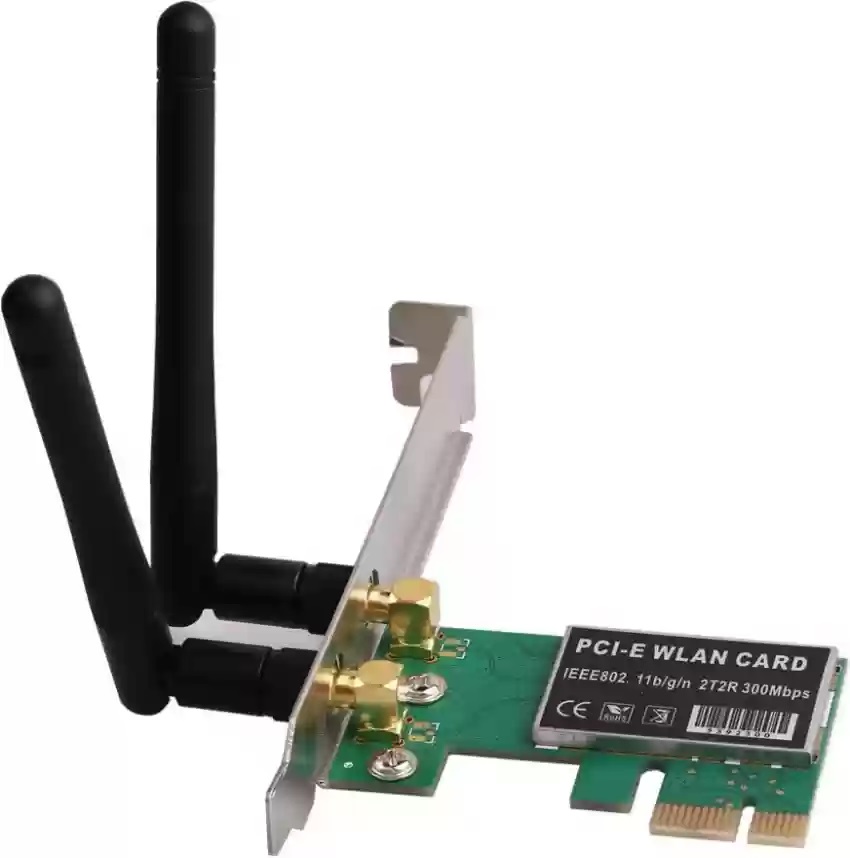

Wireless LAN technology. The three technologies of FDMA, TDMA, and CDMA can provide a dedicated connection for each communication channel. It can be understood that the medium is not shared, so it can ensure that long-distance communication is not interfered with, so it is mostly used for long-distance communication. Also using electromagnetic waves, the technology used in wireless LAN is CSMA/CA technology. Its working principle is:
(1) First detect whether the channel is in use. If the channel is detected to be busy, wait for a random period of time before sending data.
(2) If the receiving end receives the frame correctly, it will send a confirmation frame ACK to the sending end after a period of time.
(3) The sending end receives the ACK frame and confirms that the data is transmitted correctly. After a period of time, there will be an idle period.
It can be seen that the CSMA/CA technology used in wireless LAN shares the transmission medium. Two communication terminals compete for the transmission medium. If there are too many terminals, the transmission channel will be crowded, so it is not suitable for large-scale remote communication. Communication is only suitable for small-scale local communication. Because of this, we call the wireless communication network using CSMA/CA technology a wireless LAN.Read more: Wireless communication technology – an overview
Best seller SMT Machine ：Qihe smt line products
Q6 SMT pick and place machine 6heads 50slots With PCB Rail Servo Pick&Place Machine
Q4 SMT pick and place machine 4heads 50slots With PCB Rail Servo Pick&Place Machine
TVM802B Plus SMT pick and place machine 2heads 58slots desktop pick&place deluxe edition
QM10 SMT pick and place machine 10heads 80slots Fully Automatic Chip mounter SMT Assembly
TVM802BX SMT pick and place machine 2heads 46slots desktop pnp mounter deluxe edition
QL41 SMT pick and place machine 4heads 8slots LED for 1.2meters led strip pick&place machine
QM81 SMT pick and place machine 8heads 80slots Fully Automatic Chip mounter SMT Assembly
TVM802AX SMT pick and place machine 2heads 29slots desktop deluxe edition SMT Pick&Place Machine
QM61 SMT pick and place machine 6heads 63slots Fully Automatic Pick&place machine SMT Assembly chip mounter
What is SMT in engineering?
Surface mount technology is a part of the electronic assembly that deals with the mounting of electronic components to the surface of a PCB. Electronic components mounted this way are called surface-mounted devices (SMD). SMT was developed to minimize manufacturing costs while making efficient use of board space.Qihe SMT company develops and produces all kinds of SMT equipment suitable for world wide market, including pnp machine,reflow oven,stencil printer,pcb handling machines,and other products.
Small desktop pick and place machine TVM802A,TVM802B,TVM802AX,TVM802BX series suitable for beginners, for hobbiest or low vol usag.
Advanced level 4-head LED strip placement QL41 led machines and with rail universal series TVM925S,TVM926S,
Fully automatic 6-10-head placement QM61,QM62,QM81,QM10,machines, which are suitable for high volume mass production in factories.
What is SMT in programming?
Offline Automated Programming vs Inline SMT Programming
Qihe pick and place machine can be programmed directly on the SMT equipment .
Or Coordinates can also be imported csv file through programming software.
Currently supported software such as protel,DXP,Altium Designer,Pads,Candes,proteus,DXP.
Inline SMT programming is a solution to consider for narrow segments of device programming requiring short programming times, with medium to high volume, for just one device type.
WHAT IS SMT pick and place machine？

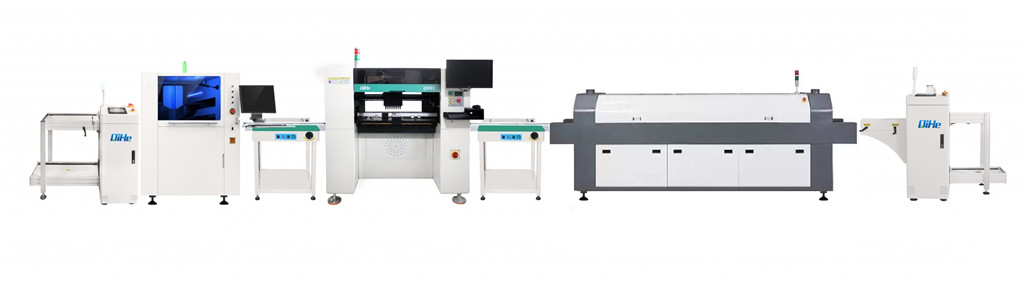

SMT (Surface Mounted Technology) is a comprehensive system engineering technology, which covers substrates, design, equipment, components, assembly processes, production accessories and management. When it comes to SMT pick and place machines, the automatic SMT production line requires automatic loading and unloading machine, automatic solder paste printing machine, placement machine, reflow soldering machine, AOI inspection equipment, conveyor,connecting table, etc. For these SMT assembly line equipment, Qihe SMT can offer you machines in prototype SMT line, small SMT production line, mass production SMT line at low SMT line cost. Contact us now if you are interested.
