QM81 fully-automatic SMT line applied to Smart wearable device prototyping PCBs and mass production part2

Today author from qihe smt pick and place machine sharing you with a customer case story .Technology research and development company.Smart wearable device R&D proofing and mass production

Device combination configuration

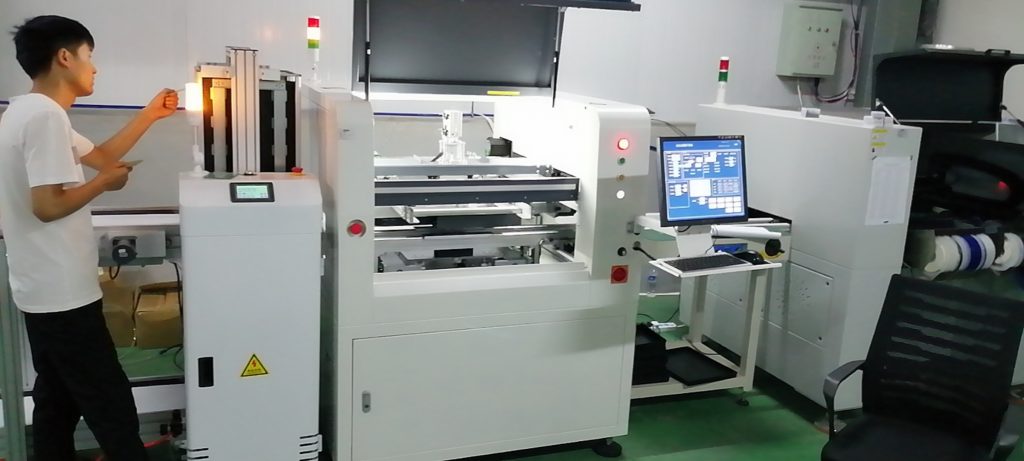

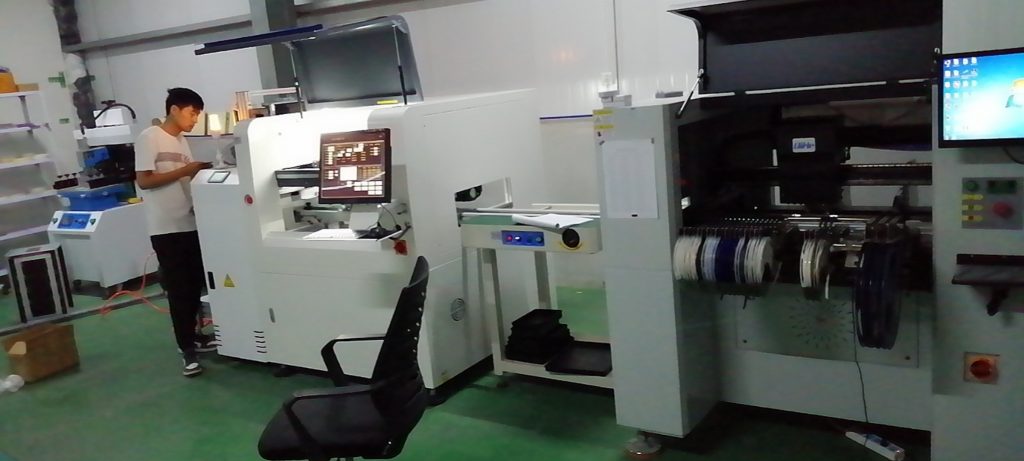

Pcb loader QUL350→fully-automatic stencil printer QFA5060→ SMT 1m Conveyor→#fully-automatic PNP machine QM81→#conveyor→#reflow oven 12 heating zoneQRF1230→ PCB unloader QDL350

QM81 fully-automatic SMT line applied to prototyping PCBs and LED lamps
QM81 #SMTline #pnp machine #automatic pick and place machine #stencil printer #reflow oven #pcb handling machines
smd chip shooter #pcb factory #smt equipment #pick and place machine for pcb assembly

Original link

qihe Smt pick and place machine QM81 PNP & Smart wearable device

qihe Smt pick and place machine QM81 PNP & Smart wearable device
Read more: QM81 fully-automatic SMT line applied to Smart wearable device prototyping PCBs and mass production part2

Qihe smt pick and place machine catalog

WHAT IS SMT pick and place machine?

SMT (Surface Mounted Technology) is a comprehensive system engineering technology, which covers substrates, design, equipment, components, assembly processes, production accessories and management. When it comes to SMT pick and place machines, the automatic SMT production line requires automatic loading and unloading machine, automatic solder paste printing machine, placement machine, reflow soldering machine, AOI inspection equipment, connecting table, etc. For these SMT assembly line equipment, Qihe SMT can offer you machines in prototype SMT line, small SMT production line, mass production SMT line at low SMT line cost. Contact us now if you are interested.

WHAT IS SMT ASSEMBLY LINE?

With the development of technology, future electronic products will be lighter, smaller and thinner. Traditional assembly technology can no longer meet the requirements of high-precision and high-density assembly. A new type of PCB assembly technology-SMT (Surface Mount Technology) has emerged. SMT Assembly is the use of automated machines to assemble electronic components on the surface of the circuit board. Its density, high speed, standardization and other characteristics occupies an absolute advantage in the field of circuit assembly technology. In addition, SMT assembly has a wide range of uses.

WHAT IS SMT PROCESS?

There are mainly three steps in SMT assembly line process flow: solder paste printing, components placement and reflow soldering.

  1. Solder Paste Printing

Its function in SMT line process is to print the solder-free paste on the pads of the PCB to prepare for the soldering of the components. The equipment used is a screen printing machine, located at the forefront of the SMT production line.

  1. Components Placement

Its function is to accurately install the surface mount components on the fixed position of the PCB. The equipment used is a placement machine, located behind the screen printing machine in the SMT production line.

  1. Reflow Soldering

Its function in SMT manufacturing line is to melt the solder paste so that the surface mount components and the PCB board are firmly bonded together. The equipment used is a reflow oven, located behind the placement machine in the fully automatic SMT production line.
