What is SMD insulation resistance testing?

Insulation resistance (IR) is a measurement of how good or bad your insulation is, which can help give you an overall assessment of your electrical equipment’s health. By the way, no insulation is perfect—with infinite resistance—but good insulation has a relatively high resistance to current.Today qihe smt pick and place machine sharing what is SMD insulation resistance testing?

Portable insulation resistance testers and megohmmeters are designed to help prevent hazards such as electric shock and short-circuits caused when the insulation in electrical devices, parts, and equipment used in industrial plants, buildings, and other settings degrades over long periods of use.

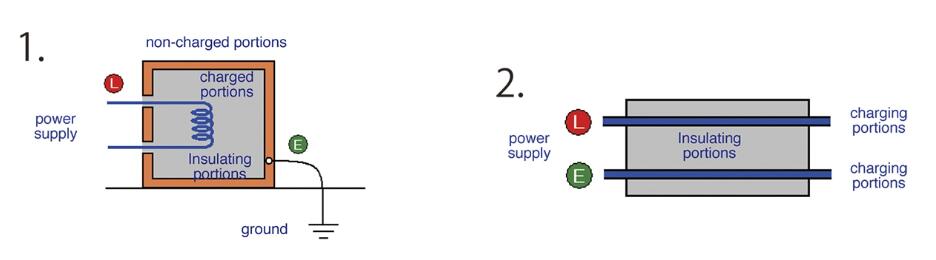

Degradation of the insulation between charged and non-charged portions of electrical devices and equipment utilizing the type of structure illustrated in Figure1 poses the risk of a ground fault or electric shock. Degradation of the insulation between two or more charged potions as shown in Figure 2 poses the risk of a short-circuit.

Higher insulation resistance values indicate more effective insulation.

Insulation Resistance Tester Product List
Insulation testers: Rated standard measurement voltage and example uses

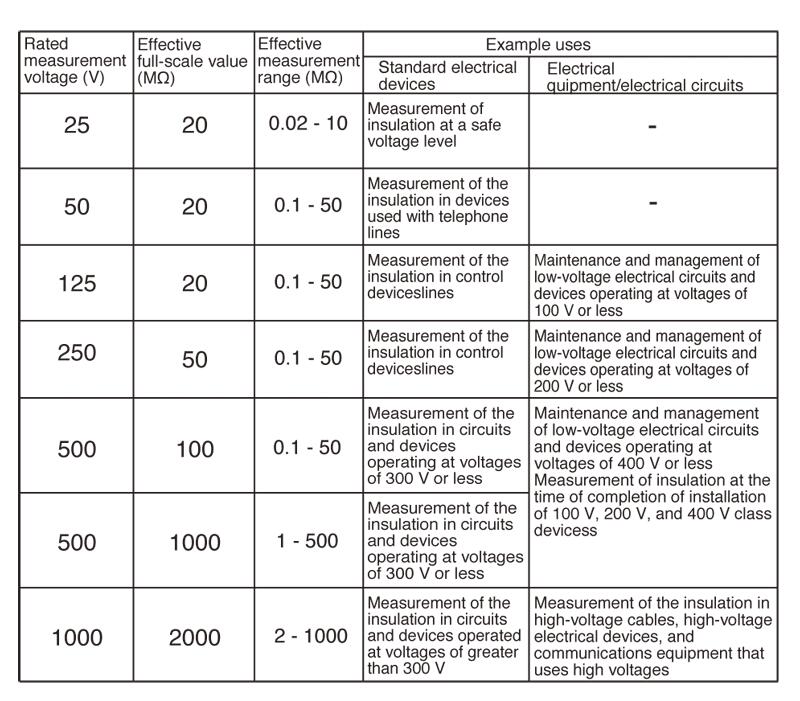

When using an insulation resistance tester to measure insulation resistance, Japanese standards* require certain voltage values to be applied by the instrument for certain measurement targets, as shown in the table.

It is necessary to select from the multiple application voltage values (rated measurement voltages) that are provided by the insulation resistance meter based on the target:

Single-range insulation testers: Insulation resistance meters that can only generate one rated measurement voltage

Multi-range insulation testers: Insulation resistance meters that can generate two or more rated measurement voltages

Since different insulation testers provide different combinations of rated measurement voltages, it is necessary to choose an instrument that provides the combination of values that is best suited to the application at hand.

*The table lists values from Japanese standards.
Please note that these values vary by country.

Read more: What is SMD insulation resistance testing?
