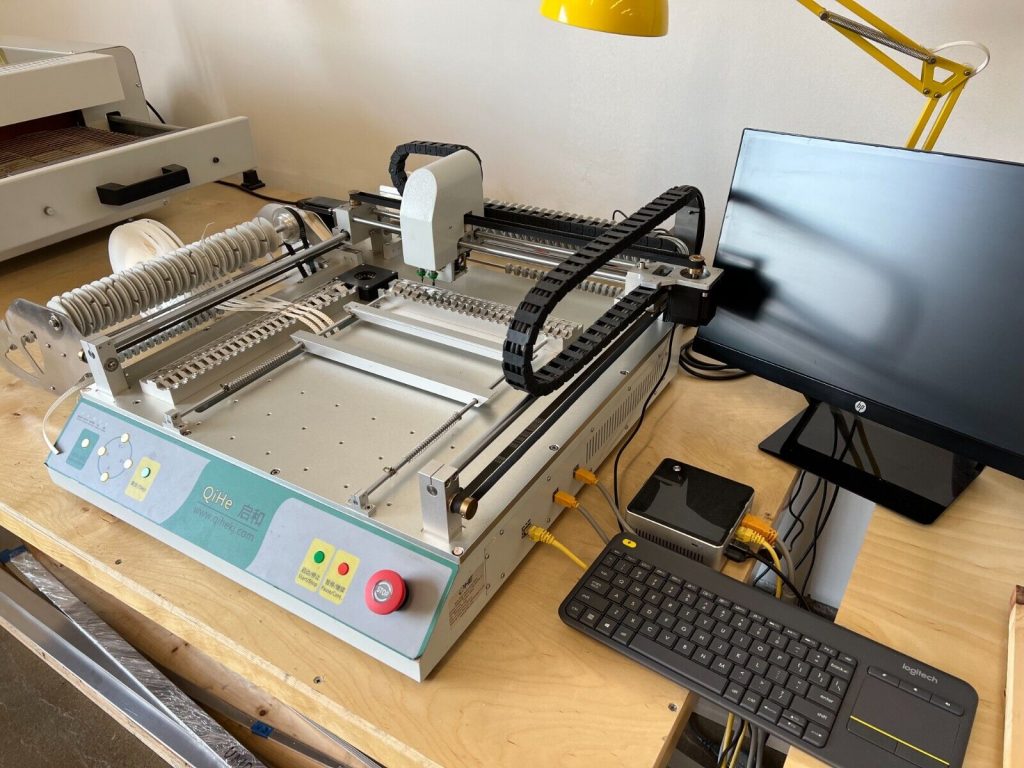

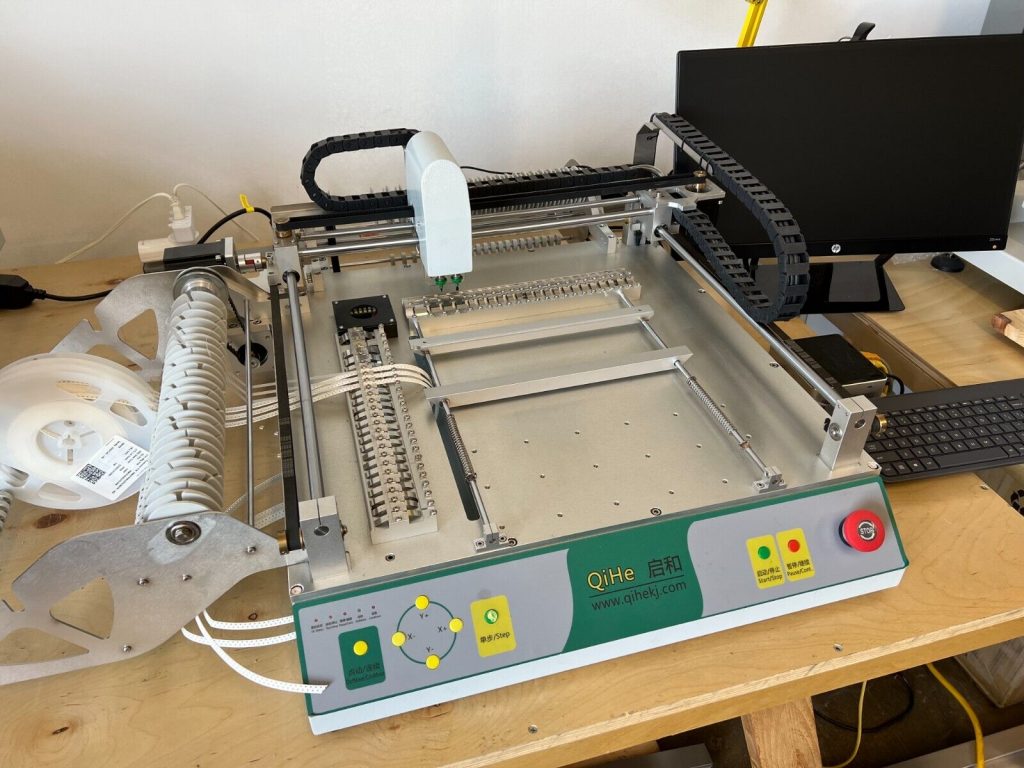

Today we are going to share a case from the client of a TVM802B automatic desktop smt pick and place machine with vision from Los Angeles.
He purchased a set of TVM802B automatic desktop pick and place machine with vision many years ago and it still working well.
This desktop PnP machine comes with 2 x 23 feeders installed (1 x 16mm, 3 x 8mm, 19 x 4mm in each bank). It has an up-facing camera for component alignment and a down-facing camera for fiducial marker homing. The moving head has two nozzles for even faster placement, a range of different size nozzles are included. The pick-and-place software is installed and working on the included Intel NUC 7 mini-pc by client and is intuitive and easy to use.
